Wiring guide and troubleshooting tips

Oct 23, 2026

Leave a message

1. The light stays on and cannot be switched off.

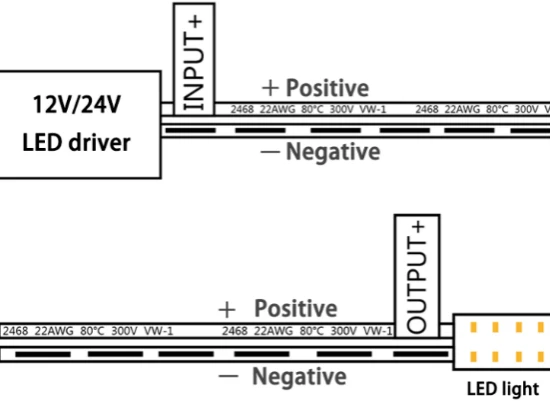

Solution: Ensure the wiring is correct. If wired incorrectly, the light will remain on. Connect the input to the LED driver and the output to the LED light. Make sure that the white wire marked with text is connected to the positive terminal (V+) and that the grey striped wire is connected to the negative terminal (V-). When testing a PIR sensor switch, make sure you are outside the sensor's range; otherwise, it will keep triggering the light.



2. Why won't the light come on?

Solution: The light will not come on if the positive and negative terminals are connected incorrectly or if the voltage does not match. Ensure the positive and negative terminals are connected correctly and that the voltage of the LED driver matches the LED light's voltage.
