Description

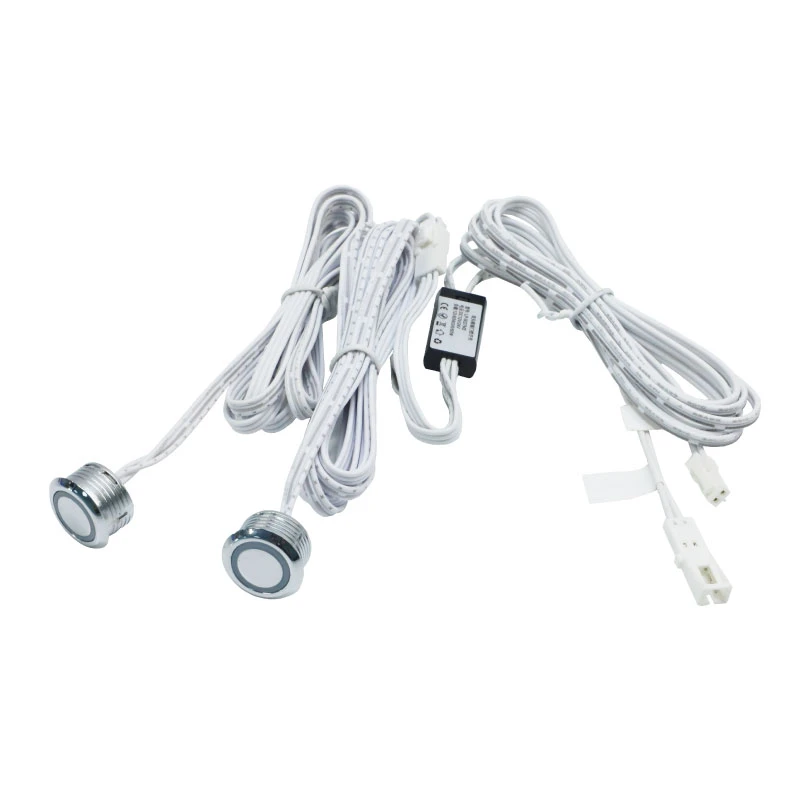

▶The LP-9026WT2 dual touch sensor switch is designed to control low-voltage LED strips, delivering stable performance and high sensitivity. It comes with two independent touch sensor heads. You can mount them at two different spots on your cabinet. Both touch heads control the same LED light strips.
▶Single tap to turn lights on; tap again to turn lights off. Long press the touch head to achieve stepless dimming with memory function. If you do not require the indicator light on the switch. When the lights are off, simply press the switch twice quickly to turn it off. This product is widely used for controlling the lighting of cabinets, wardrobes, wine cabinets and other furniture.
Parameters
|
Input/Output voltage |
DC 12-24V |
|
Power cable |
1.5m |
|
Load LED power |
12V≤60W/24V≤60W |
|
Sensor size |
11mm*Φ17mm |
|
Drilling size for embedded mounting |
17mm |
|
Function |
1: Press to turn the lights on or off 2: Long press to adjust the brightness |
|
Certification |
CE, RoHS |
|
Warranty |
3 Years |
|
Brand name |
Lampow |
|
Model |
LP-9026WT2 |
|
Place of origin |
Guangdong, China |

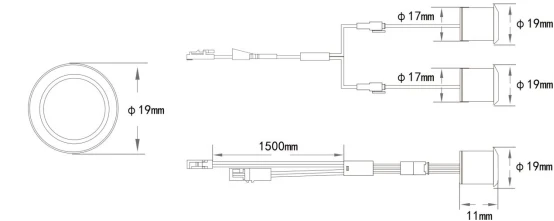

Size

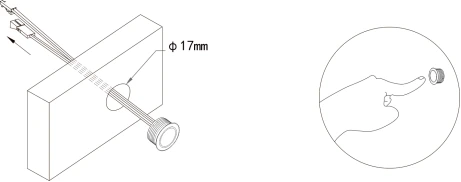

Installation
Usage instructions
1: Press to turn the lights on or off
2: Long press to adjust the brightness
3: Press twice quickly to turn off the indicator light

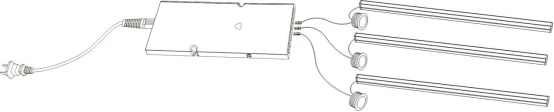

Wiring diagram
