Description

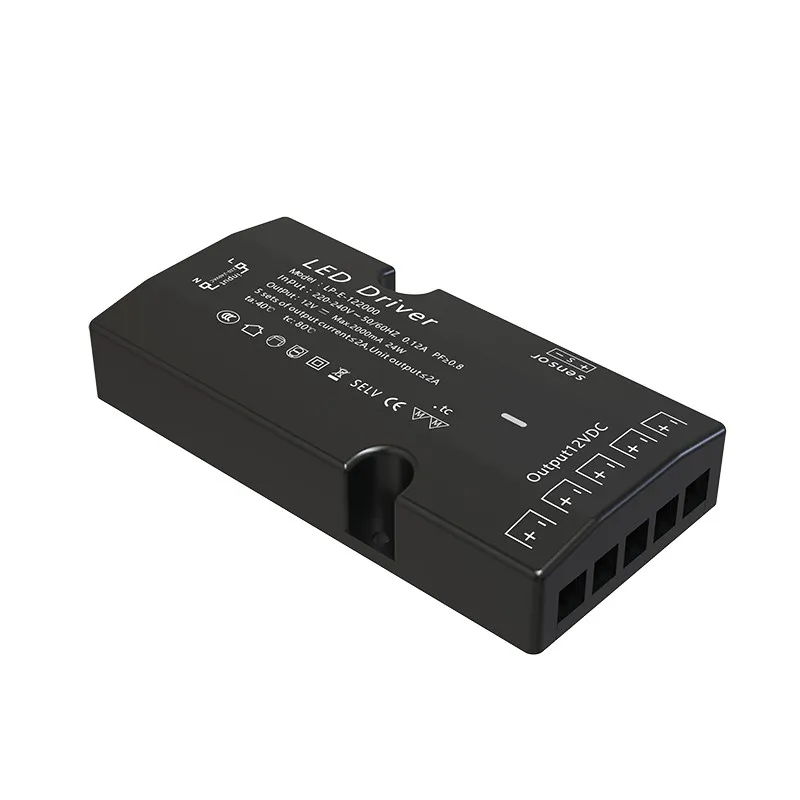

▶About this item - This DC12V, Max.2000mA, Max.24W LED driver is a constant voltage LED driver which is suitable for a wide range of low voltage LED lighting equipment.
▶Safety protection - Multiple protection against safety hazards such as short circuit(SCP)/ over current(OCP)/ over voltage(OVP)/ over temperature(OTP)/ overload(OLP).
▶Low heat output - By optimizing the circuitry and adding large-area heat sinks to reduce heat generation, the product achieves a longer service life.
▶Fireproof housing - The housing is made from high-quality fire-resistant materials. It meets the V0 fire safety standard.
▶Easy to install - Multiple DuPont output ports for easier wiring, suitable for a variety of applications, such as lighting control in cupboards, wardrobes, wine cabinets and other cabinet.
Parameters
|
Power |
24W |
|
Input voltage |
AC220V-240V 50/60Hz |
|
Output parameter |
DC12V Max.2000mA Max.24W |
|
Size |
105mm*52mm*19mm |
|
Power cable length |
1.5m |
|
Output port |
5 Separate control DuPont ports |
|
Certification |
CE,RoHS,EMC |
|
Warranty |
3 Years |
|
Brand name |
Lampow |
|
Model |
LP-E-122000 |

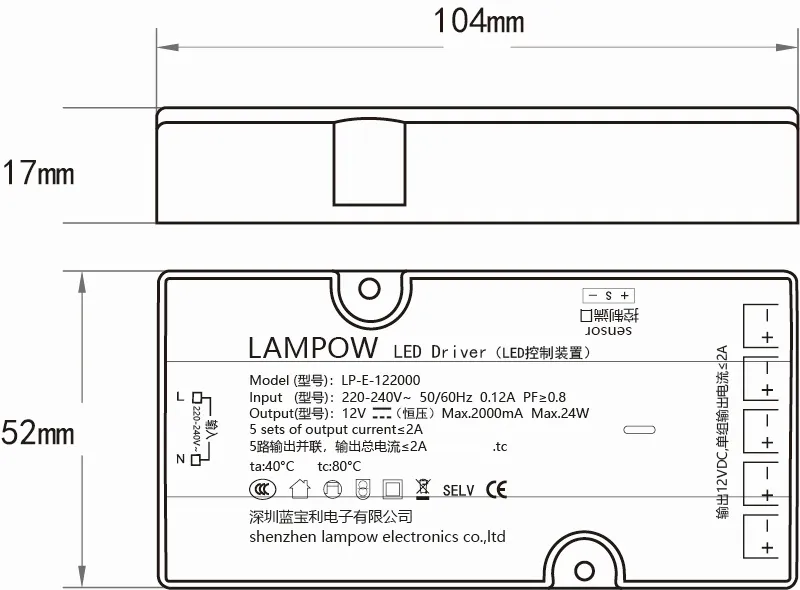

Size

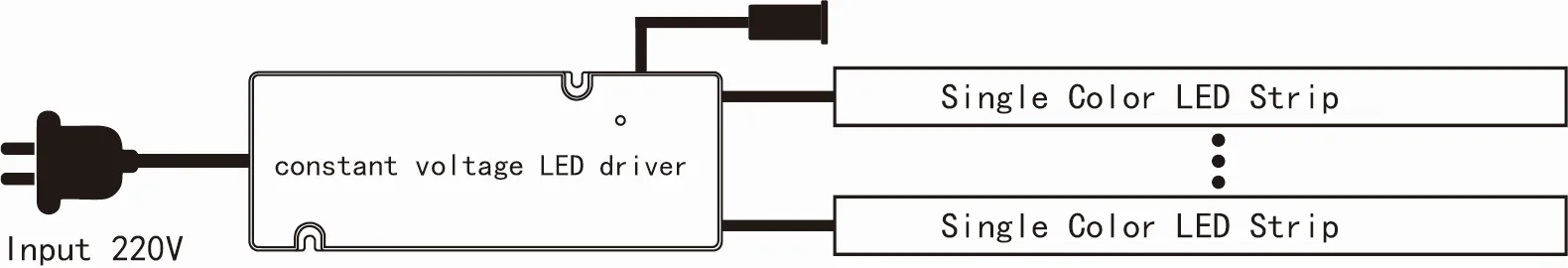

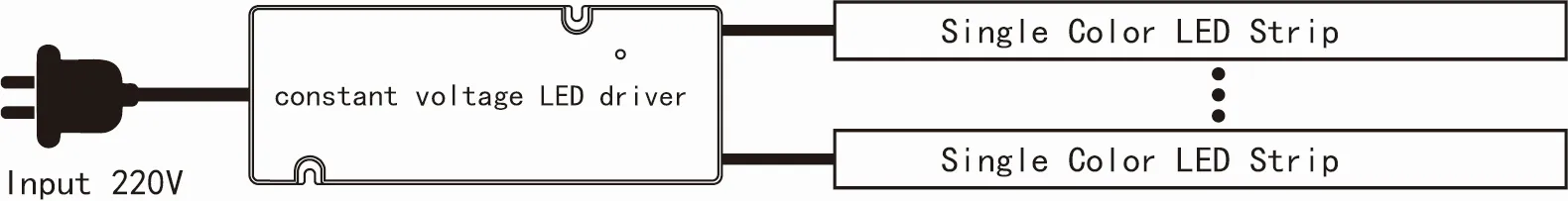

Wiring Diagram
Suitable for low-voltage 12V DC single-color LED strip lights.

This constant voltage 12V LED driver is also equipped with a centralized control port that can be connected to a centralized control switch; by controlling the LED driver via the sensor switch, it is possible to control multiple LED strips simultaneously.

*Please use it under professional electrician's guides.
