Description

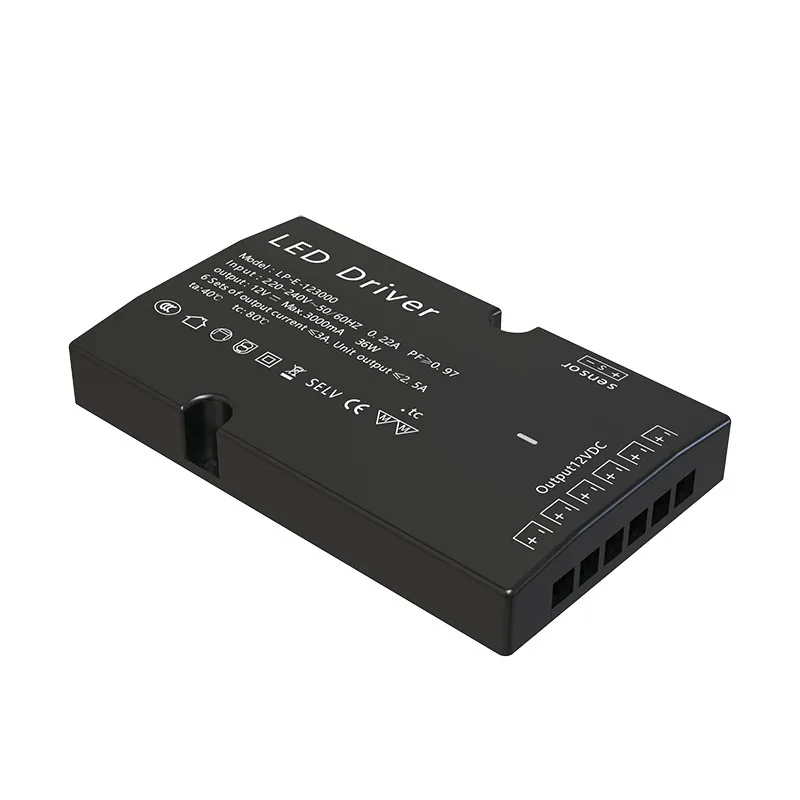

▶About this item - This 12V, Max.3A, 36W LED driver is a constant voltage LED driver, which is compatible with a wide range of constant voltage LED luminaires.
▶Protection - Multiple protection against safety hazards such as short circuit(SCP)/ over current(OCP)/ over voltage(OVP)/ over temperature(OTP)/ overload(OLP).
▶EMC certified - This product has passed EMC certification, emits low levels of electromagnetic radiation, and offers stable performance with excellent resistance to interference.
▶Strong stability - No loss of power even with long-term use. High efficiency reduces power consumption while delivering full performance.
▶Compact & easy to install - Lightweight and space-saving design allows seamless integration into any lighting setup. Widely used in closet, wardrobe, display cabinet, wine cabinet and other cabinet lighting control.
Parameters
|
Power |
36W |
|
Input voltage |
AC220V-240V 50/60Hz |
|
Output parameter |
DC12V 3A Max |
|
Size |
130mm*78mm*19mm |
|
Power cable length |
1.5m |
|
Output port |
6 Separate control DuPont Ports |
|
Certification |
CE, RoHS, EMC |
|
Warranty |
3 Years |
|
Brand name |
Lampow |
|
Model |
LP-E-123000 |

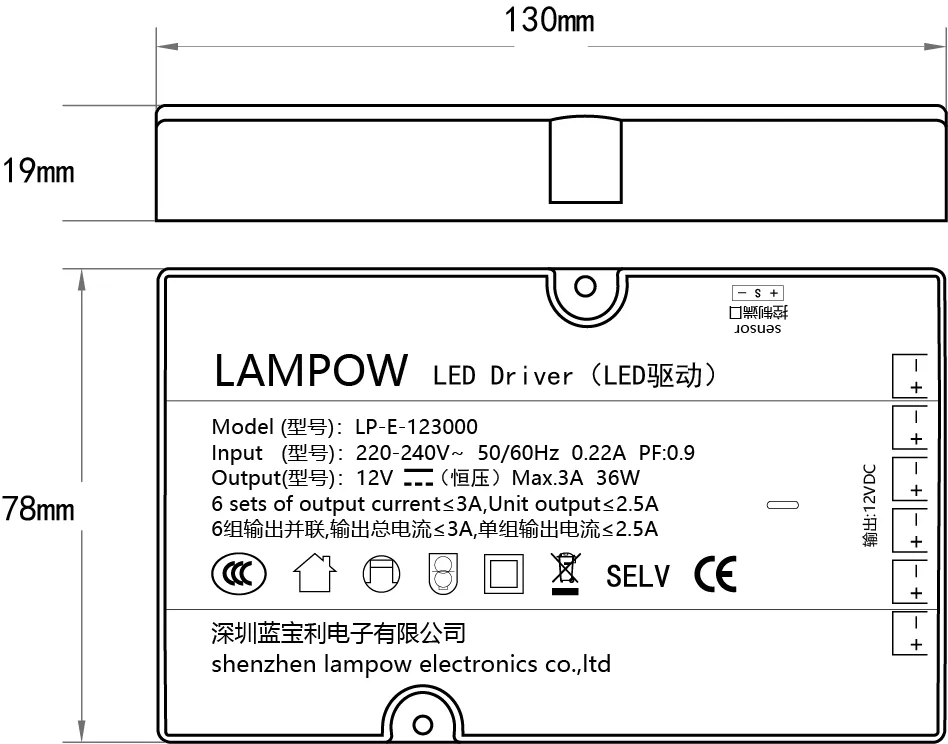

Size

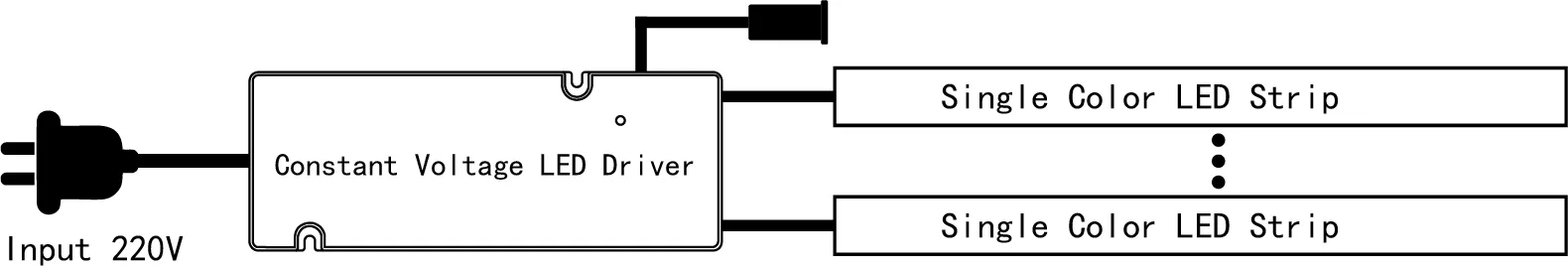

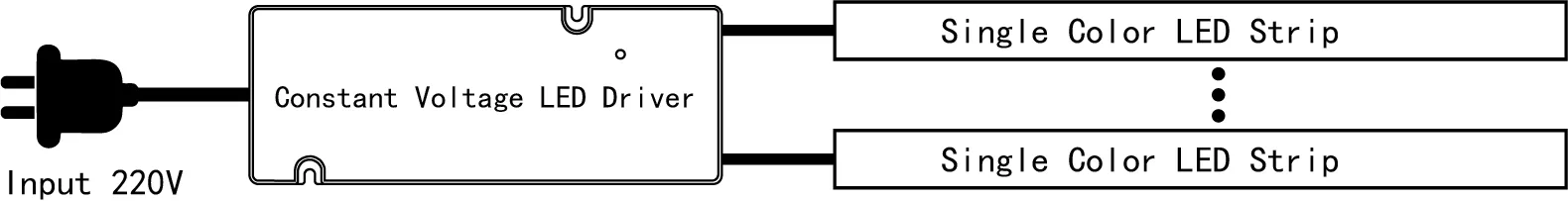

Wiring diagram
Suitable for low-voltage 12V DC single-color LED strip lights.
This constant voltage 12V LED driver is also equipped with a centralized control port that can be connected to a centralized control switch; by controlling the LED driver via the sensor switch, it is possible to control multiple LED strips simultaneously.
*Please use it under professional electrician's guides.
