Description
▶About this item - INPUT: AC220V-240V, 50/60Hz, 0.33A, OUTPUT: DC12V, Max.5A, 60W
▶Safety protection- Multiple protection against safety hazards such as short circuit(SCP)/ over current(OCP)/ over voltage(OVP)/ over temperature(OTP)/ overload(OLP).
▶Output ports - 8 DuPont ports and a DC12V, Max.5A high current output port for connecting high-power LED strips.
▶Compatible with dimmer switches - the dimmable function requires a dimmer switch and a dimmable LED light. Enjoy smooth dimming from 0 to 100% with no flicker. You can set the appropriate light level for any room, mood or time of day.
▶Full range of power ratings - This series offers LED drivers in versions of 12W, 24W, 36W, 60W and 100W.
Parameters
|
Power |
60W |
|
Input voltage |
AC220V-240V 50/60Hz |
|
Output parameter |
DC12V 5A Max |
|
Size |
172mm*78mm*19mm |
|
Power cable length |
1.5m |
|
Output port |
8 Separate control DuPont ports |
|
Certification |
CE, RoHS, EMC |
|
Warranty |
3 Years |
|
Brand name |
Lampow |
|
Model |
LP-E-125000 |

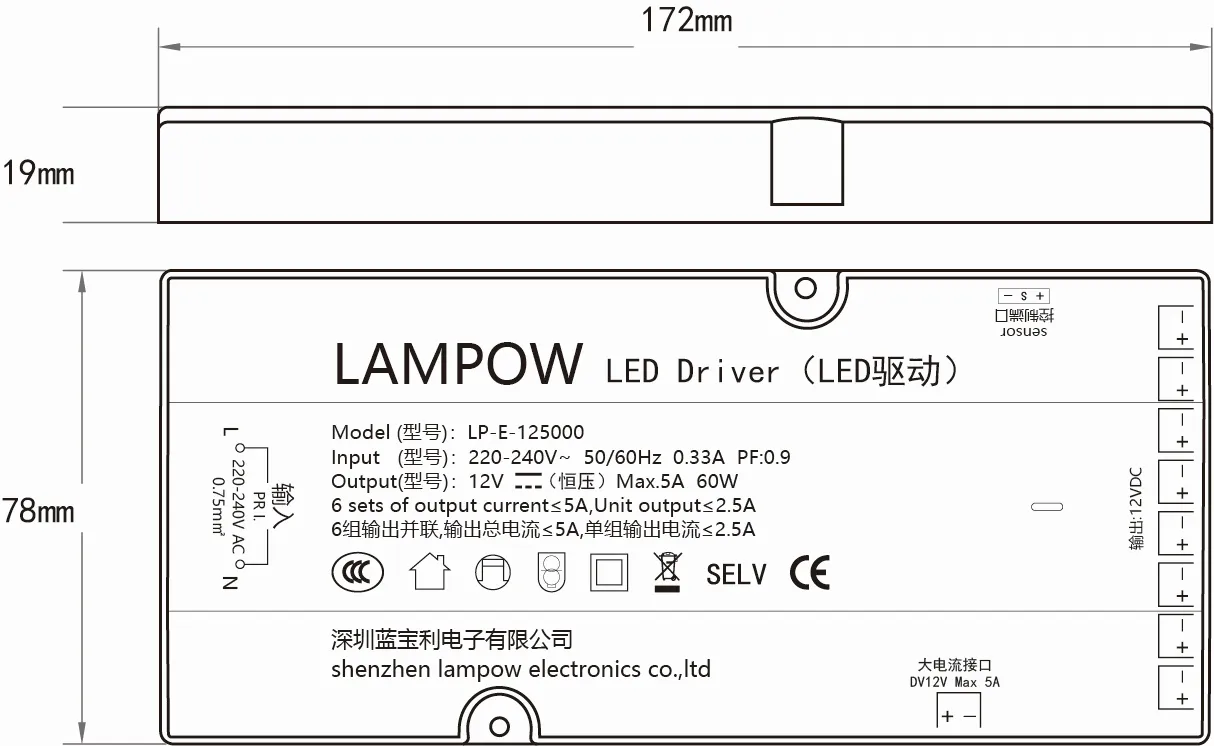

Size

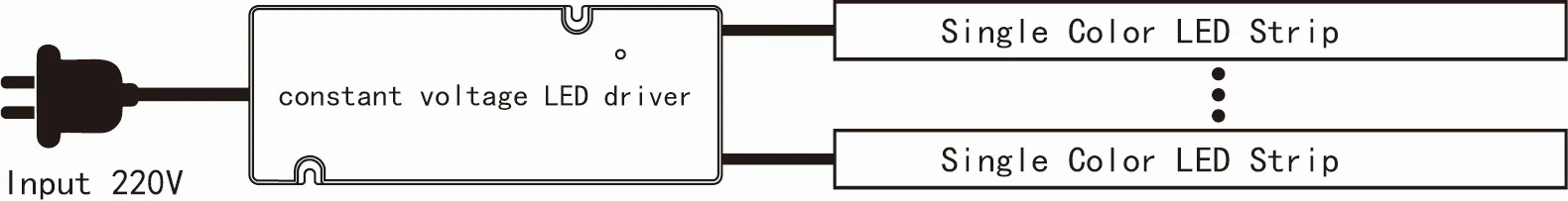

Wiring diagram
Suitable for low-voltage 12V DC single-color LED strip lights.

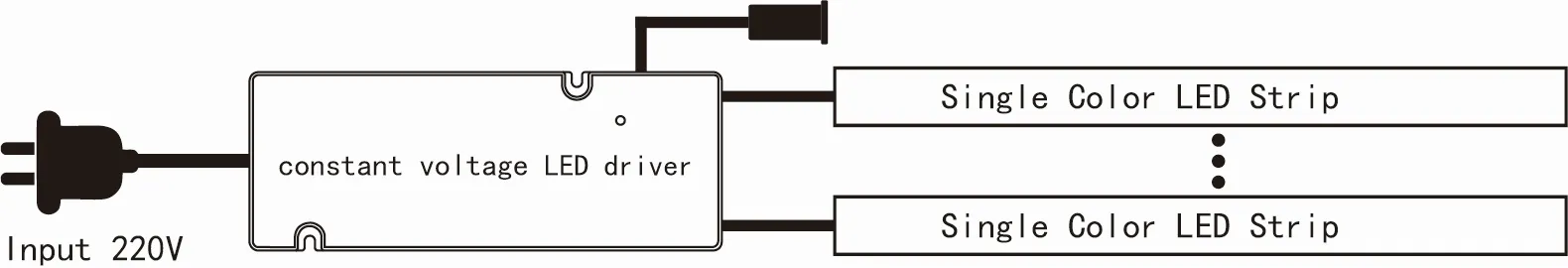

This constant voltage 12V LED driver is also equipped with a centralized control port that can be connected to a centralized control switch; by controlling the LED driver via the sensor switch, it is possible to control multiple LED strips simultaneously.
*Please use it under professional electrician's guides.
