Description
▶About this item - INPUT: AC220V-240V, 50/60Hz, 0.5A, OUTPUT: DC12V, 8.3A Max, 100W
▶Safety protection- This 12V LED driver comes with a short circuit, overload, over voltage, over current, and over temperature protection to keep your driver and project safe.
▶Output ports - 8 DuPont ports and a DC12V, Max.8.3A high current output port for connecting high-power LED strips.
▶Super Compatible - This constant voltage LED driver is ideal for a wide range of low-voltage LED lights and is widely used for closet, wardrobe and cabinet lighting control.
▶High quality - comes with CE, RoHS, EMC and SELV certificates, and has a long lifespan, is quiet and has low electromagnetic radiation.
Parameters
|
Power |
100W |
|
Input voltage |
AC220V-240V 50/60Hz |
|
Output parameter |
DC12V 8.3A Max |
|
Size |
237mm*78mm*19mm |
|
Power cable length |
1.5m |
|
Output port |
8 Separate control DuPont ports |
|
Certification |
CE,RoHS,EMC |
|
Warranty |
3 Years |
|
Brand name |
Lampow |
|
Model |
LP-E-128300 |

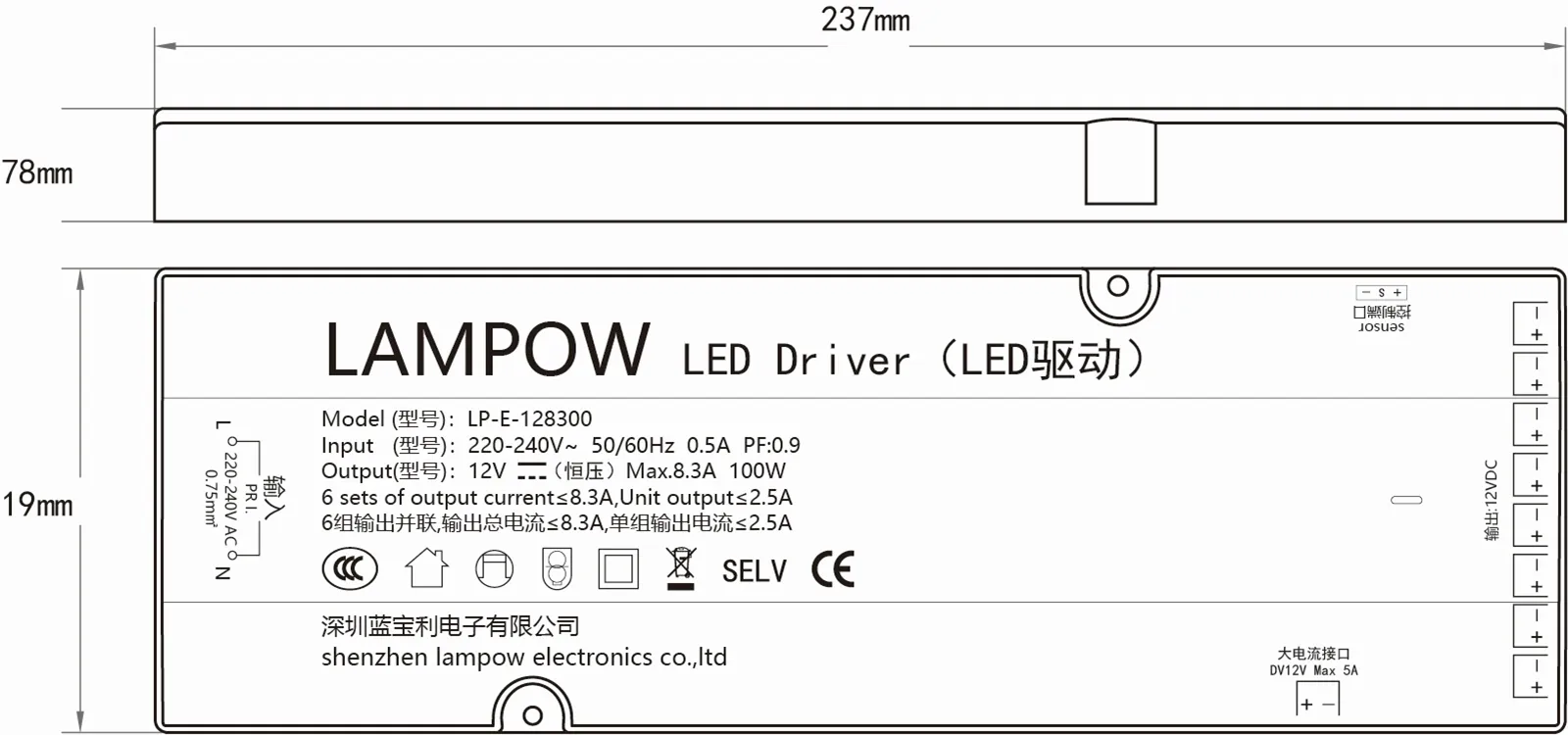

Size

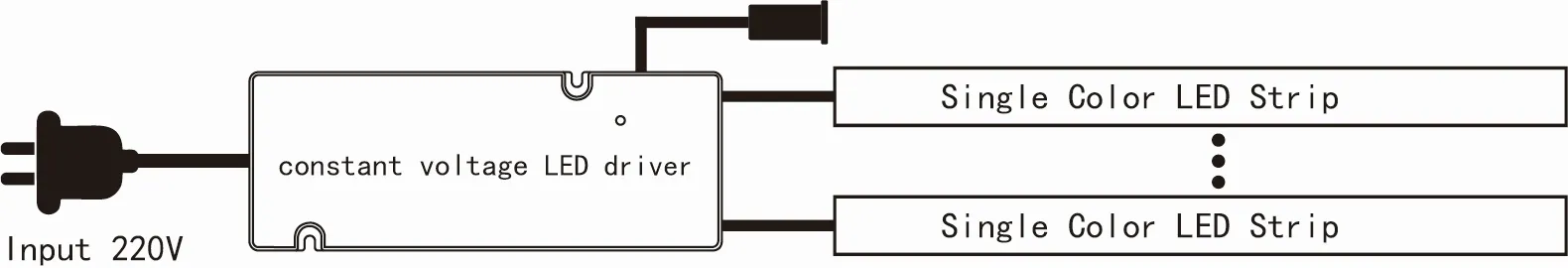

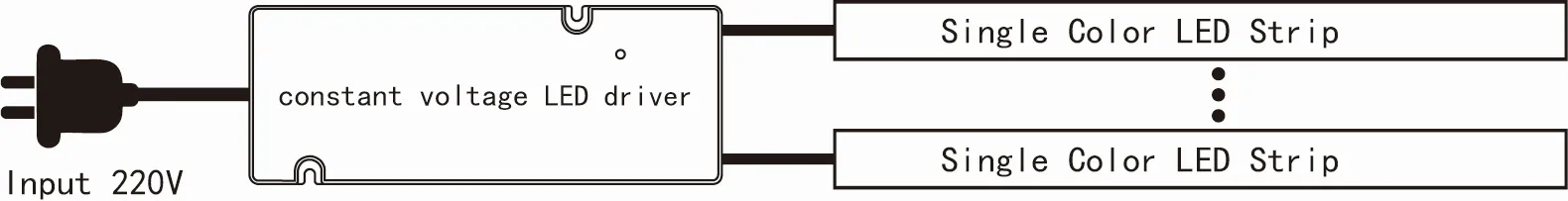

Wiring diagram
Suitable for low-voltage 12V DC single-color LED strip lights.
This constant voltage 12V LED driver is also equipped with a centralized control port that can be connected to a centralized control switch; by controlling the LED driver via the sensor switch, it is possible to control multiple LED strips simultaneously.
*Please use it under professional electrician's guides.
