Description
▶About this item - This 12V, Max.1A, 12W LED driver is a constant voltage LED driver designed specifically for LED lights.
▶Safety protection- Multiple protection against safety hazards such as short circuit(SCP)/ over current(OCP)/ over voltage(OVP)/ over temperature(OTP)/ overload(OLP).
▶Flicker-free - This product series utilizes a high-frequency bipolar LED driver solution.
▶Low ripple - This product series features low ripple, with output ripple kept within 200mv. Lower ripple helps minimize light decay in the LED strips and extends their service life.
▶High PF - This product achieving a power factor (PF) of 97% at full load, which means that 97% of the electrical energy is effectively utilized, thereby delivering energy savings.
Parameters
|
Power |
12W |
|
Input voltage |
AC220V-240V 50/60Hz |
|
Output parameter |
DC12V 1A Max |
|
Size |
105mm*52mm*19mm |
|
Power cable length |
1.5m |
|
Output port |
5 Separate control DuPont ports |
|
Certification |
CE, RoHS, EMC |
|
Warranty |
3 Years |
|
Brand name |
Lampow |
|
Model |
LP-E-121000 |

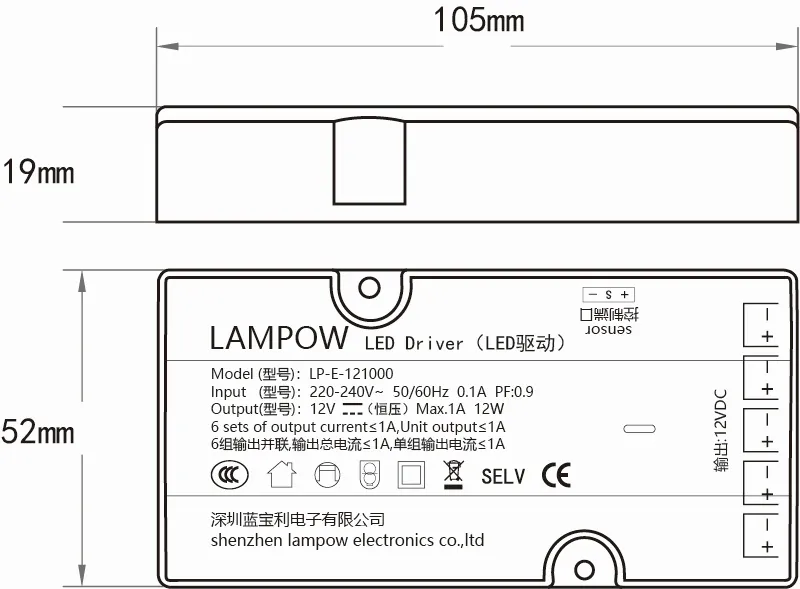

Size

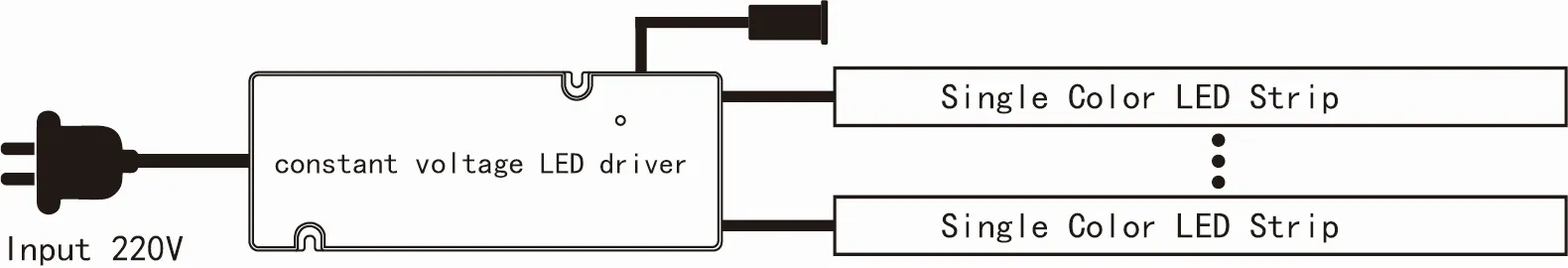

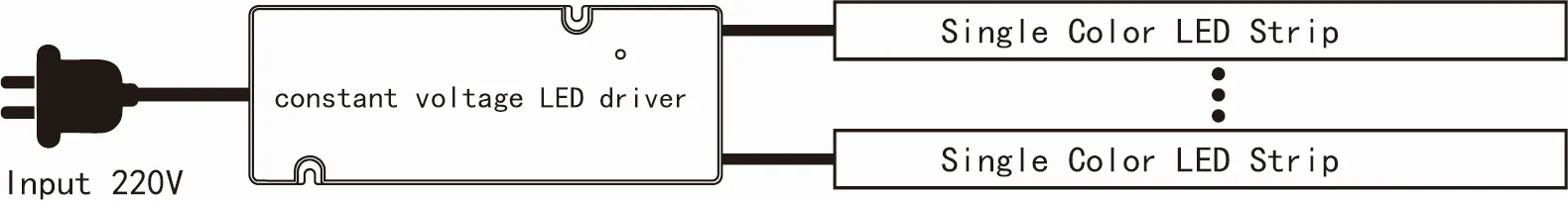

Wiring Diagram
Suitable for low-voltage 12V DC single-color LED strip lights.
This constant voltage 12V LED driver is also equipped with a centralized control port that can be connected to a centralized control switch; by controlling the LED driver via the sensor switch, it is possible to control multiple LED strips simultaneously.
*Please use it under professional electrician's guides.
