Description
▶About this item - This infrared hand sweep sensor switch is a low-voltage switch that operates at 12V or 24V DC. It controls the switching on and off of lights by recognising hand-waving gestures. Wave your hand within 8 cm of the sensor and the light will turn on; wave your hand again and it will turn off.

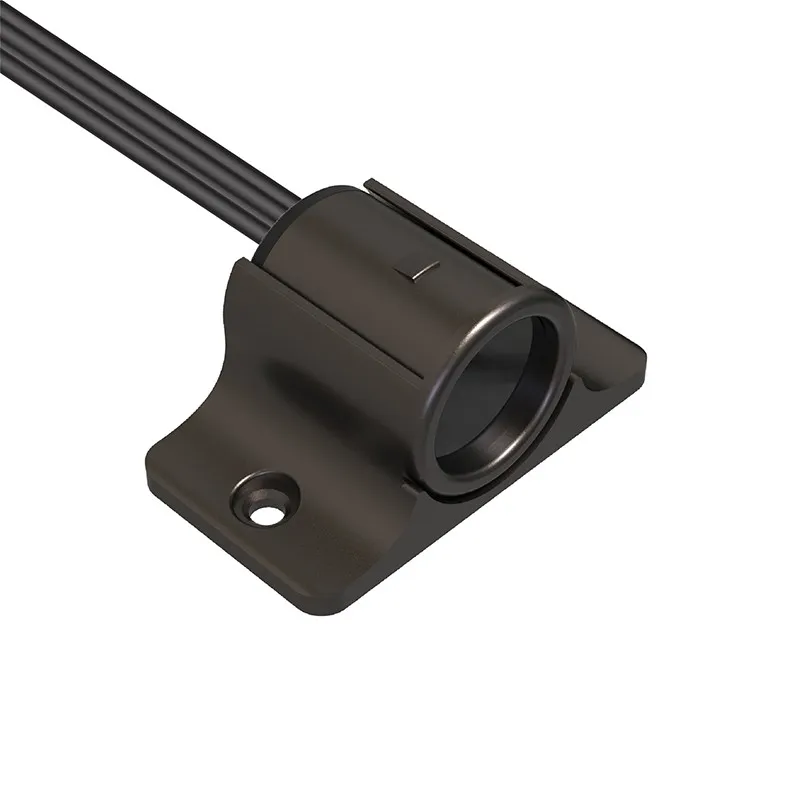

▶12mm mini size - With an ultra-small 12mm diameter, it can fit into narrow panels. Surface mounting is also available. We provide a base and screws for installation.
▶CE and RoHS certified - This hand wave sensor switch is CE and RoHS certified. We also provide a 3-years warranty.
▶Wide application - This hand sweep sensor switch is compatible with DC 12-24V low-voltage LED lighting and can be used in a variety of places, such as cabinets, wardrobes and closets.
Parameters
|
Control mode |
Separate control |
|
Input/Output voltage |
DC 12-24V |
|
Power cable |
1.5m |
|
Load LED power |
12V≤60W/24V≤60W |
|
Sensor size |
12mm*15.5mm |
|
Drilling size for embedded mounting |
12mm |
|
Bracket size for surface mounting |
15.5mm*27mm*14.5mm |
|
Sensing distance |
0-8cm |
|
Function |
Wave your hand to control the light on/off |
|
Certification |
CE,RoHS |
|
Warranty |
3 Years |
|
Brand name |
Lampow |
|
Model |
LP-5028MINI-T |

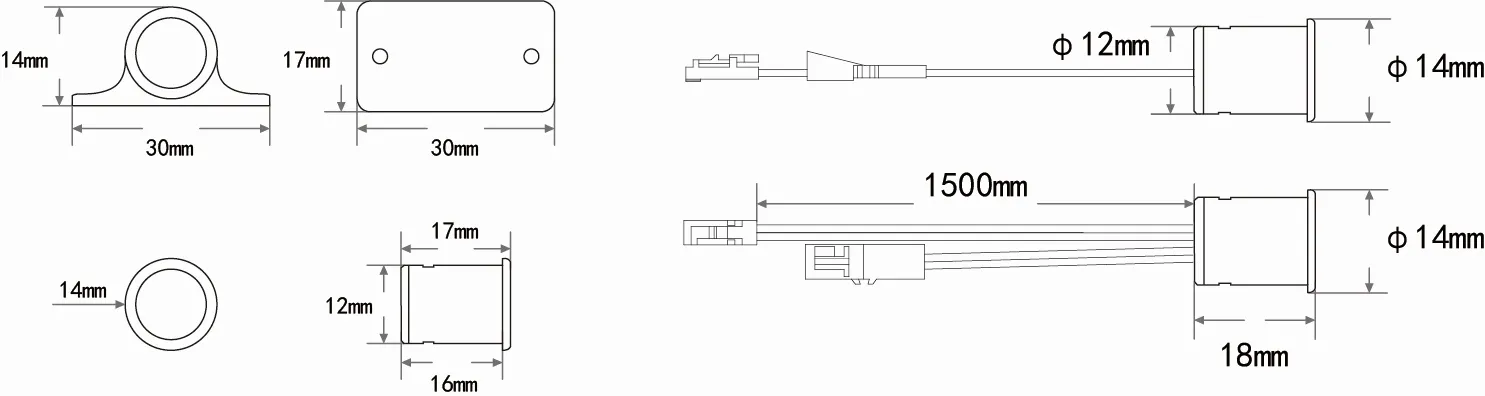

Size

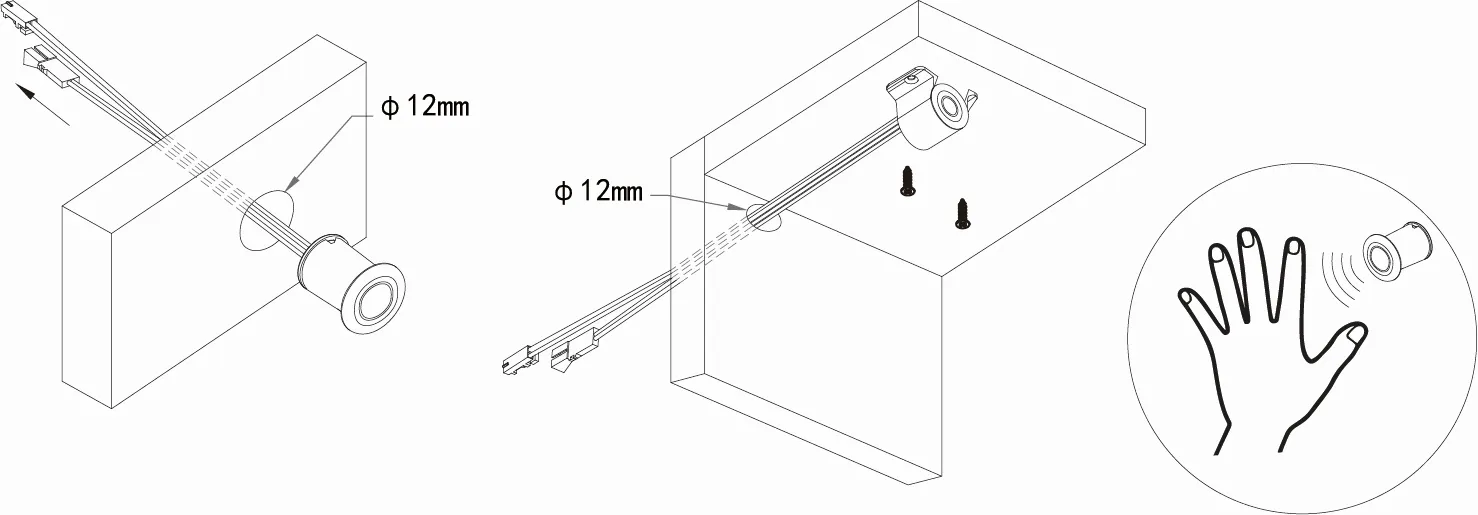

Installation

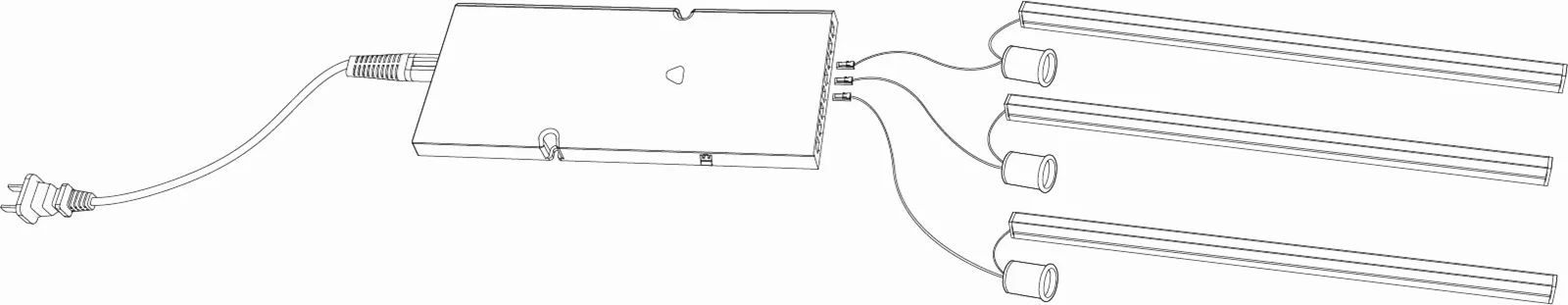

Wiring diagram
