Description
▶About this item - The touch sensor switch is a low-voltage switch that operates at 12V or 24V DC. It has a maximum output current of 5A and a maximum output power of 60W. This switch uses capacitive sensing to provide touch control and dimming functions for lighting equipment. Short touch to turn the light on or off/press and hold to adjust the brightness.
▶Last-brightness memory function - It has a memory function. When you turn the light on again, it will automatically be the same brightness as last time.
▶12mm mini size - With an ultra-small 12mm diameter, it can fit into narrow panels. Surface mounting is also available.
▶Wide application range - Compatible with DC 12-24V low-voltage LED lighting systems, this sensor switch is widely used for lighting control in cabinets, wardrobes, wine cabinets, and so on.
Parameters
|
Control mode |
Separate control |
|
Input/Output voltage |
DC 12-24V |
|
Power cable |
1.5m |
|
Load LED power |
12V≤60W/24V≤60W |
|
Sensor size |
12mm*15.5mm |
|
Drilling size for embedded mounting |
12mm |
|
Bracket size for surface mounting |
17mm*30mm*14mm |
|
Function |
Short press to control the light to gradually brighten or dim; long press for stepless dimming |
|
Certification |
CE, RoHS |
|
Warranty |
3 Years |
|
Brand name |
Lampow |
|
Model |
LP-9028MINI |

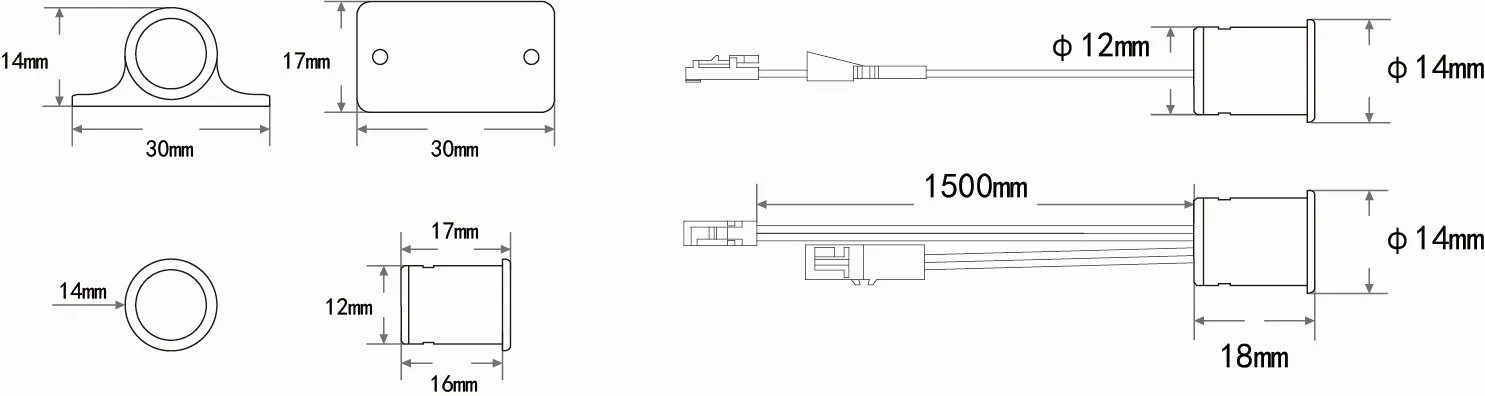

Size

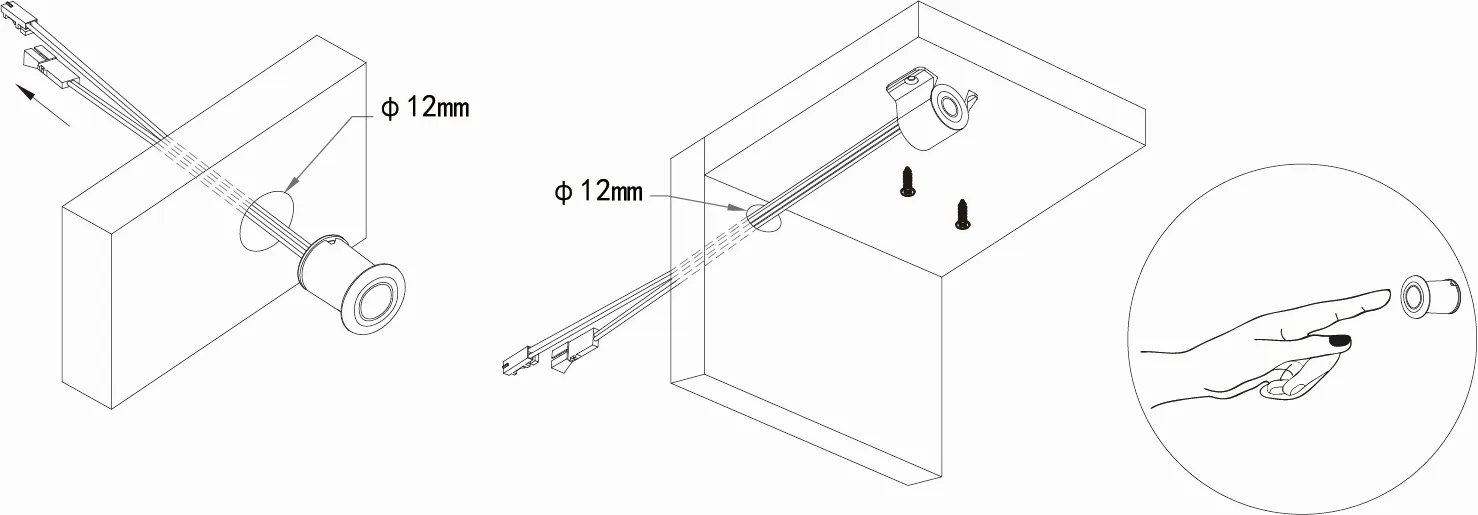

Installation

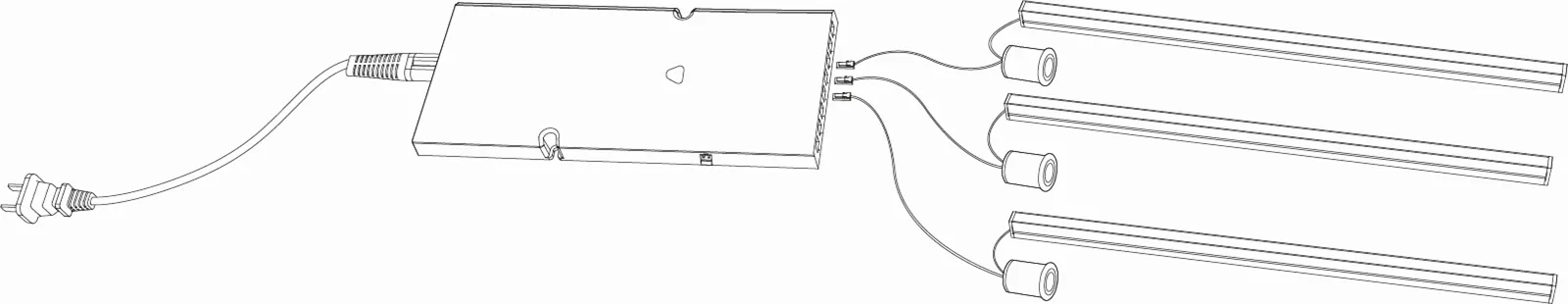

Wiring diagram
