Hidden PIR Motion Sensor Switch

Hidden PIR Motion Sensor Switch

Details
▶About this item - The hidden PIR (Passive Infrared) sensor switch is designed for automatic lighting control while remaining virtually invisible. It automatically turns the lights on when someone enters the detection range and off after a 35-second delay time when no human movement is detected.
▶Easy Installation - It can be installed behind non-metallic materials such as wood panels, glass and acrylic(thickness≤25 mm). This stick-on design comes with a double-sided adhesive tape, so you can install it quickly without drilling or welding.
Category
Wired Sensor Switch
Share to
Send Inquiry
Description
Technical Parameters

Description



▶About this item - The hidden PIR (Passive Infrared) sensor switch is designed for automatic lighting control while remaining virtually invisible. It automatically turns the lights on when someone enters the detection range and off after a 35-second delay time when no human movement is detected.



▶Easy Installation - It can be installed behind non-metallic materials such as wood panels, glass and acrylic(thickness≤25 mm). This stick-on design comes with a double-sided adhesive tape, so you can install it quickly without drilling or welding.



▶Energy saving - Automatically turn the lights off when people leave, reducing energy consumption and helping extend the lifespan of LED lights.



▶Wide application - This hidden PIR sensor switch is compatible with DC 12-24V low-voltage LED lamps and can be used in a variety of places you want, such as cabinets, wardrobes and closets.



Parameters



Control mode

Separate control

Input/Output voltage

DC 12-24V

Power cable

1.5m

Load LED power

12V≤60W/24V≤60W

Sensor size

48mm*48mm*6mm

Sensing distance

0-3m

Delay time

35s

Detecting angle

120°

Function

Control the light comes on when people come and goes off when people leave

Certification

CE,RoHS

Warranty

3 Years

Brand name

Lampow

Model

LP-2022

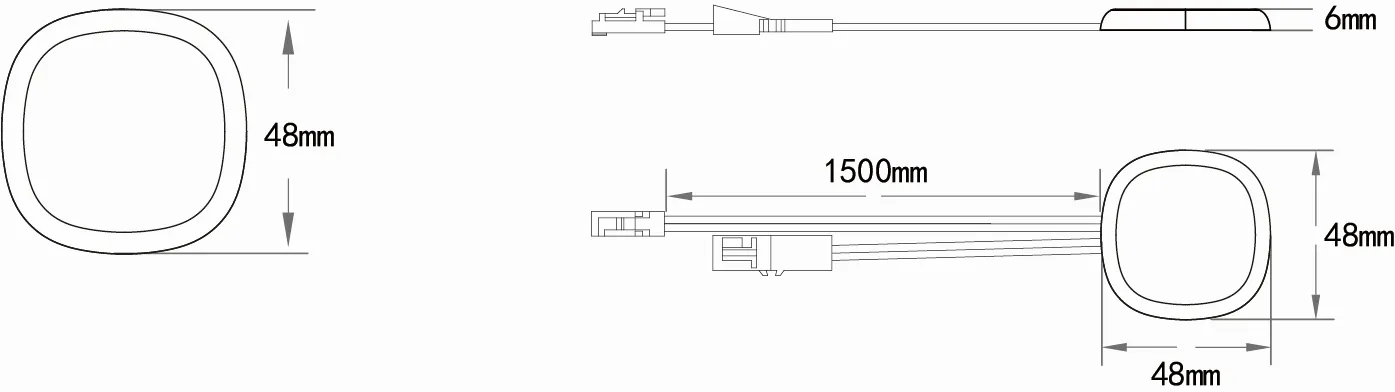

Size



65

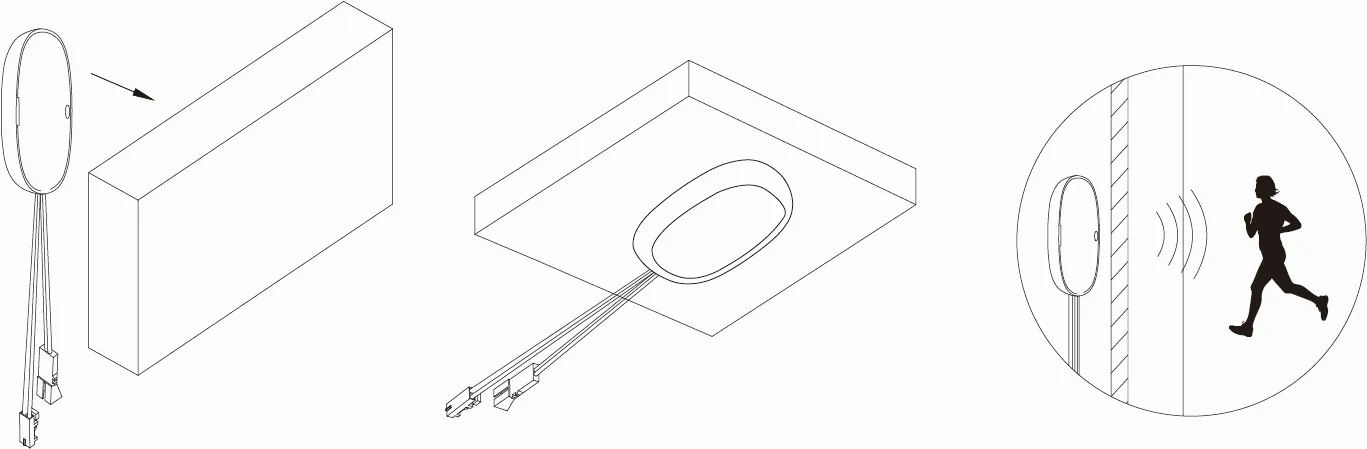

Installation



66

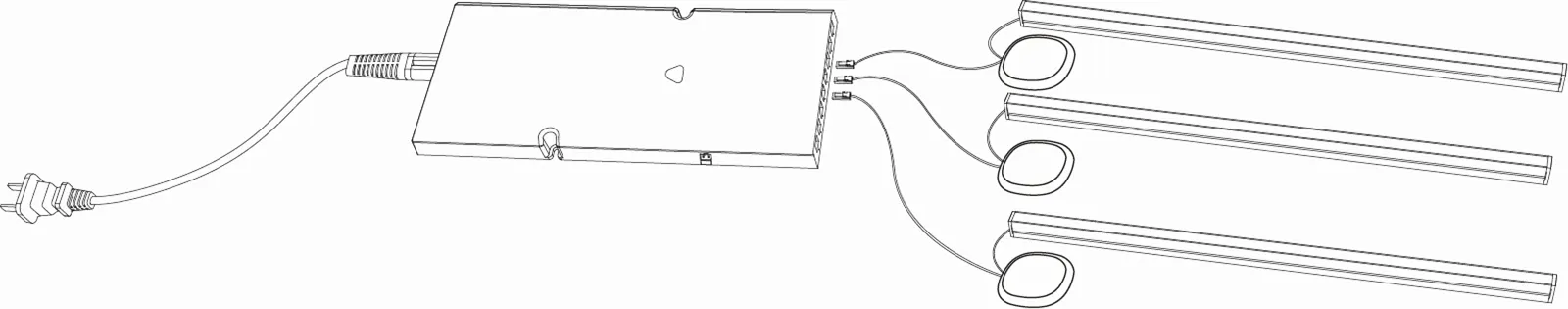

Wiring diagram



67
