Description
▶About this item - The built-in infrared sensor automatically turns the lights on when the door opens and off when it closes, providing a hands-free experience and smarter lighting. It has a maximum output current of 5A and a maximum output power of 60W.
▶Ultra-compact 8mm design - With a slim 8mm diameter, this sensor switch is perfect for concealed installation, maintaining a clean and seamless cabinet appearance.
▶Energy-saving performance - Automatically turns the lights off when the door is closed, reducing energy consumption and helping extend the lifespan of LED lights.
▶Reliable and fast response - Made with high-quality electronic components, ensuring stable performance, high sensitivity, and quick response with strong anti-interference capability.
▶Wide application compatibility - Ideal for kitchen cabinets, wardrobes, closets, display cases, wine cabinets, and more; suitable for DC 12-24V low-voltage LED lighting systems and cabinet illumination setups.
Parameters
|
Control mode |
Separate control |
|
Input/Output voltage |
DC 12-24V |
|
Power cable |
1.5m |
|
Load LED power |
12V≤60W/24V≤60W |
|
Sensor size |
12mm*φ8mm |
|
Drilling size for embedded mounting |
8mm |
|
Bracket size for surface mounting |
25mm*14mm*11mm |
|
Sensing distance |
0-8cm |
|
Function |
Control the light on/off by opening and closing door |
|
Certification |
CE,RoHS |
|
Warranty |
3 Years |
|
Brand name |
Lampow |
|
Model |
LP-5029M |

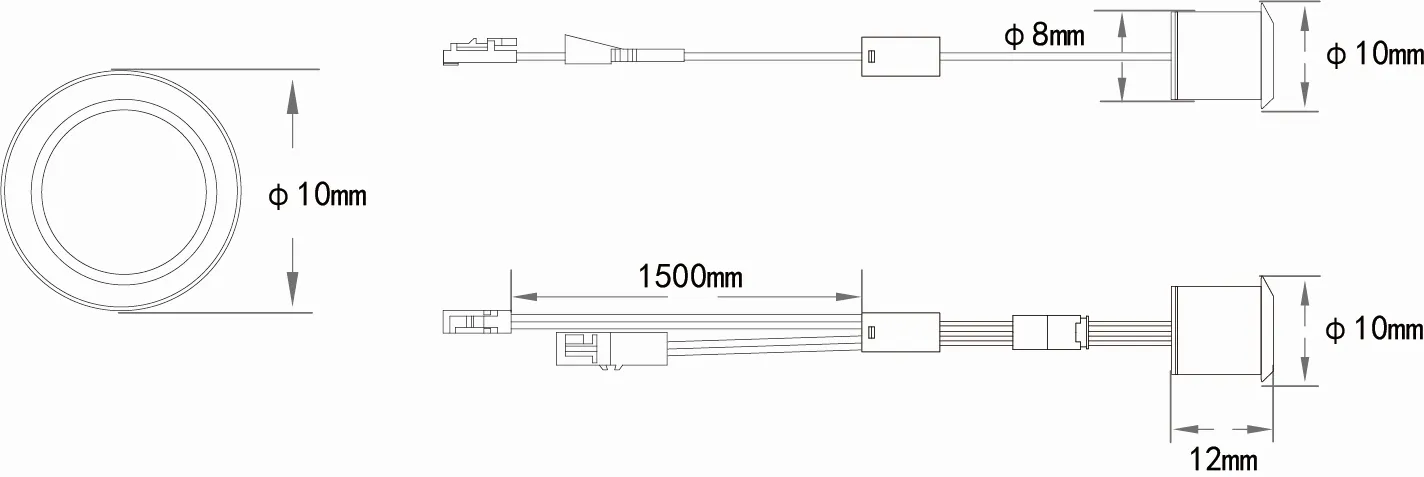

Size

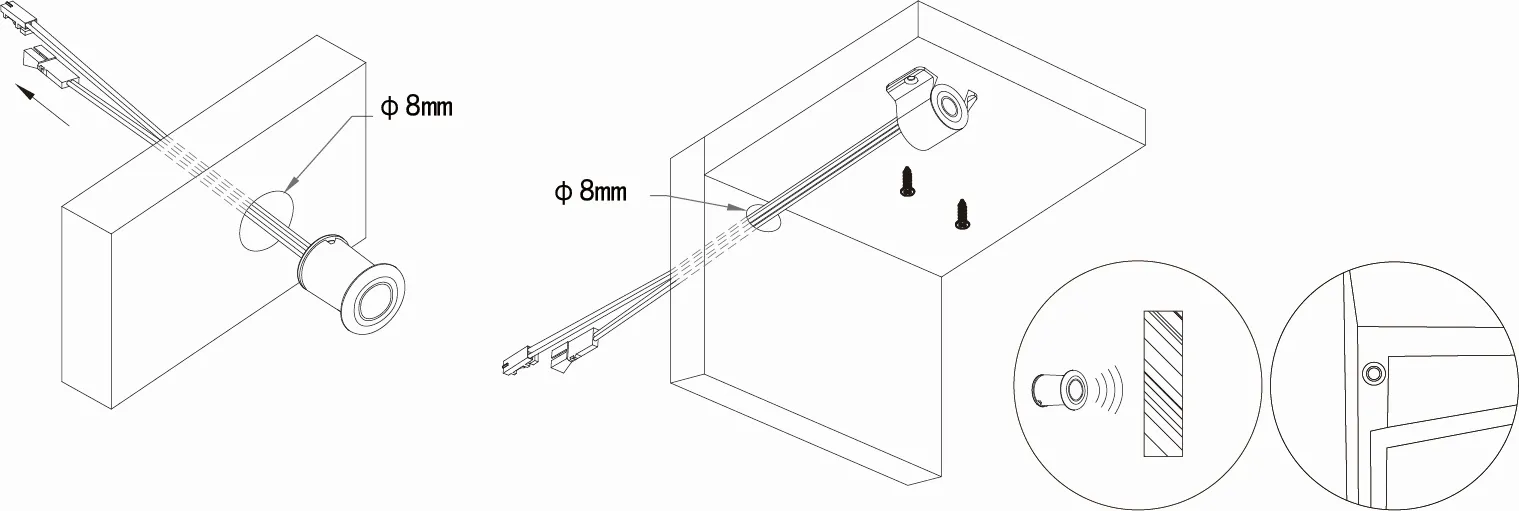

Installation

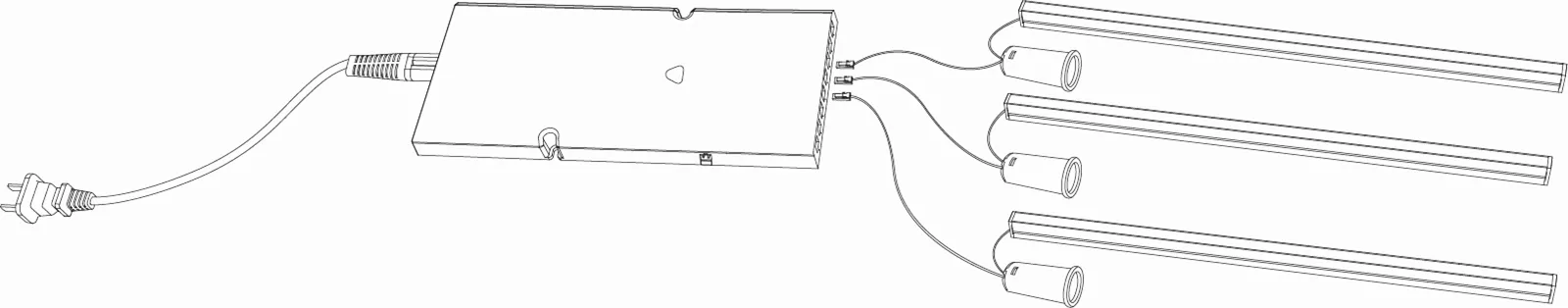

Wiring diagram
