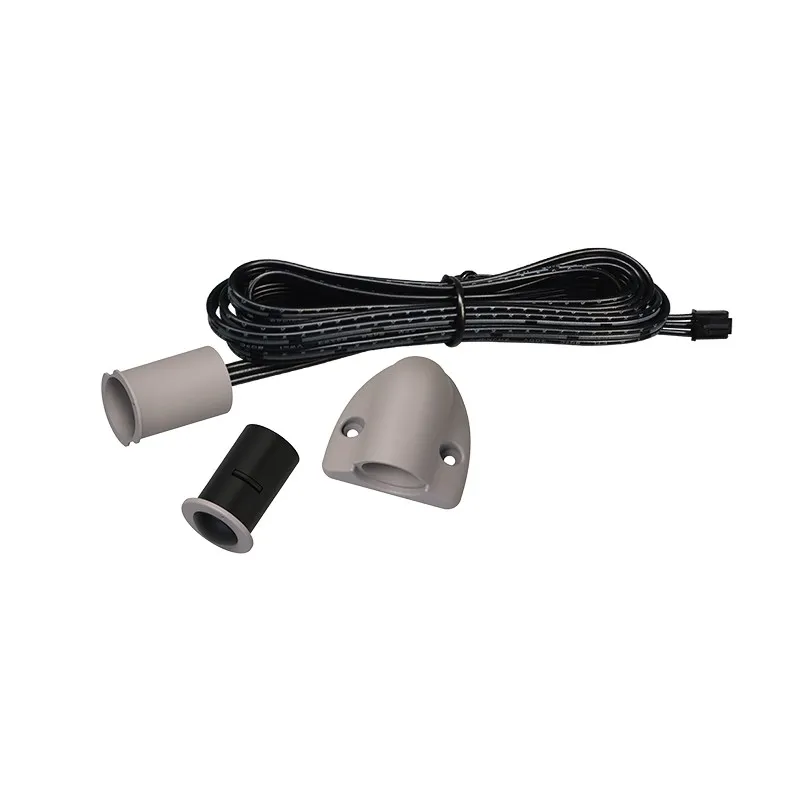

Description
▶About this item - This PIR sensor switch is compatible with both 12V and 24V low-voltage LED lights. It turns the lights on when people enter the sensing range and turns them off 30 seconds after people leave. The switch has a detection range of 3m and a detection angle of 120°.
▶Its quality is consistent, highly sensitive, and very little affected by environmental temperature.
▶Both surface mounting and embedded mounting are optional - With an embedded mounting hole size of just 12 mm in diameter, this sensor switch series is suitable for many applications. A base for surface mounting is also available.
▶Detachable design - Its detachable design makes it very easy to install or replace.
▶Wide application - This PIR sensor switch can be used for lighting control in cupboards, wardrobes, wine cabinets, kitchen cabinets and other cabinets.
Parameters
|
Control mode |
Centralized control |
|
Input/Output voltage |
DC 12-24V |
|
Power cable |
2m |
|
Load LED power |
Depending on the transformer load |
|
Drilling size for embedded mounting |
12mm |
|
Bracket size for surface mounting |
28.3mm*28.7mm*16mm |
|
Sensing distance |
0-3m |
|
Delay time |
30s |
|
Detecting angle |
120° |
|
Function |
Control the light comes on when people come and goes off when people leave |
|
Certification |
CE,RoHS |
|
Warranty |
3 Years |
|
Brand name |
Lampow |
|
Model |
LP-2023-BJ |
Size

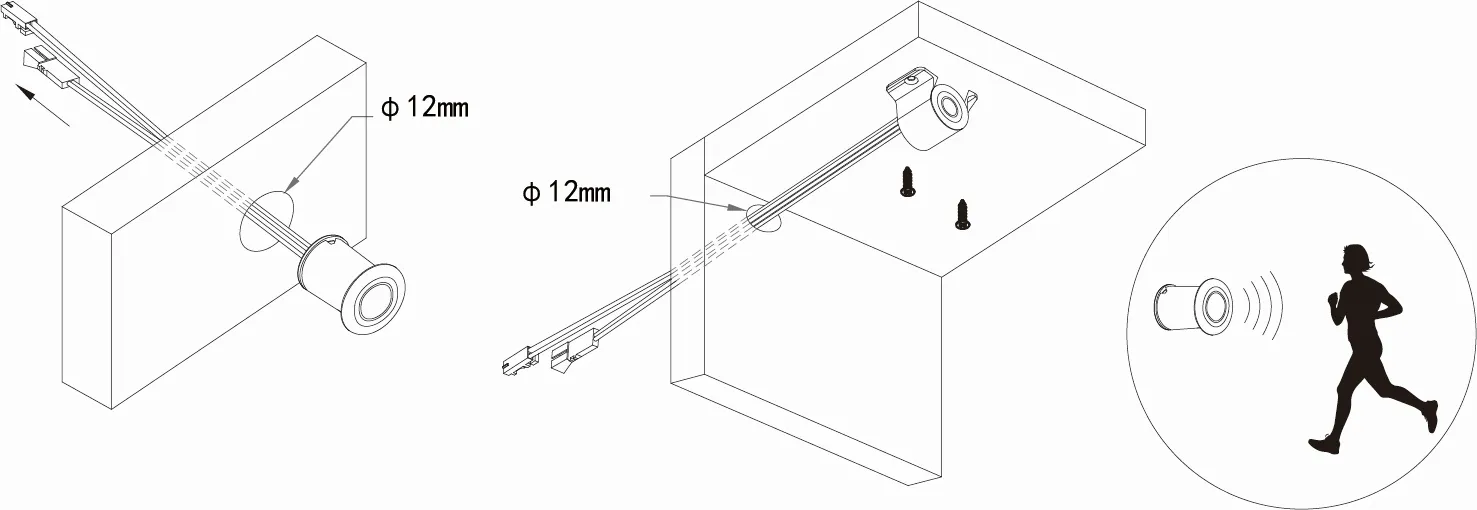

Installation

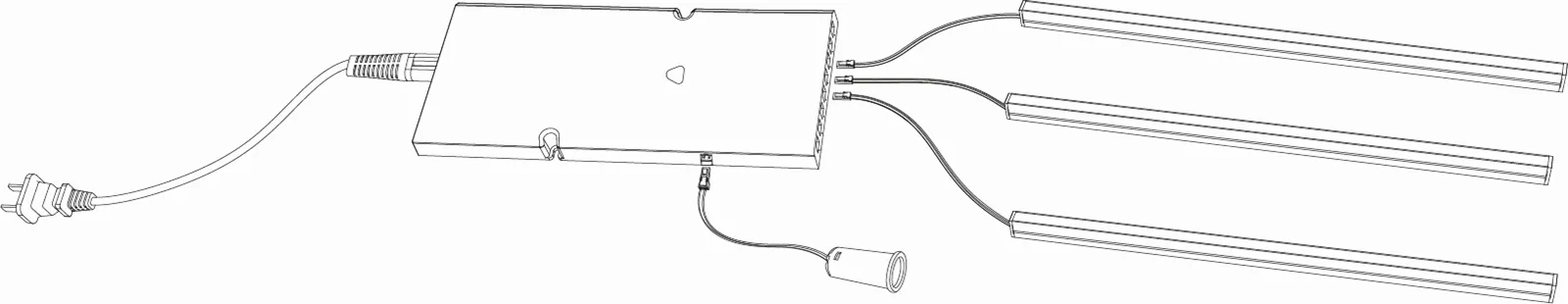

Wiring diagram
