Description

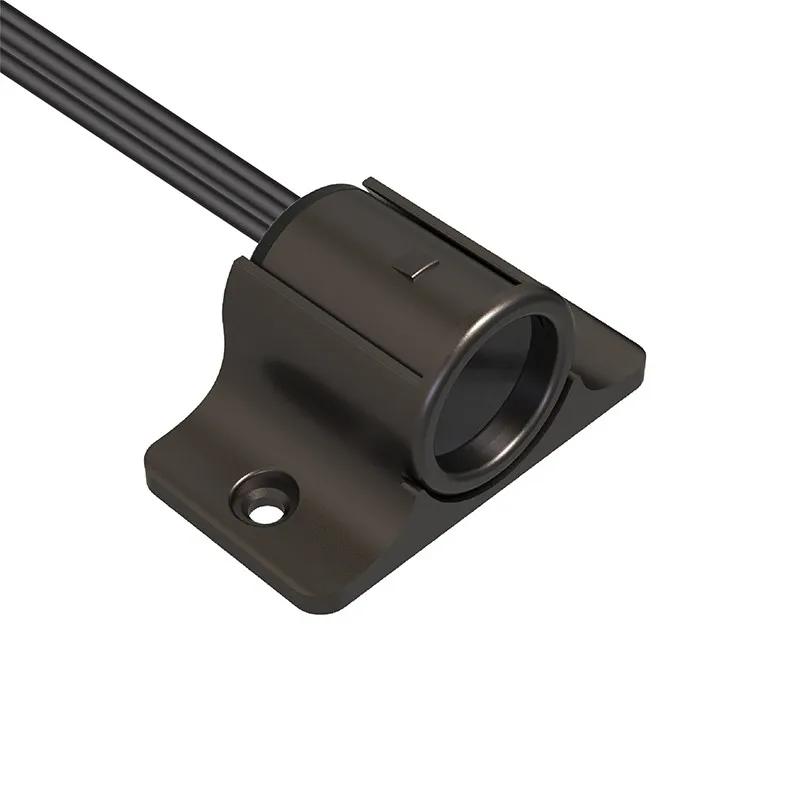

▶About this item - This IR single-door sensor switch is equipped with a highly sensitive infrared sensor and is specifically designed for single-door cabinets. By accurately detecting the opening and closing of door, it automatically controls lighting, turning the lights on when the door opens and off when it closes.
▶Energy-saving and convenient - This IR sensor switch not only improves user experience but also helps save energy and extend the lifespan of lighting fixtures.
▶Quality Guarantee - Built with high-quality electronic components, the product offers stable performance, fast response, and strong anti-interference capability, ensuring reliable long-term operation.
▶Wide application - It is suitable for DC 12-24V low-voltage applications such as LED strip lights and cabinet lighting systems, making it an ideal choice for lighting control in cabinets, wardrobes, wine cabinets, kitchen cabinets, drawers and other cabinets.
Parameters
|
Control mode |
Separate control |
|
Input/Output voltage |
DC 12-24V |
|
Power cable |
1.5m |
|
Load LED power |
12V≤60W/24V≤60W |
|
Sensor size |
12mm*15.5mm |
|
Drilling size for embedded mounting |
12mm |
|
Bracket size for surface mounting |
15.5mm*27mm*14.5mm |
|
Sensing distance |
0-8cm |
|
Function |
Control the light on/off by opening and closing door |
|
Certification |
CE,RoHS |
|
Warranty |
3 Years |
|
Brand name |
Lampow |
|
Model |
LP-5028MINI-M |

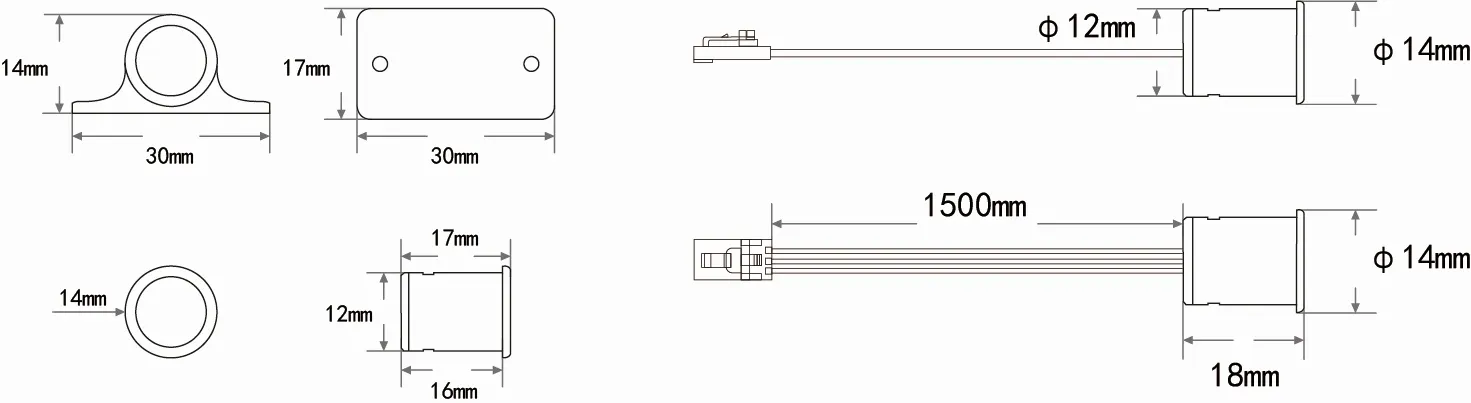

Size

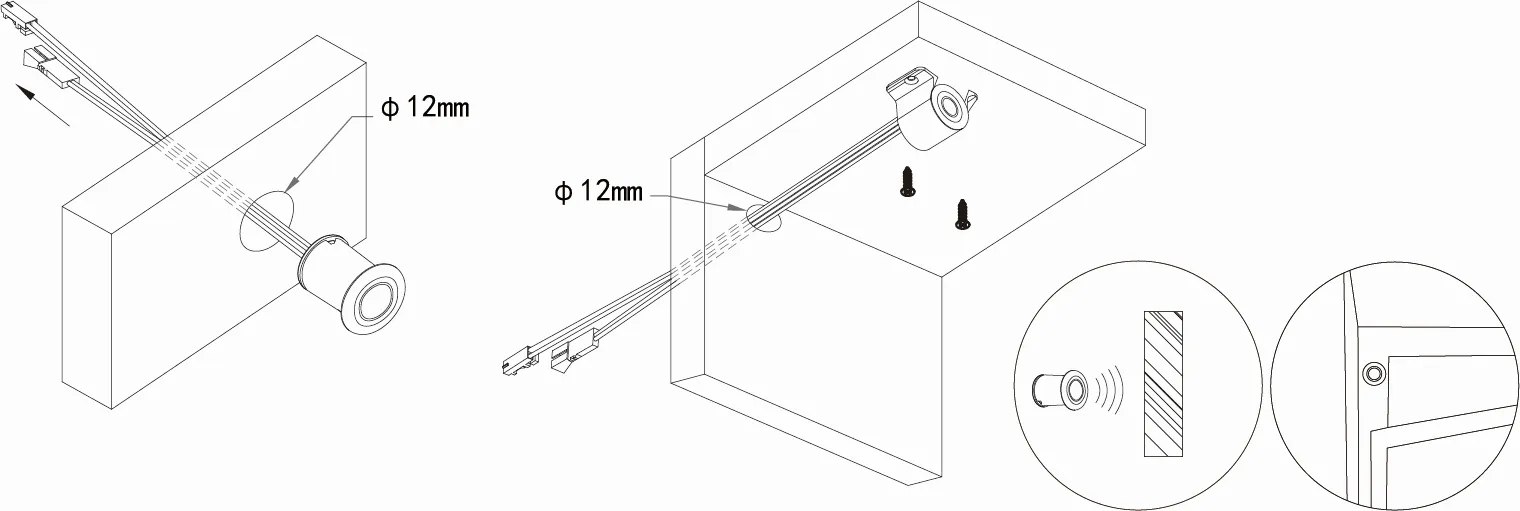

Installation

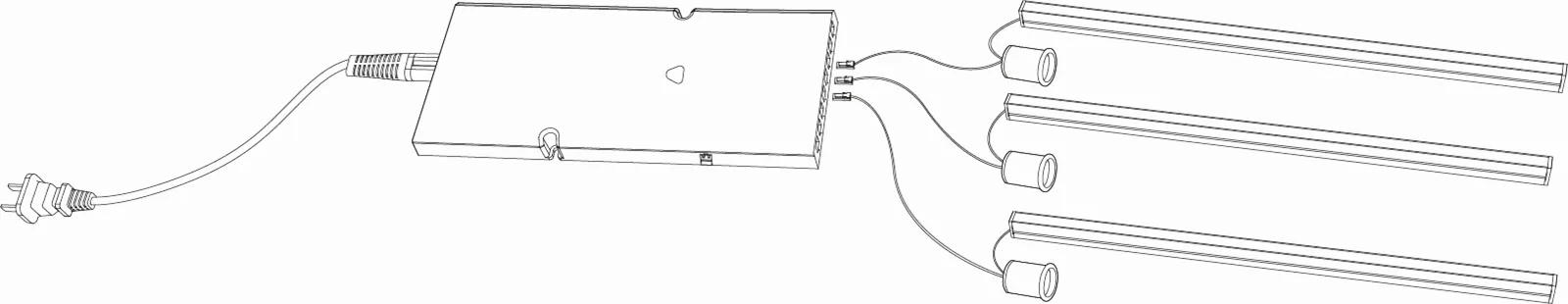

Wiring diagram
