8mm Hand Sweep Sensor Switch

8mm Hand Sweep Sensor Switch

Details
▶About this item - This contactless hand wave sensor switch is built with a high-precision infrared sensor, making it respond to a simple hand wave movement without any physical contact. Simply wave your hand in front of the sensor switch at a distance of up to 8 cm to turn the lights on or off.
▶Mini-size sensor head - With a diameter of just 8 mm, this sensor switch is suitable for thinner wood panels and has less impact on their load-bearing capacity.
Category
Wired Sensor Switch
Share to
Send Inquiry
Description
Technical Parameters

Description



▶About this item - This contactless hand wave sensor switch is built with a high-precision infrared sensor, making it respond to a simple hand wave movement without any physical contact. Simply wave your hand in front of the sensor switch at a distance of up to 8 cm to turn the lights on or off.

▶Mini-size sensor head - With a diameter of just 8 mm, this sensor switch is suitable for thinner wood panels and has less impact on their load-bearing capacity.

▶Surface mounting and embedded mounting - We provide a base and screws for surface mounting. If embedded mounting is more suitable for your project, the drilling size is 8mm in diameter.

▶Available colors - We offer sensor head in black and silver for you to choose from.

▶Wide application - This DC 12/24V hand wave sensor switch is ideal for lighting control projects in closets, wardrobes, kitchen cabinets and other cabinets.



Parameters



Control mode

Separate control

Input/Output voltage

DC 12-24V

Power cable

1.5m

Load LED power

12V≤60W/24V≤60W

Sensor size

12mm*φ8mm

Drilling size for embedded mounting

8mm

Bracket size for surface mounting

25mm*14mm*11mm

Sensing distance

0-8cm

Function

Wave your hand to control the light on/off

Certification

CE,RoHS

Warranty

3 Years

Brand name

Lampow

Model

LP-5029T

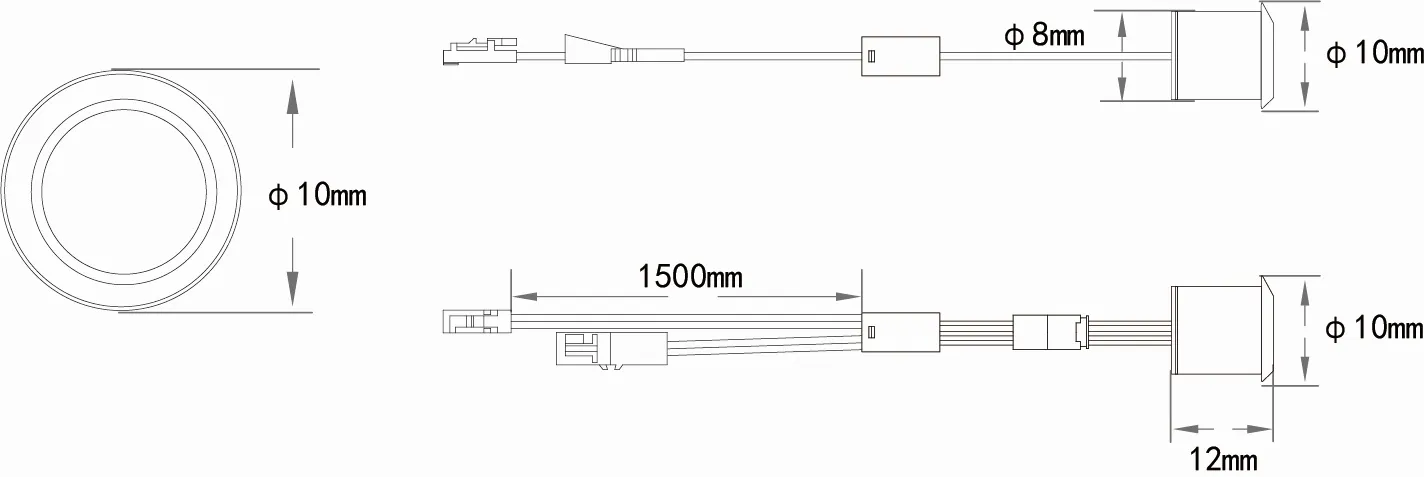

Size



39

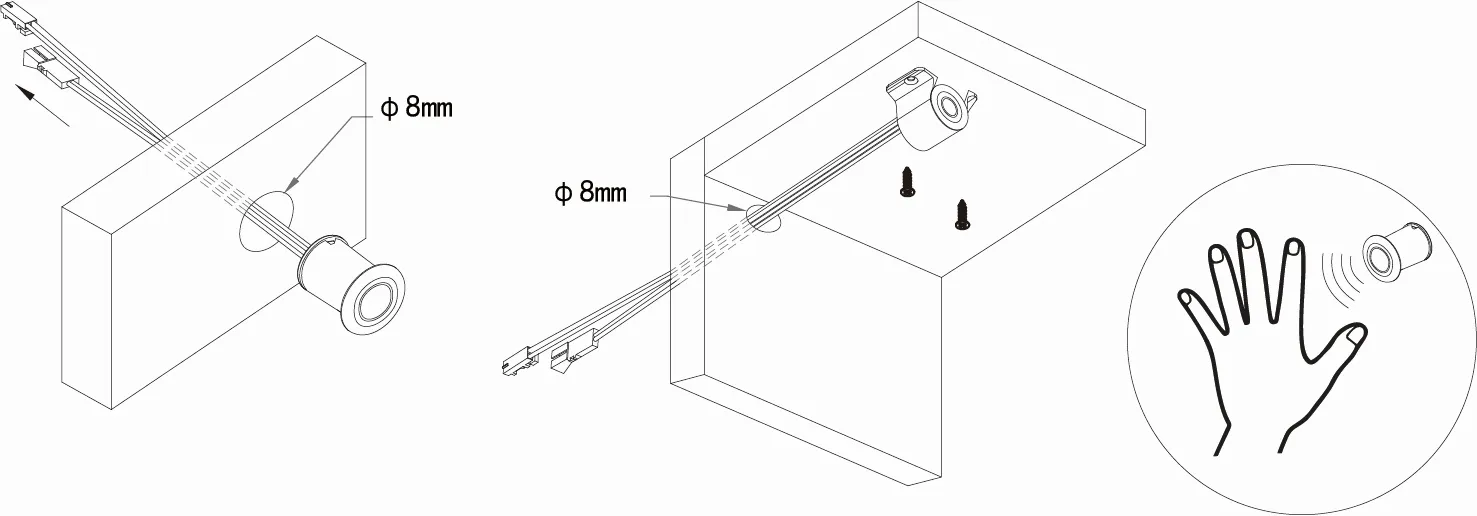

Installation



41

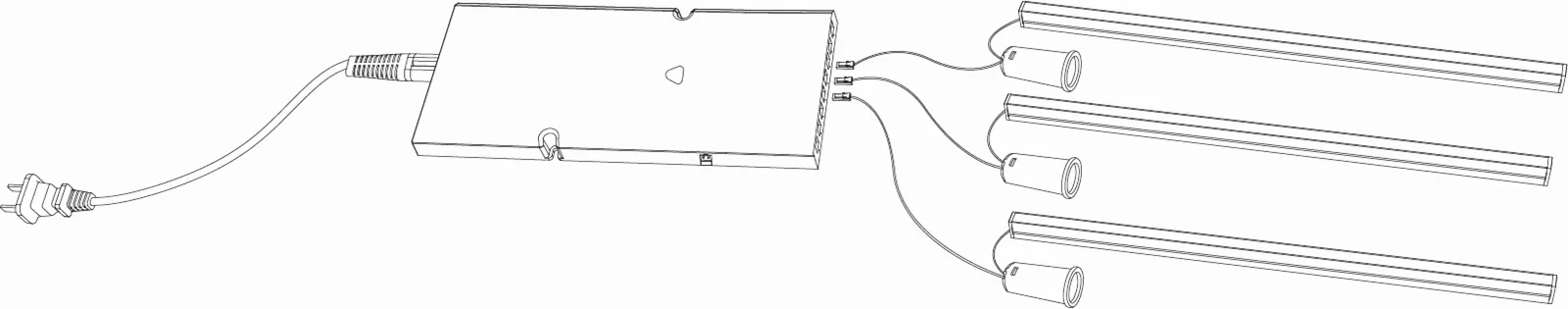

Wiring diagram



42
