Description

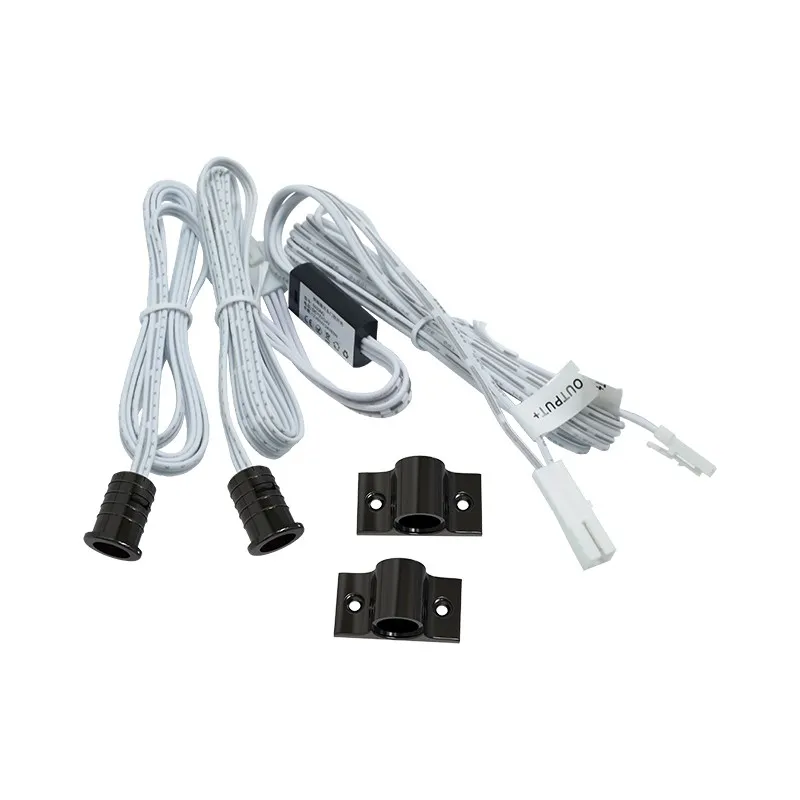

▶About this item - Designed for double-door cabinets, this IR sensor switch turns the lights ON when either door is opened and switches OFF only when both doors are closed, ensuring convenient and intelligent control.
▶Surface mounting and embedded mounting - We provide a base and screws for surface mounting. If embedded mounting is more suitable for your project, the drilling size is 8mm in diameter.
▶Available colors - We offer sensor head in black and silver for you to choose from.
▶Energy saving - Automatically turns the lights off when both doors are closed, reducing energy consumption and extending the lifespan of connected LED lighting systems.
▶Wide application range - Perfect for wardrobes, kitchen cabinets, closets, cupboards, display cases, and storage units; compatible with most DC 12-24V low-voltage LED lighting setups.
Parameters
|
Control mode |
Separate control |
|
Input/Output voltage |
DC 12-24V |
|
Power cable |
1.5m |
|
Load LED power |
12V≤60W/24V≤60W |
|
Sensor size |
12mm*φ8mm |
|
Drilling size for embedded mounting |
8mm |
|
Bracket size for surface mounting |
25mm*14mm*11mm |
|
Sensing distance |
0-8cm |
|
Function |
Open any side of the double door lights on, both doors closed lights off |
|
Certification |
CE,RoHS |
|
Warranty |
3 Years |
|
Brand name |
Lampow |
|
Model |
LP-5029M2 |

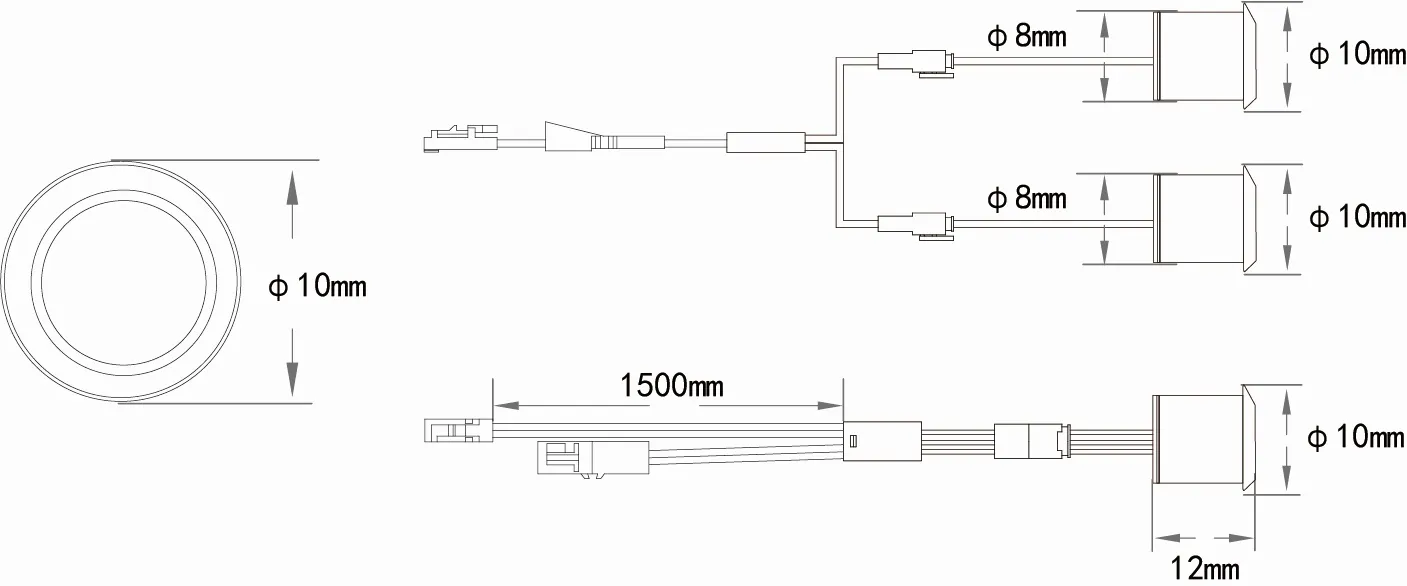

Size

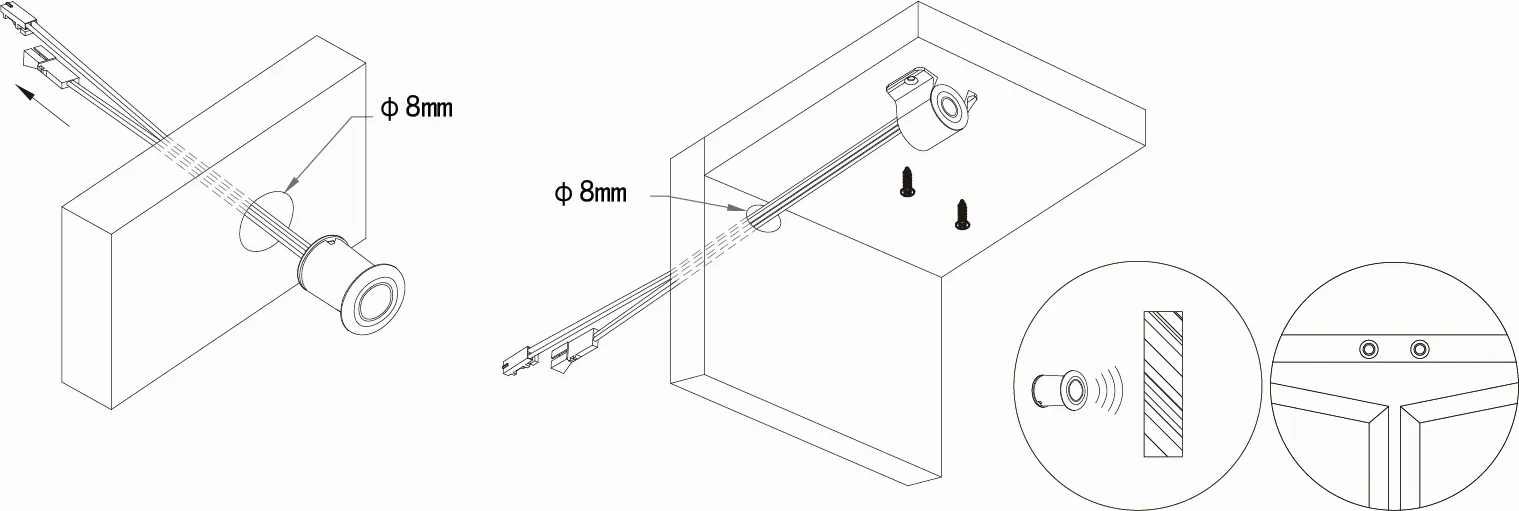

Installation

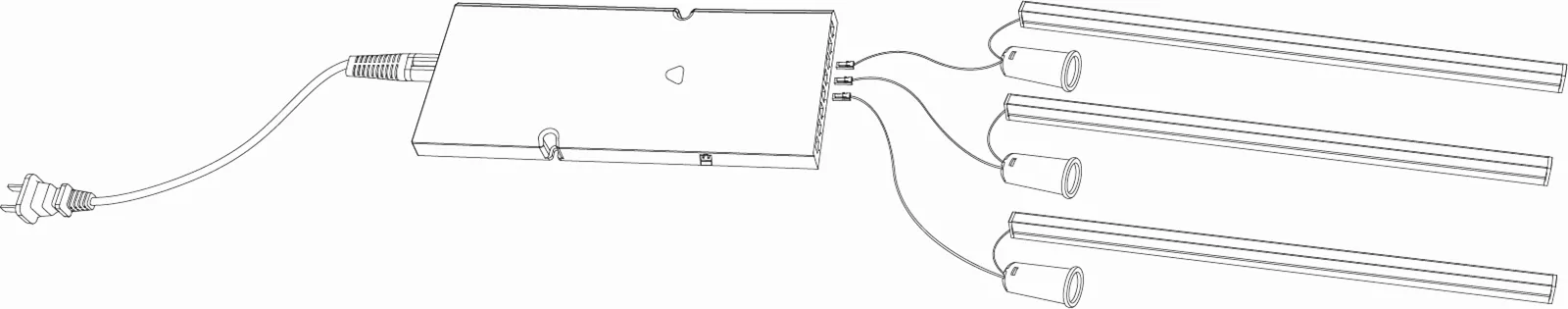

Wiring diagram
