Description

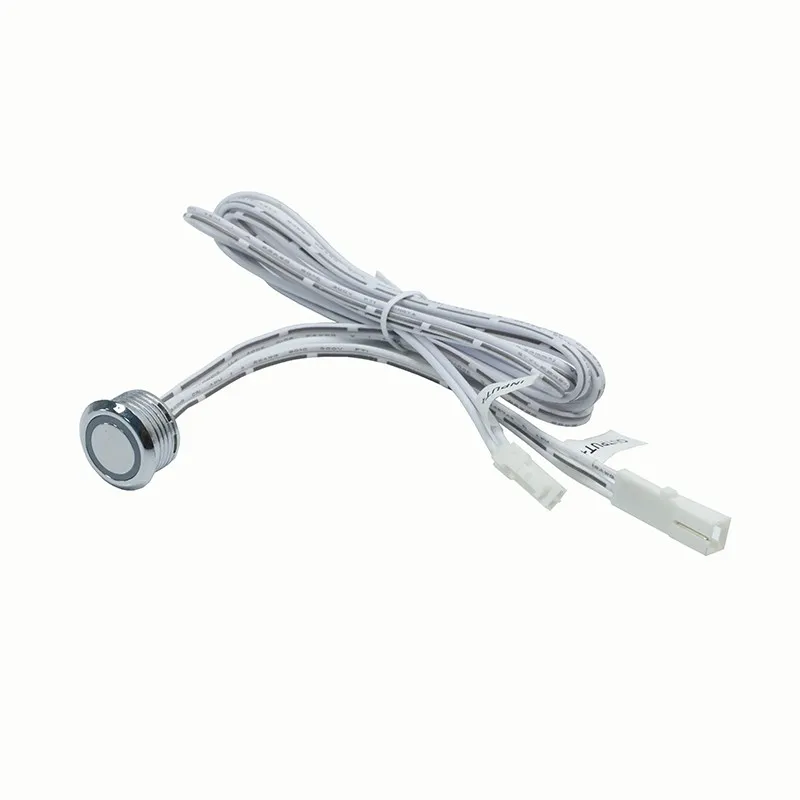

▶About this item - This touch sensor switch with dimming function is suitable for low-voltage DC 12V–24V LED lamps. It has a maximum output current of 5A and a maximum output power of 60W. Short pressing turns the light on or off, while long pressing allows you to adjust the brightness. It has a memory function. When you turn the light on again, it will automatically be the same brightness as last time.
▶For recessed installation only - The drilling size for embedded mounting is 17 mm in diameter.
▶Certification - This dimmable touch sensor switch is CE and RoHS certified. We also provide a 3-years warranty.
▶Quality guarantee - Its quality is consistent, highly sensitive, and very little affected by environmental temperature.
▶Wide application - This touch sensor switch can be used for lighting control in cupboards, wardrobes, wine cabinets, kitchen cabinets and other cabinets.
Parameters
|
Control mode |
Separate control |
|
Input/Output voltage |
DC 12-24V |
|
Power cable |
1.5m |
|
Load LED power |
12V≤60W/24V≤60W |
|
Sensor size |
11mm*φ17mm |
|
Drilling size for embedded mounting |
17mm |
|
Function |
Short press to control the light to gradually brighten or dim; long press for stepless dimming |
|
Certification |
CE,RoHS |
|
Warranty |
3 Years |
|
Brand name |
Lampow |
|
Model |
LP-9026 |

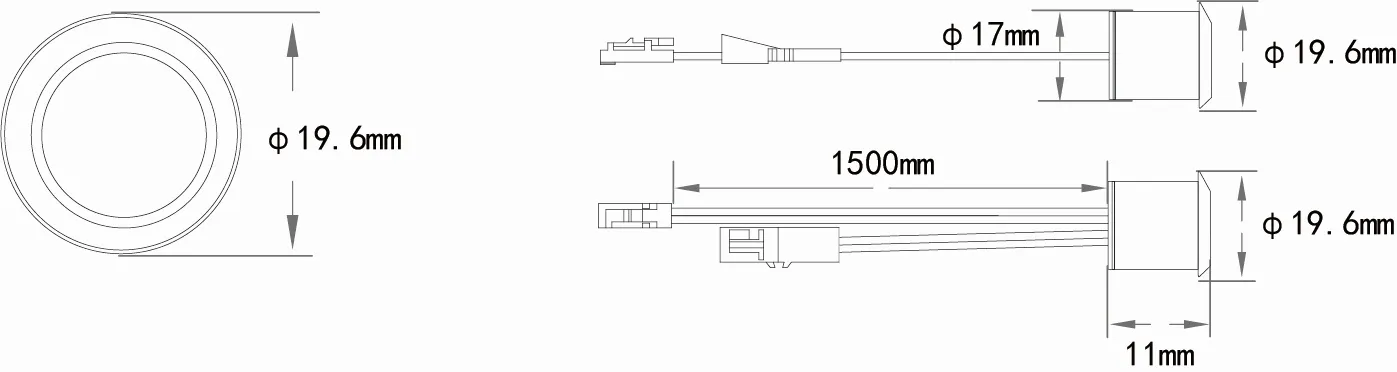

Size

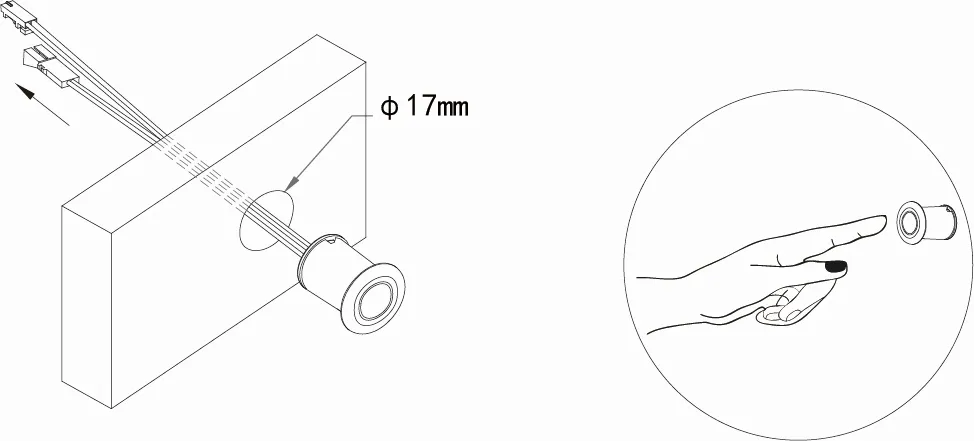

Installation

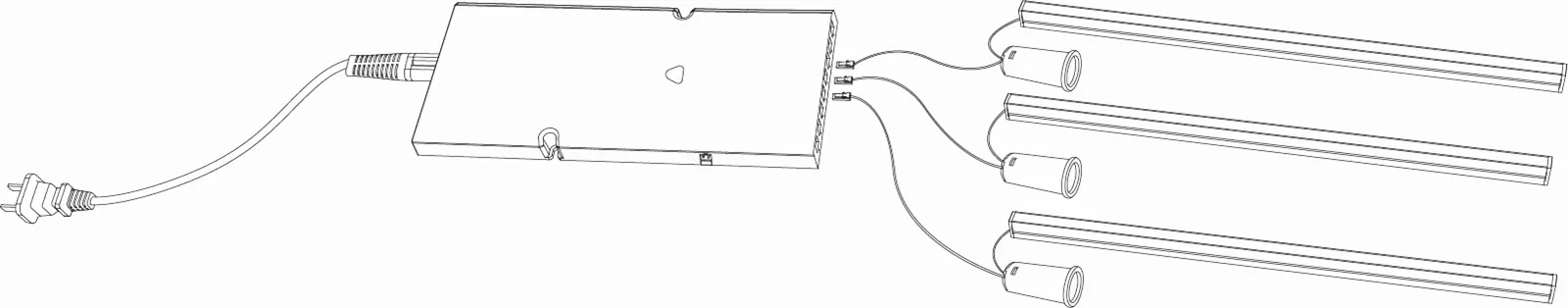

Wiring diagram
