Description
▶About this item - This waterproof touch sensor switch with is suitable for low-voltage DC 12V-24V LED strips. Press to switch the light on or off; press and hold to adjust the brightness continuously. It has a memory function. When you turn the light on again, it will automatically be the same brightness as last time.
▶Metal sensing head - The sensor head of this switch has a metal casing, making it robust and durable, and suitable for long-term use.
▶Installation - The sensor head has a diameter of just 8 mm. For recessed installation only, the drilling size for embedded mounting is also 8 mm.
▶Connection - Its input connector is connected to the DC 12V/24V LED driver, and its output connector is connected to the LED light.
▶Wide application - Widely used for lighting control in cabinets, wardrobes, wine cabinets, bookshelves, kitchen cabinets and other cabinets.
Parameters
|
Control mode |
Separate control |
|
Input/Output voltage |
DC 12-24V |
|
Power cable |
1.5m |
|
Load LED power |
12V≤60W/24V≤60W |
|
Sensor size |
12mm*φ8mm |
|
Drilling size for embedded mounting |
8mm |
|
Function |
Short press to control the light to gradually brighten or dim; long press for stepless dimming |
|
Certification |
CE, RoHS |
|
Warranty |
3 Years |
|
Brand name |
Lampow |
|
Model |
LP-9032 |

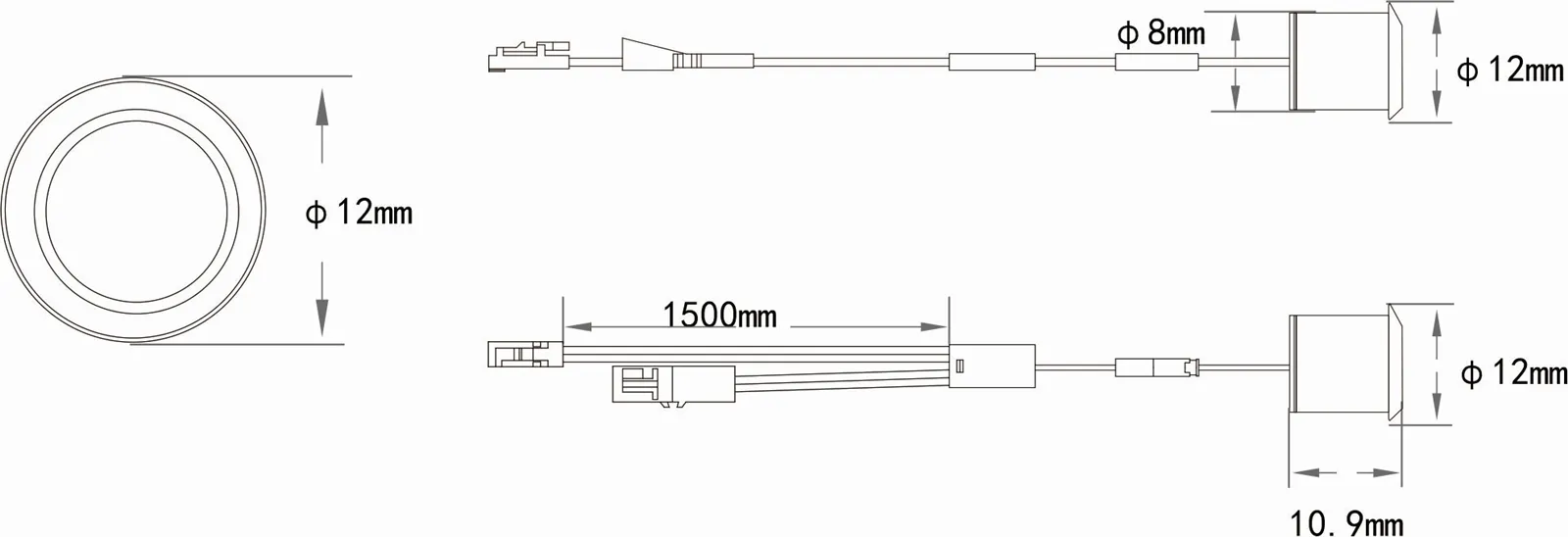

Size

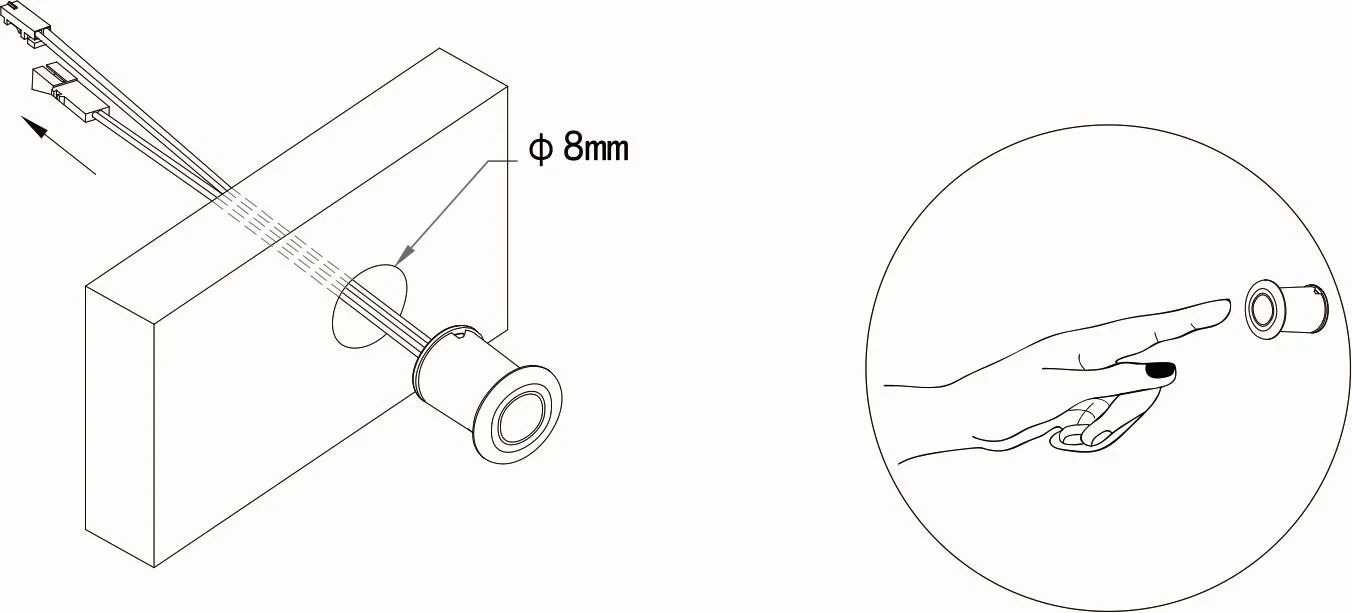

Installation

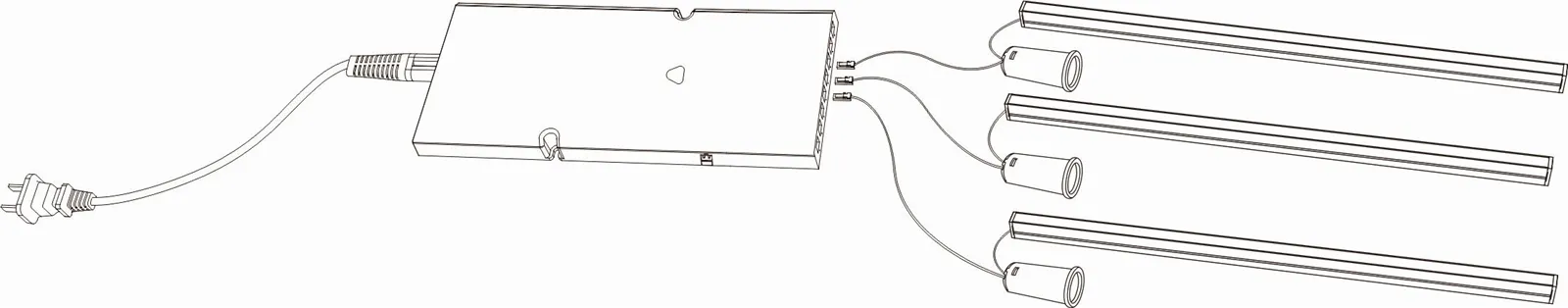

Wiring diagram
