Description
▶About this item - This touch sensor switch is suitable for both 12V and 24V low-voltage LED strip lights. A short press turns the light on or off, while a long press allows for stepless dimming.
▶Memory function - The touch sensor switch has a memory function. When you turn the light on again, it will automatically be the same brightness as last time.
▶Installation options available - Both surface mounting and embedded mounting are optional. A base for surface mounting is available. If you choose the embedded mounting option, the mounting hole will be just 12 mm in diameter.
▶Detachable design - Its detachable design makes installation and replacement very simple, and facilitates future maintenance.
▶Wide application - This touch sensor switch can be used for lighting control in cupboards, wardrobes, wine cabinets, kitchen cabinets and other cabinets.
Parameters
|
Control mode |
Centralized control |
|
Input/Output voltage |
DC 12-24V |
|
Power cable |
2m |
|
Load LED power |
Depending on the transformer load |
|
Drilling size for embedded mounting |
12mm |
|
Bracket size for surface mounting |
28.3mm*28.7mm*16mm |
|
Function |
Short press to control the light to gradually brighten or dim; long press for stepless dimming |
|
Certification |
CE, RoHS |
|
Warranty |
3 Years |
|
Brand name |
Lampow |
|
Model |
LP-9038-BJ |
Size

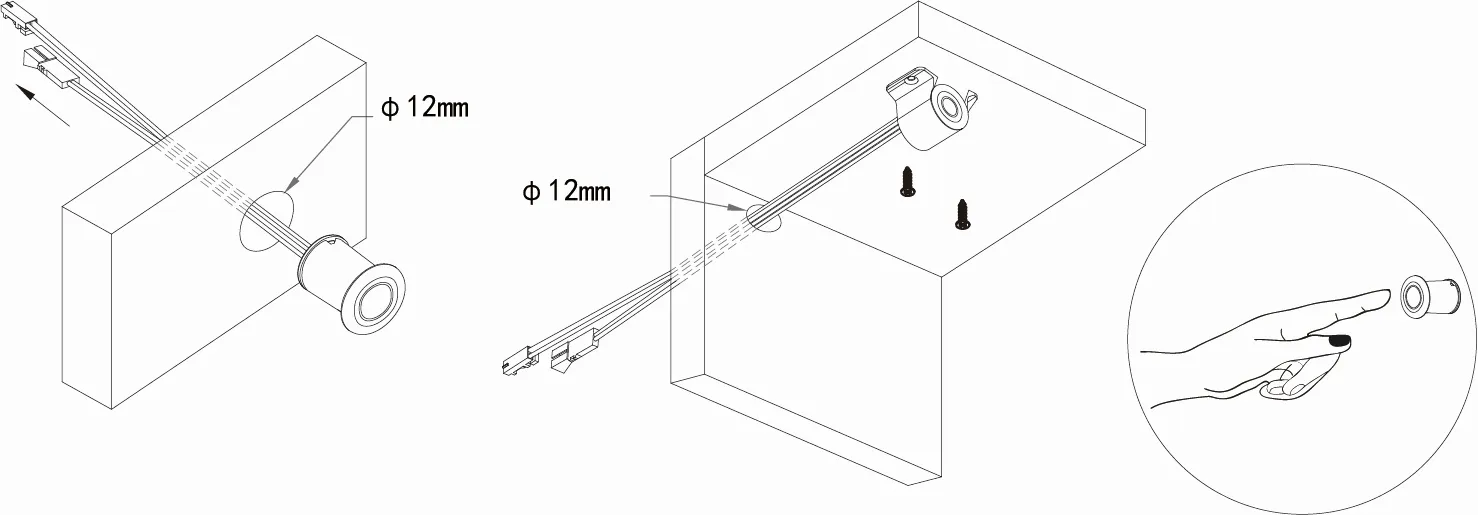

Installation

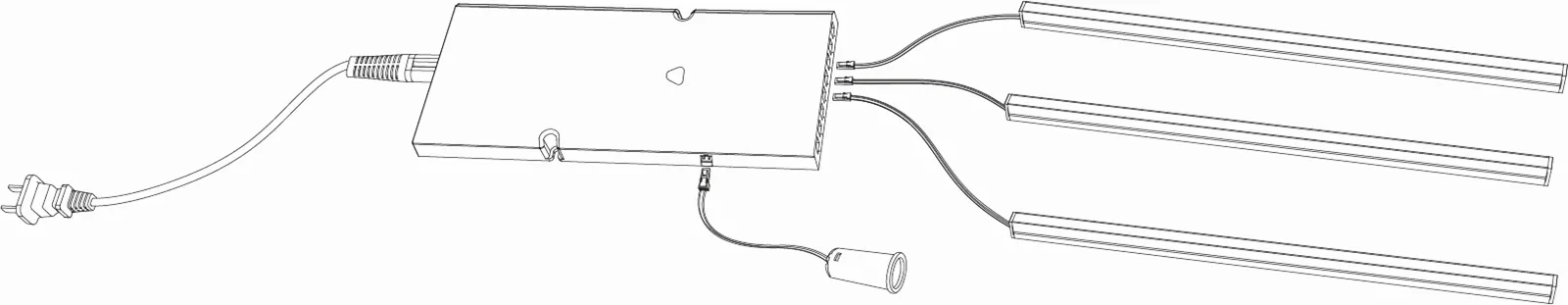

Wiring diagram
