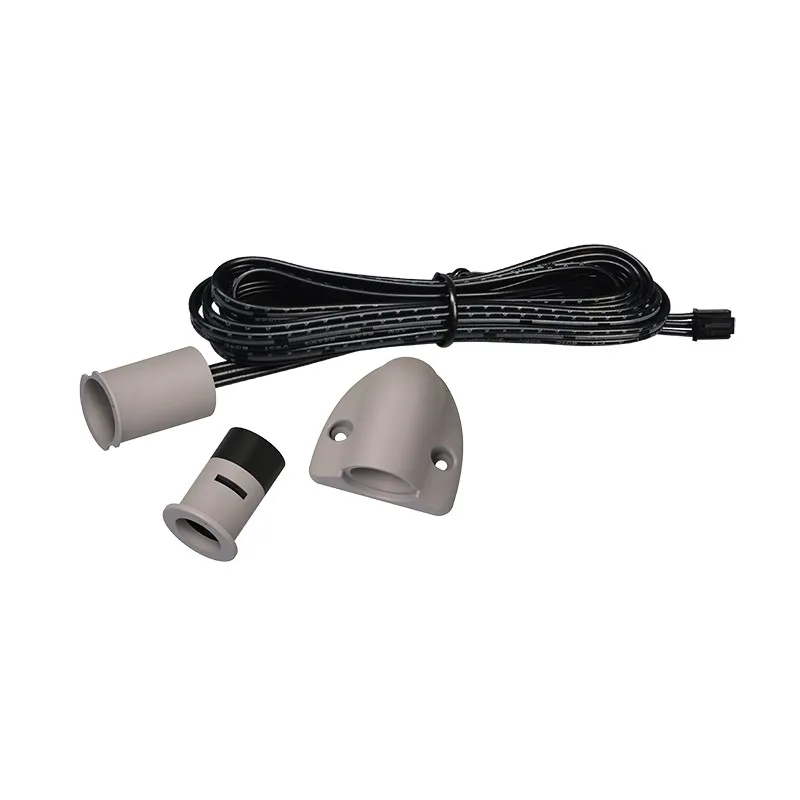

Detachable Hand Wave Sensor Switch

Detachable Hand Wave Sensor Switch

Details
▶About this item - This hand wave sensor switch is suitable for both 12V and 24V low-voltage LED lighting. It is activated by a hand-waving motion. Once you have correctly connected this sensor switch to your power supply and LED lights, waving your hand in front of the sensor switch within 8 cm will turn the lights on automatically. Waving your hand again will turn the lights off.
Category
Wired Sensor Switch
Share to
Send Inquiry
Description
Technical Parameters

Description



▶About this item - This hand wave sensor switch is suitable for both 12V and 24V low-voltage LED lighting. It is activated by a hand-waving motion. Once you have correctly connected this sensor switch to your power supply and LED lights, waving your hand in front of the sensor switch within 8 cm will turn the lights on automatically. Waving your hand again will turn the lights off.

▶High quality - It uses ICs that provide consistent quality and strong resistance to interference.

▶Installation options available - Both surface mounting and embedded mounting are optional. A base for surface mounting is available. If you choose the embedded mounting option, the mounting hole will be just 12 mm in diameter.

▶Detachable design - Its detachable design makes it very easy to install or replace.

▶Wide application - This hand sweep sensor switch can be used in a variety of places, such as cabinets, closets and wardrobes.



Parameters



Control mode

Centralized control

Input/Output voltage

DC 12-24V

Power cable

2m

Load LED power

Depending on the transformer load

Drilling size for embedded mounting

12mm

Bracket size for surface mounting

28.3mm*28.7mm*16mm

Sensing distance

0-8cm

Function

Wave your hand to control the light on/off

Certification

CE,RoHS

Warranty

3 Years

Brand name

Lampow

Model

LP-5038T-BJ



Size



26

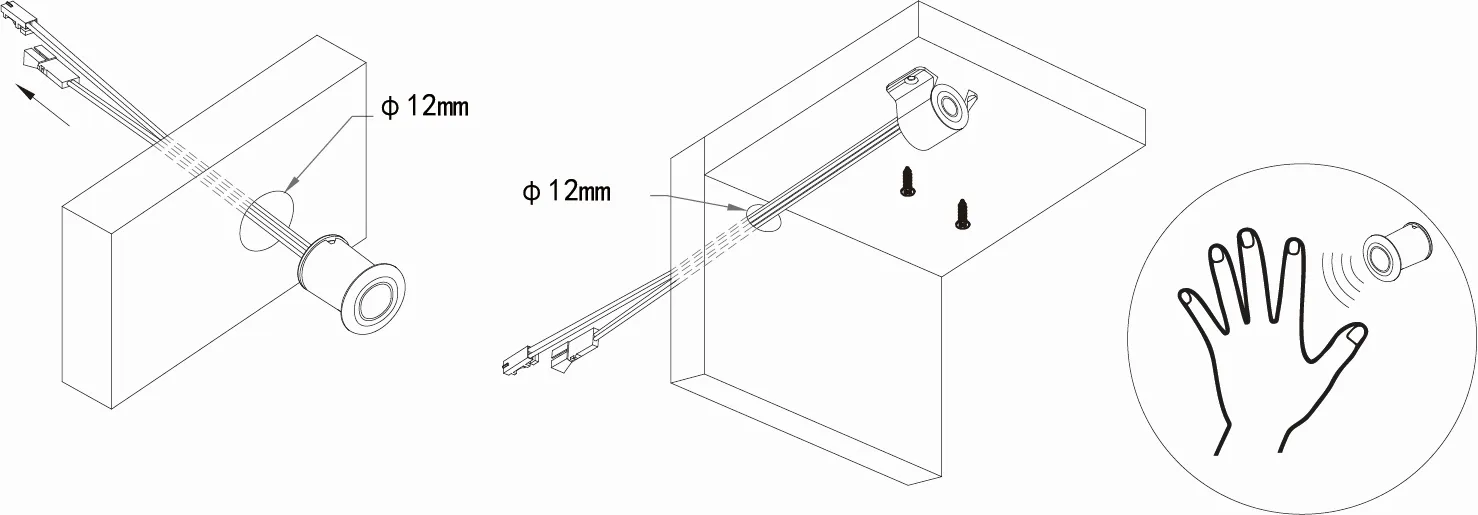

Installation



27

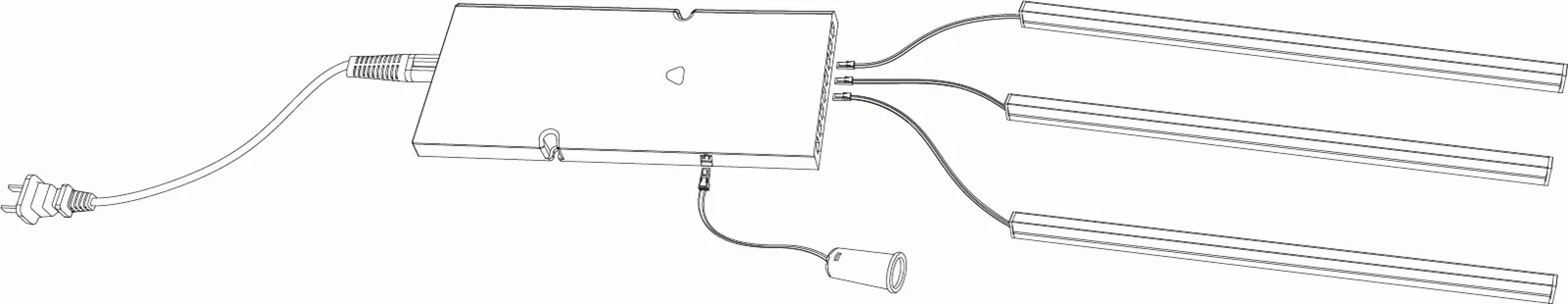

Wiring diagram



28
