Description
▶About this item - The Hidden hand wave sensor Switch combines gesture control with invisible installation. It can detect a simple hand wave within 0-8 cm of the surface. Wave your hand to turn the light on; wave again to turn it off.
▶Easy Installation - It mounts behind non-metallic surfaces such as glass, wood and acrylic(thickness≤25 mm). This stick-on design comes with a double-sided adhesive tape, so you can install it quickly without drilling or welding.
▶Non-contact operation - No need to touch anything. It is activated by hands waving.
▶Basic parameters - This hand wave sensor switch has an input/output voltage of 12–24 V DC, a maximum output current of 5 A, and a maximum output power of 60 W.
▶Wide application - It is suitable for DC 12-24V low-voltage applications such as LED strip lights and cabinet lighting systems,making it an ideal choice for lighting control in cabinets and wardrobes.
Parameters
|
Control mode |
Separate control |
|
Input/Output voltage |
DC 12-24V |
|
Power cable |
1.5m |
|
Load LED power |
12V≤60W/24V≤60W |
|
Sensor size |
48mm*48mm*6mm |
|
Sensing distance |
0-8cm |
|
Function |
Wave your hand to control the light on/off |
|
Certification |
CE, RoHS |
|
Warranty |
3 Years |
|
Brand name |
Lampow |
|
Model |
LP-5032 |

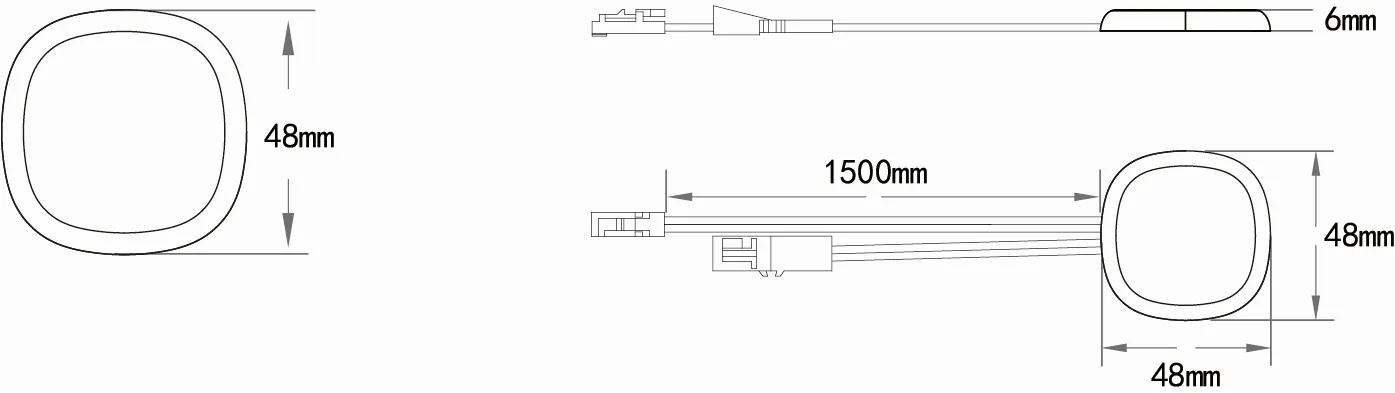

Size

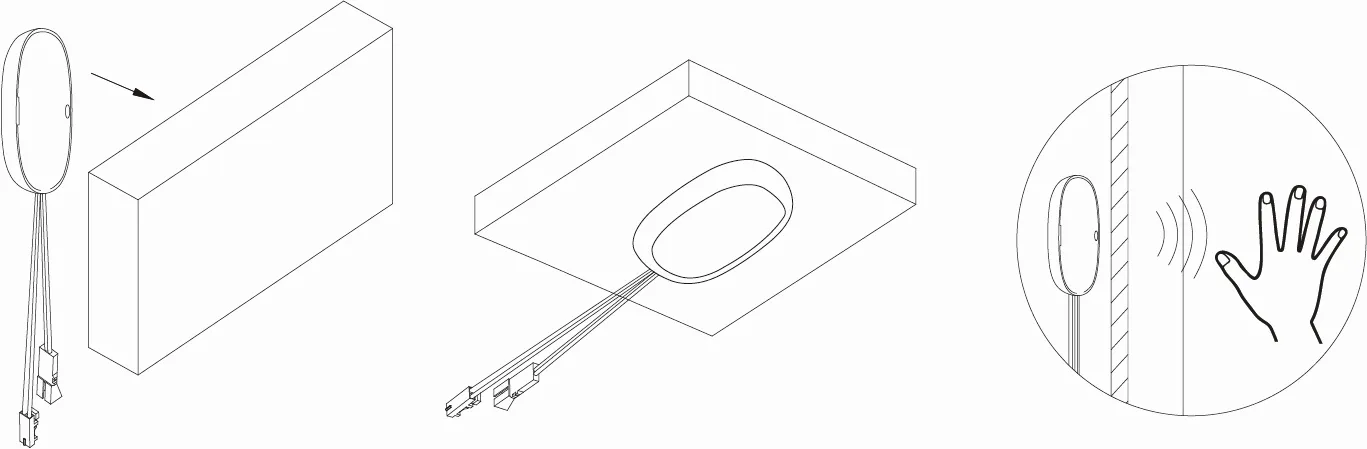

Installation

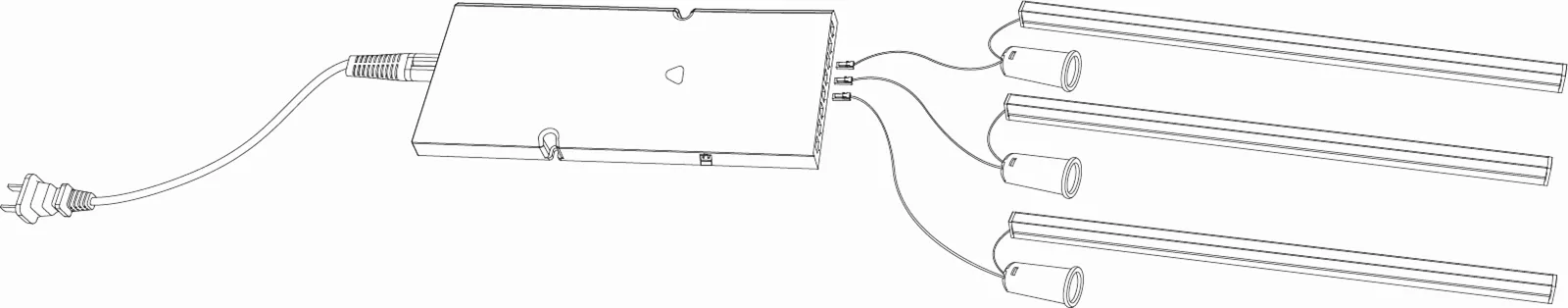

Wiring diagram
