Description

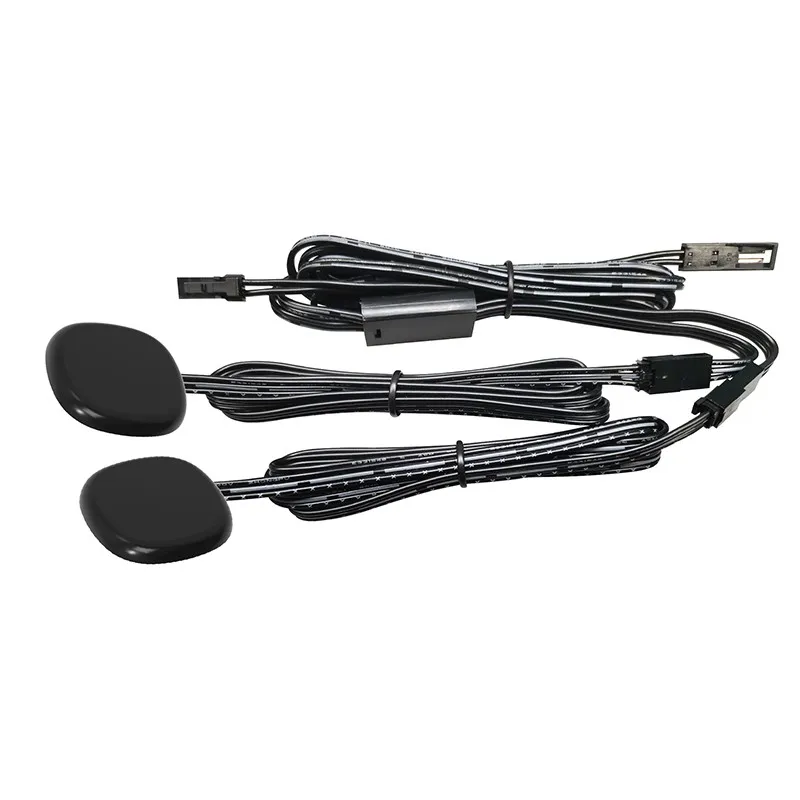

▶About this item - The hidden double-head touch sensor switch has two sensor heads, which provide one more touch point for greater flexibility in application. The user touches the surface(the switch is mounted behind it)-not the switch itself-to control lights. Simply tap to turn the light on/off. Long press for stepless dimming. It has a memory function. When you turn the light on again, it will automatically be the same brightness as last time.
▶Instant touch response - A touch to control your LED lights immediately-no delay.
▶Easy Installation - Each product comes with a double-sided adhesive tape for quick installation without the need for drilling or welding.
▶Wide application - It can be installed behind non-metallic materials such as wood panels, glass and acrylic(thickness≤25 mm). If you don't want visible sensors to ruin the design, this switch is the perfect solution.
Parameters
|
Control mode |
Separate control |
|
Input/Output voltage |
DC 12-24V |
|
Power cable |
1.5m |
|
Load LED power |
12V≤60W/24V≤60W |
|
Sensor size |
48mm*48mm*6mm |
|
Function |
Short press to control the light to gradually brighten or dim; long press for stepless dimming |
|
Certification |
CE,RoHS |
|
Warranty |
3 Years |
|
Brand name |
Lampow |
|
Model |
LP-9030-2 |

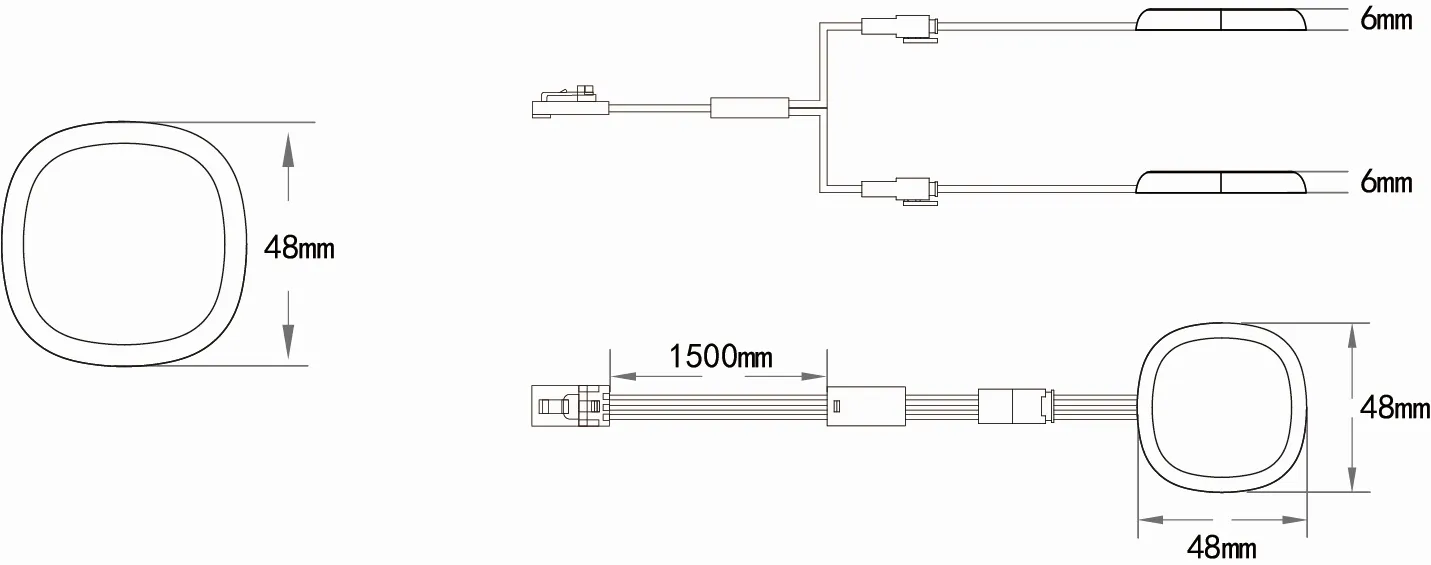

Size

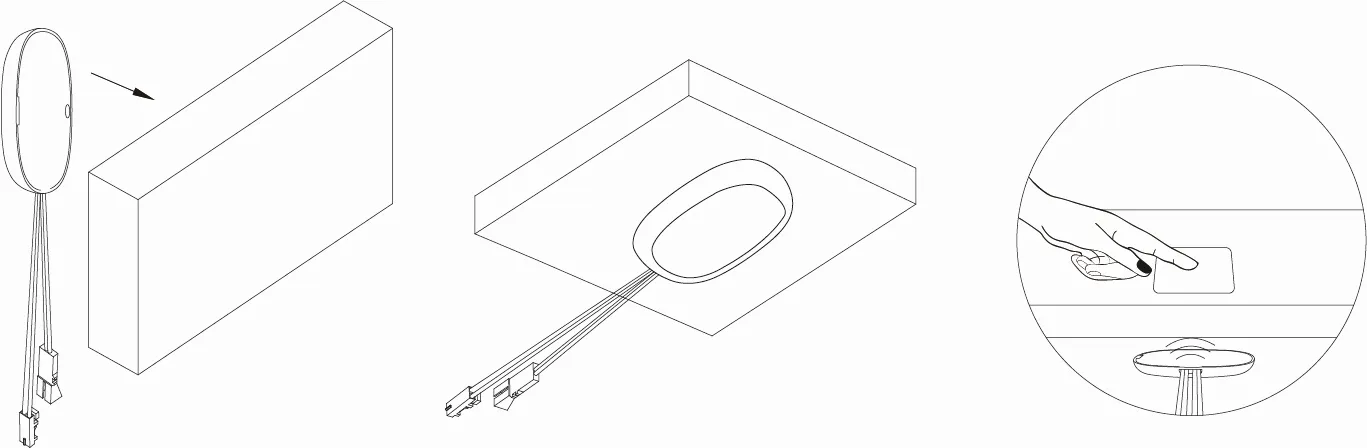

Installation

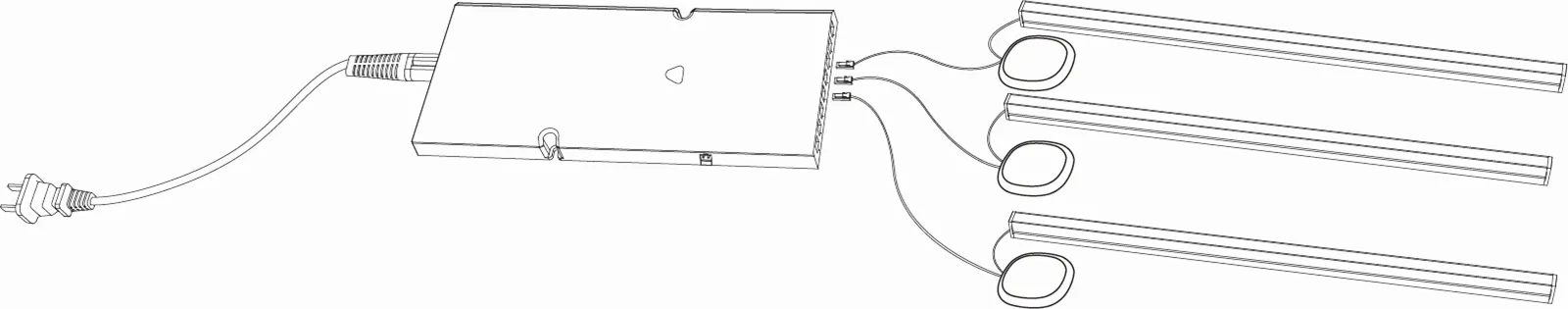

Wiring diagram
