Description
▶About this item - The hidden touch sensor switch is designed for automatic lighting control while remaining virtually invisible. The user touches the surface(the switch is mounted behind it)-not the switch itself-to control lights. A simple touch to turn the light on/off. Press and hold to adjust brightness.
▶Last brightness memory function - It has a memory function. When you turn the light on again, it will automatically be the same brightness as last time.
▶Easy Installation - It can be installed behind non-metallic materials such as wood panels, glass and acrylic(thickness≤25 mm). This stick-on design comes with a double-sided adhesive tape, so you can install it quickly without drilling or welding.
▶Wide application - This touch sensor switch is ideal for DC 12-24V low-voltage LED lamps and can be used in a variety of places, such as cabinets, wardrobes and closets. If you don't want visible sensors to ruin the design, this switch is the perfect solution.
Parameters
|
Control mode |
Separate control |
|
Input/Output voltage |
DC 12-24V |
|
Power cable |
1.5m |
|
Load LED power |
12V≤60W/24V≤60W |
|
Sensor size |
48mm*48mm*6mm |
|
Function |
Short press to control the light to gradually brighten or dim; long press for stepless dimming |
|
Certification |
CE,RoHS |
|
Warranty |
3 Years |
|
Brand name |
Lampow |
|
Model |
LP-9030 |

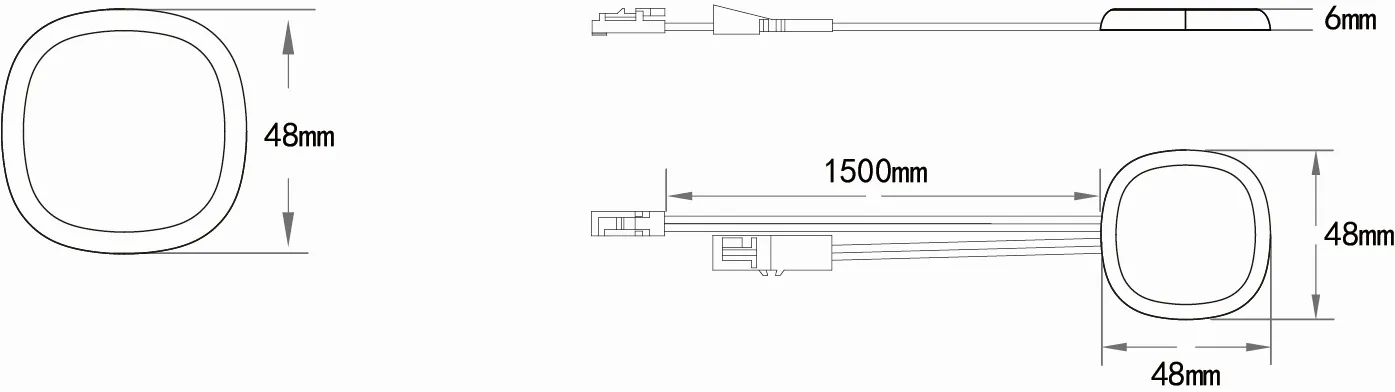

Size

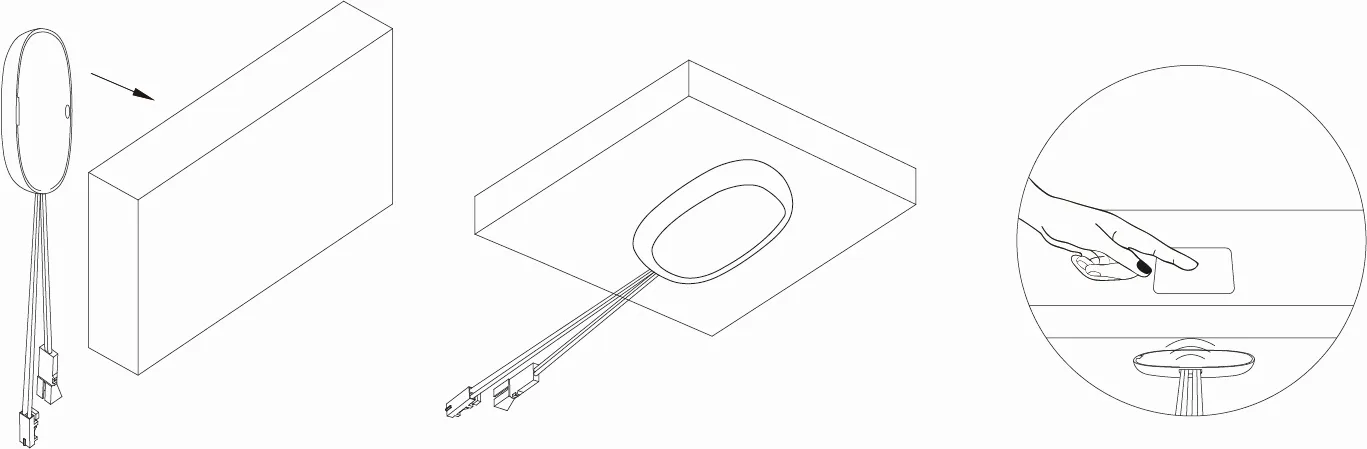

Installation

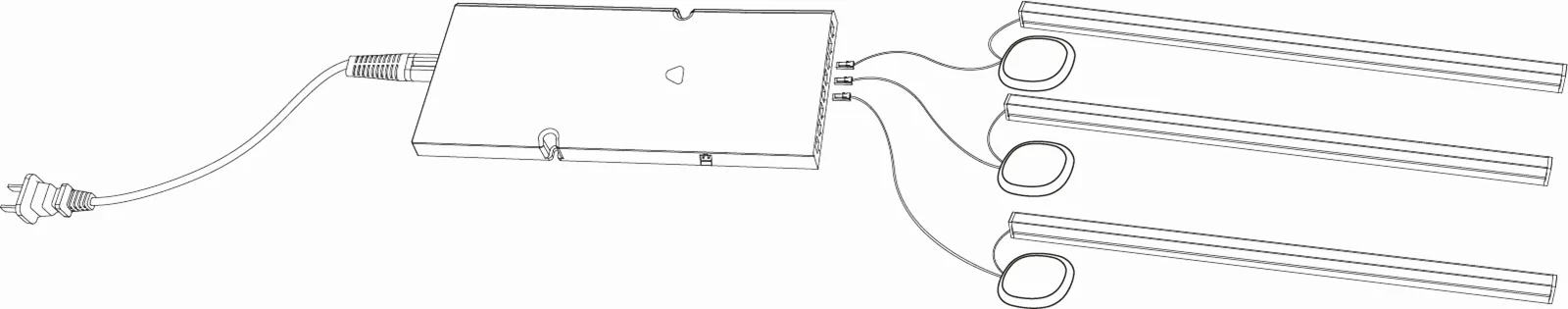

Wiring diagram
