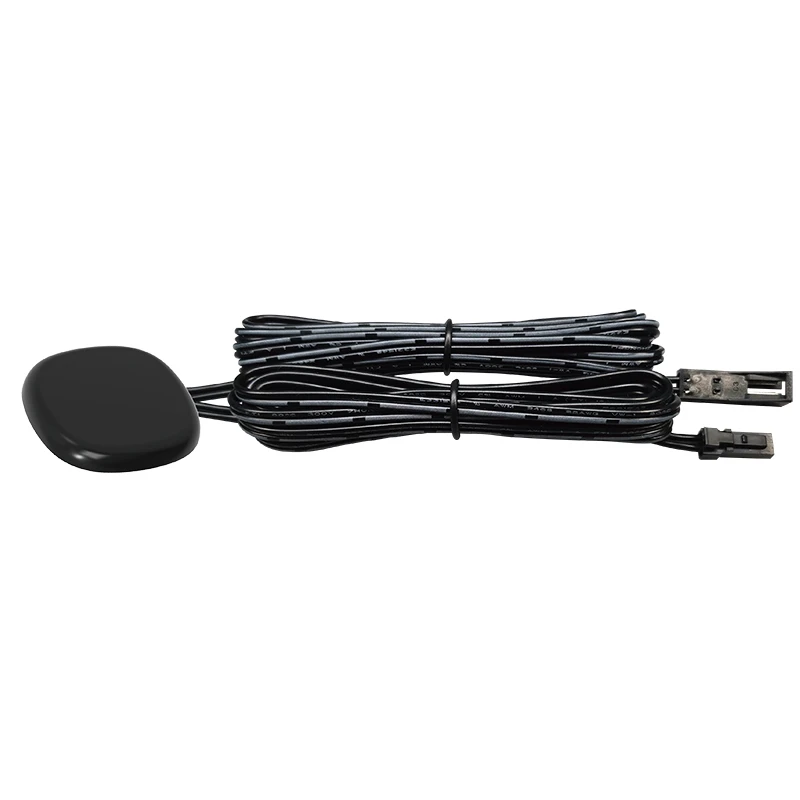

Hidden Human Presence Sensor Switch

Details

Description This human presence sensor switch can detect human presence through non-metallic materials less than 25 mm thick, such as wood, glass, and acrylic. Therefore, this sensor can be installed behind a panel or cabinet board. It is used to control 12V and 24V low-voltage LED strips. When...

Description

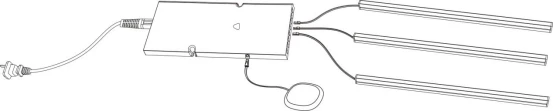

This human presence sensor switch can detect human presence through non-metallic materials less than 25 mm thick, such as wood, glass, and acrylic. Therefore, this sensor can be installed behind a panel or cabinet board. It is used to control 12V and 24V low-voltage LED strips. When a person is present, the light turns on automatically; when the person leaves, the light turns off. It is ideal for wardrobes, cabinets, shelves, display cases and smart lighting applications, offering convenient hands-free lighting with a clean, modern look.

▶Through-material sensing: works through non-metallic materials under 25 mm thick, such as wood, glass, and acrylic

▶Concealed installation: can be hidden behind panels or surfaces

▶Automatic lighting control: lights on when someone is present, lights off when they leave

▶Suitable for cabinets, wardrobes, shelves, display cases, and smart homes

Parameters

Control methods	Separate control/Centralized control
Input/output voltage	DC 12-24V
Cable length	1.5m
Load	12V≤60W/24V≤60W

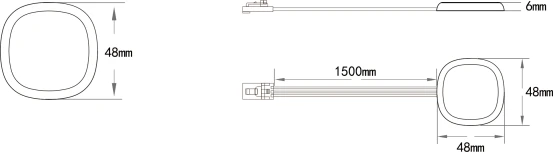

Sensor head size	48mm48mm6mm

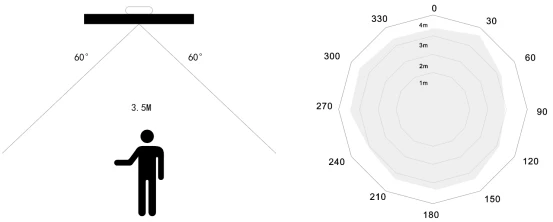

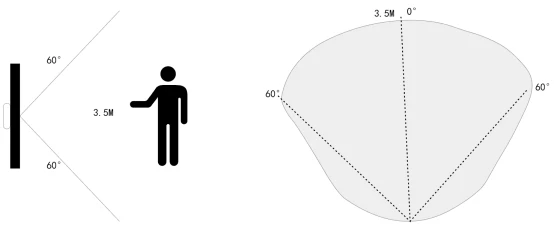

Sensing range	3.5M
Sensing angle	120°
Function	Turn on the lights when it detects a person and turn them off when they leave
Certification	CE,RoHS
Warranty	3 years
Model	LP-2024
