Description

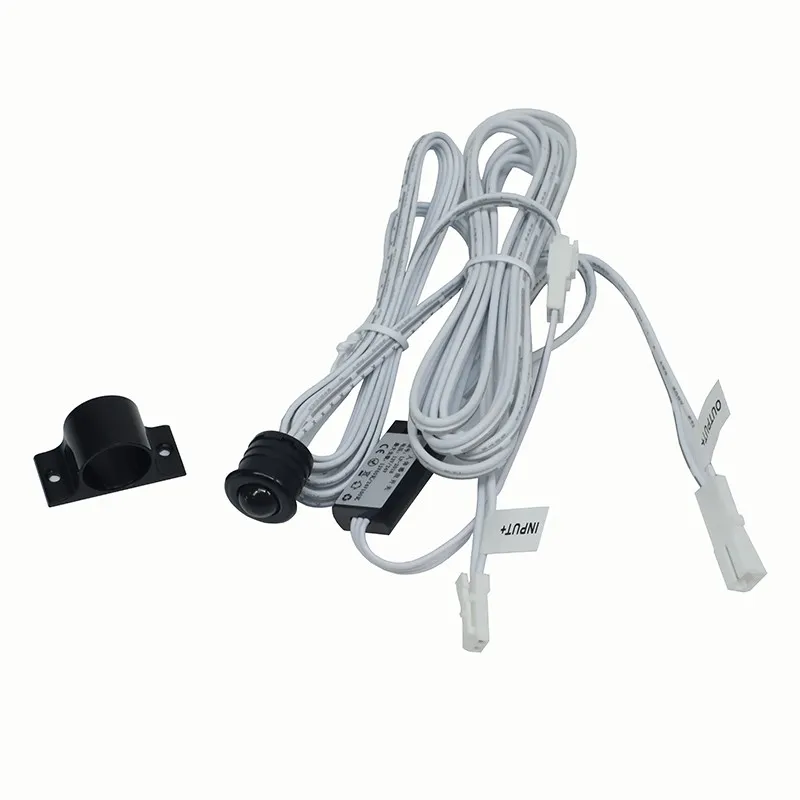

▶About this item - This PIR sensor switch is activated by human motion. It turns the light on when people enter its detection range and turns the light off 35 seconds after they leave.
▶Connection - The input connector is connected to the DC 12V/24V LED driver, and the output connector is connected to a low-voltage 12–24V DC LED light.
▶Quality guarantee - Its quality is consistent, highly sensitive, and very little affected by environmental temperature.
▶Available colors - We offer sensor head in black, silver, and white for you to choose from.
▶Wide application - This PIR sensor switch is ideal for lighting control in closets, wardrobes, kitchen cabinets and other cabinets. Its working voltages are 12V DC and 24V DC, which are the common input voltages for cabinet LED lights.
Parameters
|
Control mode |
Separate control |
|
Input/Output voltage |
DC 12-24V |
|
Power cable |
1.5m |
|
Load LED power |
12V≤60W/24V≤60W |
|
Sensor size |
13.6mm*φ14mm |
|
Drilling size for embedded mounting |
14mm |
|
Bracket size for surface mounting |
30mm*13.5mm*16mm |
|
Sensing distance |
0-3m |
|
Delay time |
35s |
|
Detecting angle |
120° |
|
Function |
Control the light comes on when people come and goes off when people leave |
|
Certification |
CE,RoHS |
|
Warranty |
3 Years |
|
Brand name |
Lampow |
|
Model |
LP-2018 |

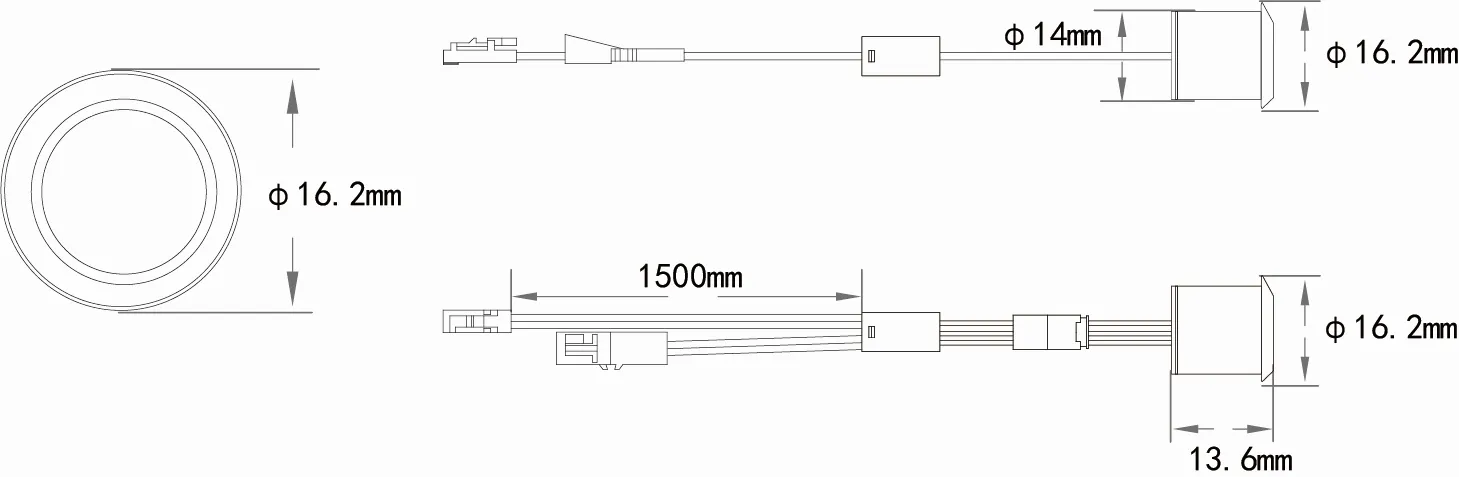

Size

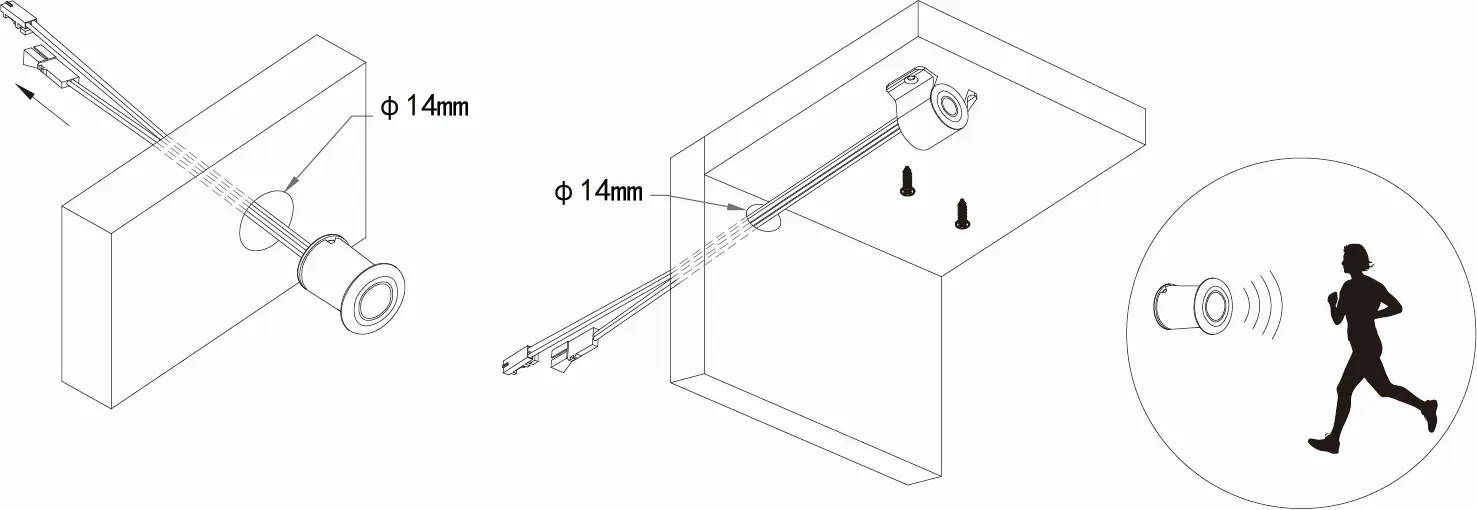

Installation
Wiring diagram
