Description

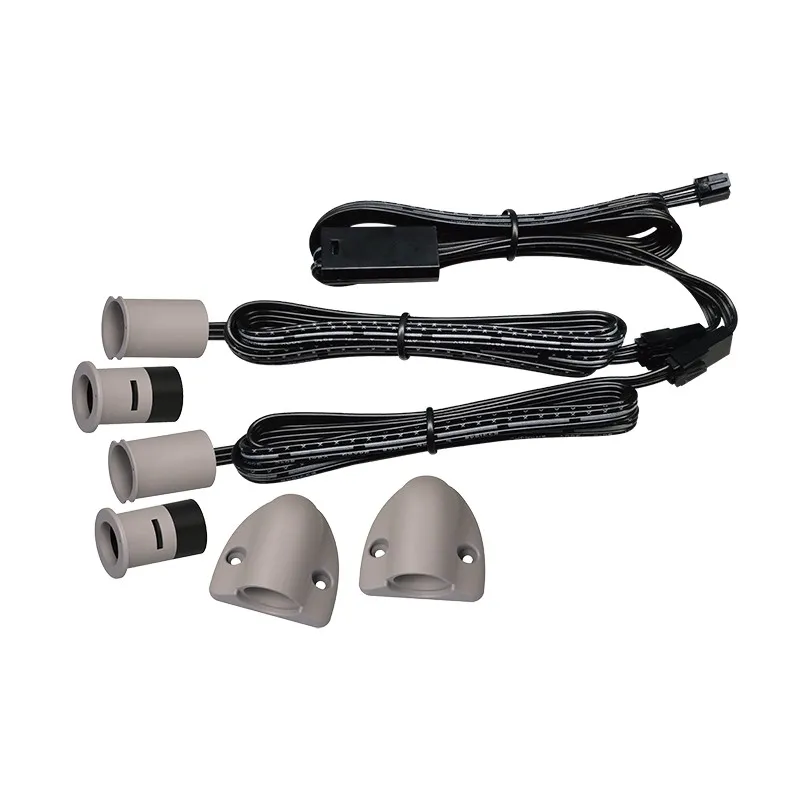

▶About this item - This infrared (IR) double-door sensor switch is activated when the cabinet door is opened or closed. When you open any side of the double door, this door sensor switch will turn on the LED lights automatically. When you close both doors, this door sensor switch will turn off the LED lights. It is designed for use with DC 12/24V in-cabinet/closet LED lights.
▶High quality - It uses ICs that provide consistent quality and strong resistance to interference and can sense black material normally.
▶Detachable design - Its detachable design makes installation and replacement very simple, and facilitates future maintenance.
▶Optional surface or embedded mounting - We provide a base and screws for surface mounting. If embedded mounting is more suitable for your project, the mounting hole will be just 12 mm in diameter.
▶LED cabinet light switch – perfect for controlling the lighting in cabinets, wardrobes, closets, display cabinets and cupboards.
Parameters
|
Control mode |
Centralized control |
|
Input/Output voltage |
DC 12-24V |
|
Power cable |
2m |
|
Load LED power |
Depending on the transformer load |
|
Drilling size for embedded mounting |
12mm |
|
Bracket size for surface mounting |
28.3mm*28.7mm*16mm |
|
Sensing distance |
0-8cm |
|
Function |
Open any side of the double door lights on, both doors closed lights off |
|
Certification |
CE, RoHS |
|
Warranty |
3 Years |
|
Brand name |
Lampow |
|
Model |
LP-5038S2M-BJ |

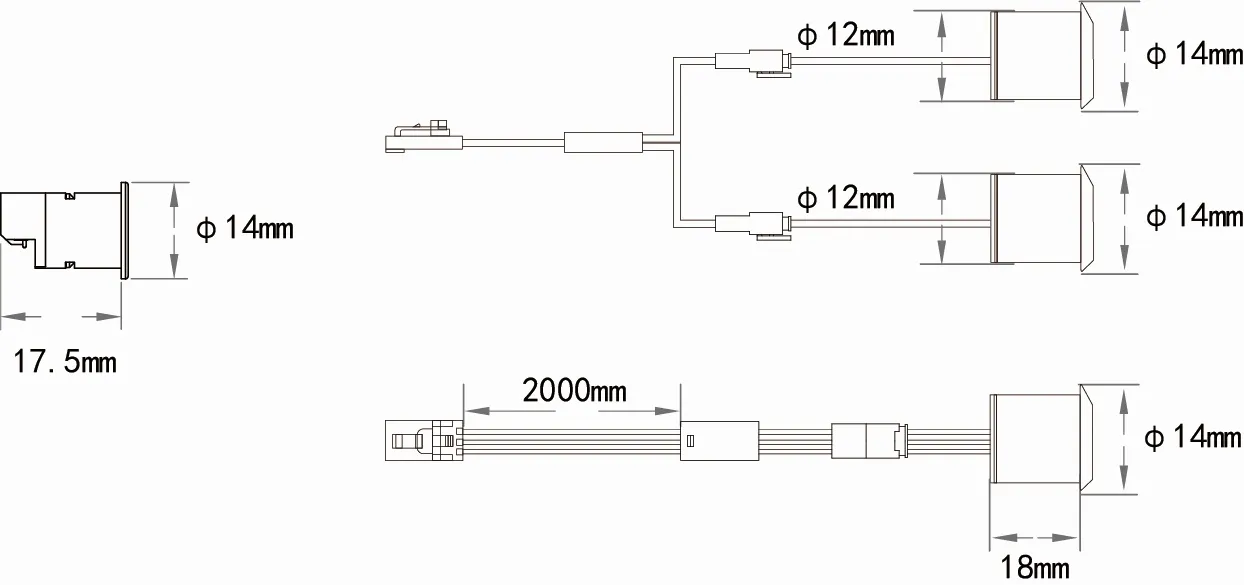

Size

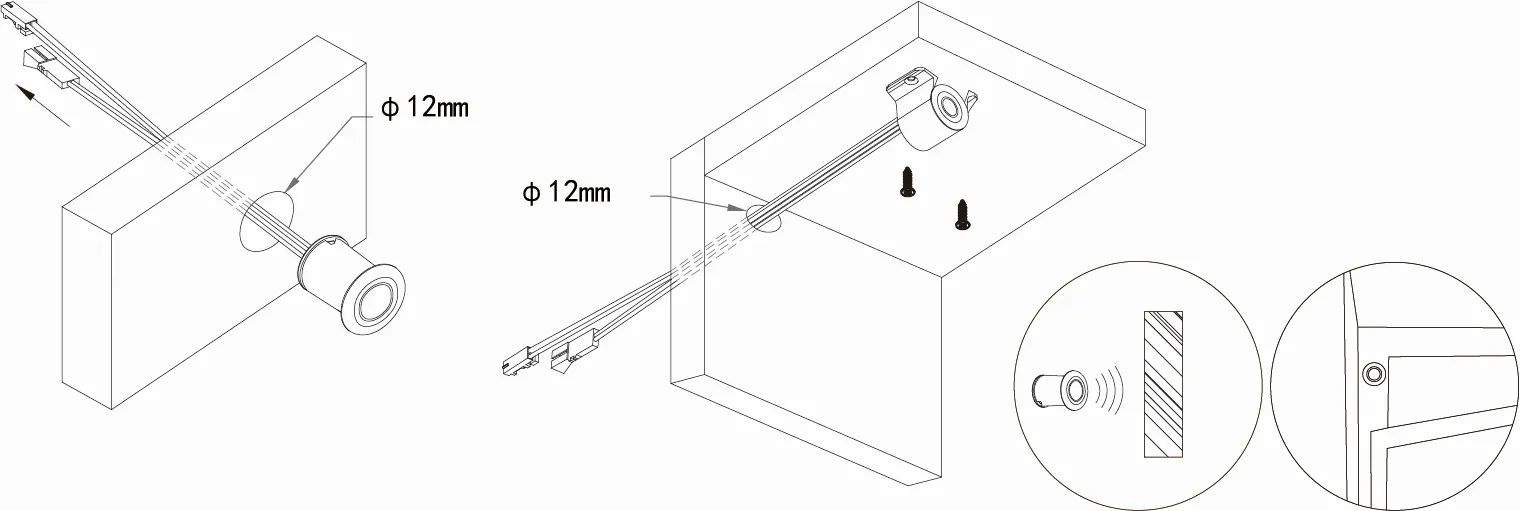

Installation

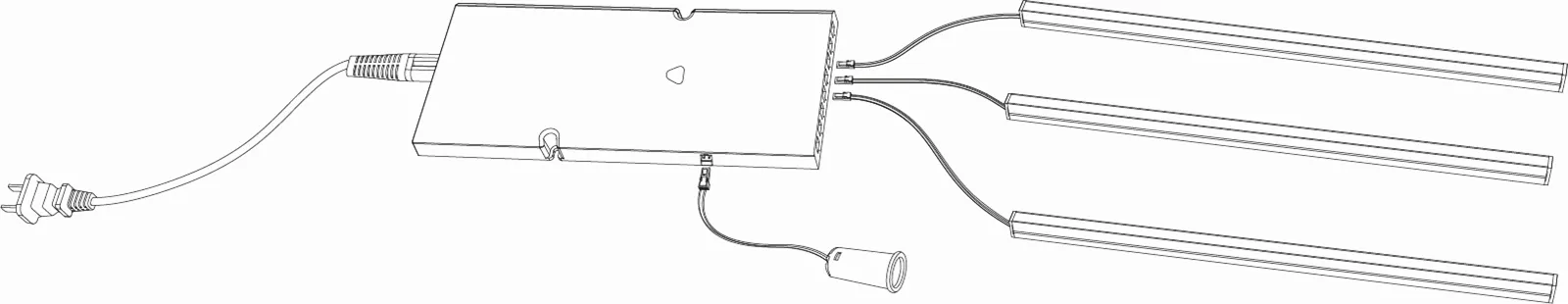

Wiring diagram
