Description

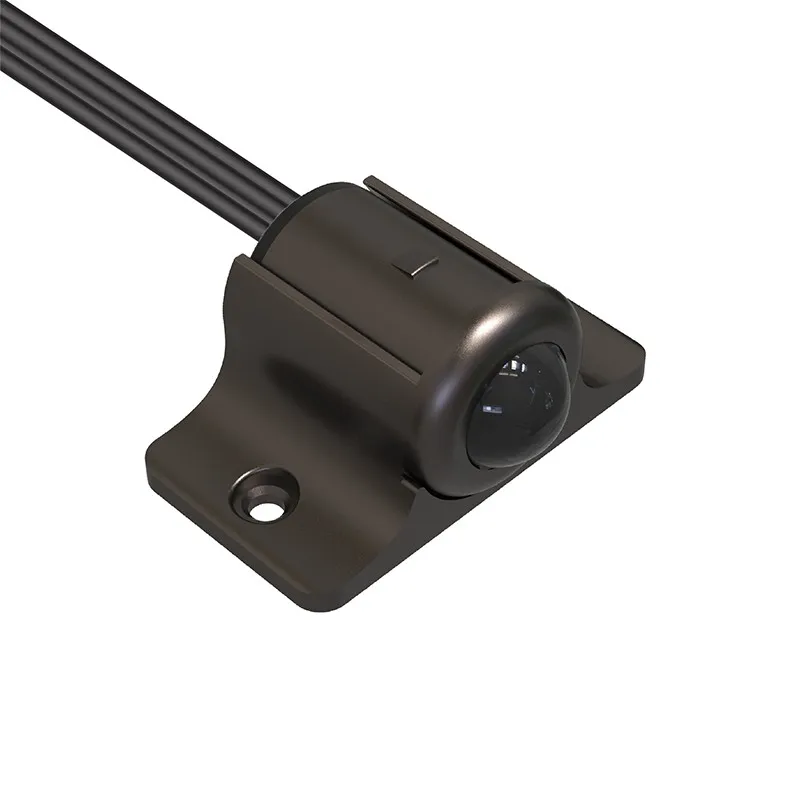

▶About this item - This switch is compatible with both 12V and 24V lights. It has a maximum output current of 5A and a maximum output power of 60W. It turns the light on when people enter its detection range and turns the light off 35 seconds after they leave.
▶Quality guarantee - It offers consistent performance, high sensitivity, and is minimally affected by ambient temperature.
▶Easy to install - Both surface mounting and embedded mounting are available.
▶Energy Saving - If you forget to turn the lights off, the light will automatically turn off 30 seconds after you leave.
▶Wide application range - Compatible with DC 12-24V low-voltage LED lighting systems, this sensor switch is widely used in residential and commercial applications such as kitchen cabinets, wardrobes, storage units, and closets.
Parameters
|
Control mode |
Separate control |
|
Input/Output voltage |
DC 12-24V |
|
Power cable |
1.5m |
|
Load LED power |
12V≤60W/24V≤60W |
|
Sensor size |
12mm*15.5mm |
|
Drilling size for embedded mounting |
12mm |
|
Bracket size for surface mounting |
17mm*30mm*14mm |
|
Sensing distance |
0-3m |
|
Delay time |
35s |
|
Detecting angle |
120° |
|
Function |
Control the light comes on when people come and goes off when people leave |
|
Certification |
CE,RoHS |
|
Warranty |
3 Years |
|
Brand name |
Lampow |
|
Model |
LP-2020MINI |

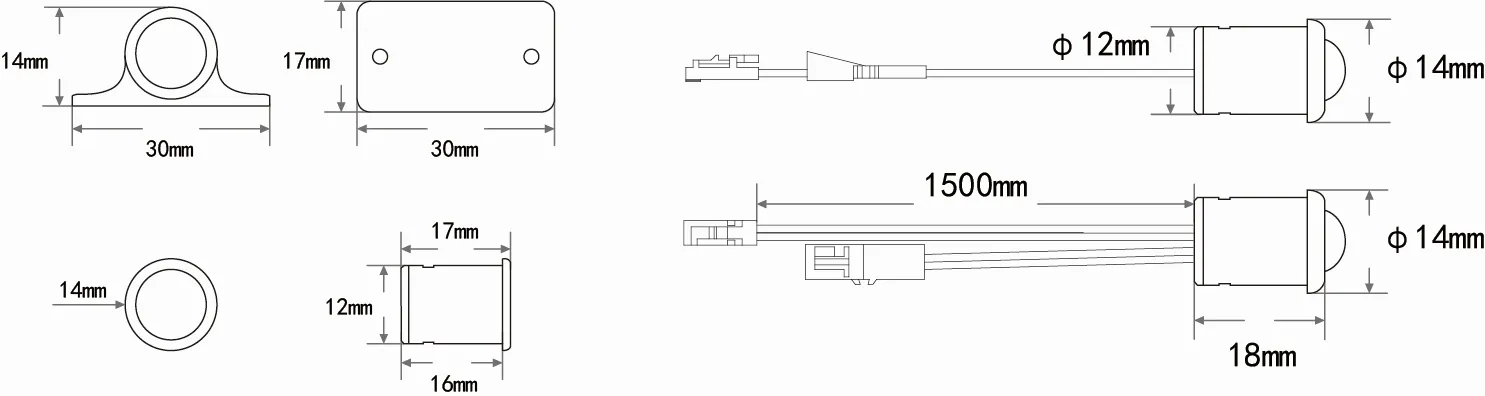

Size

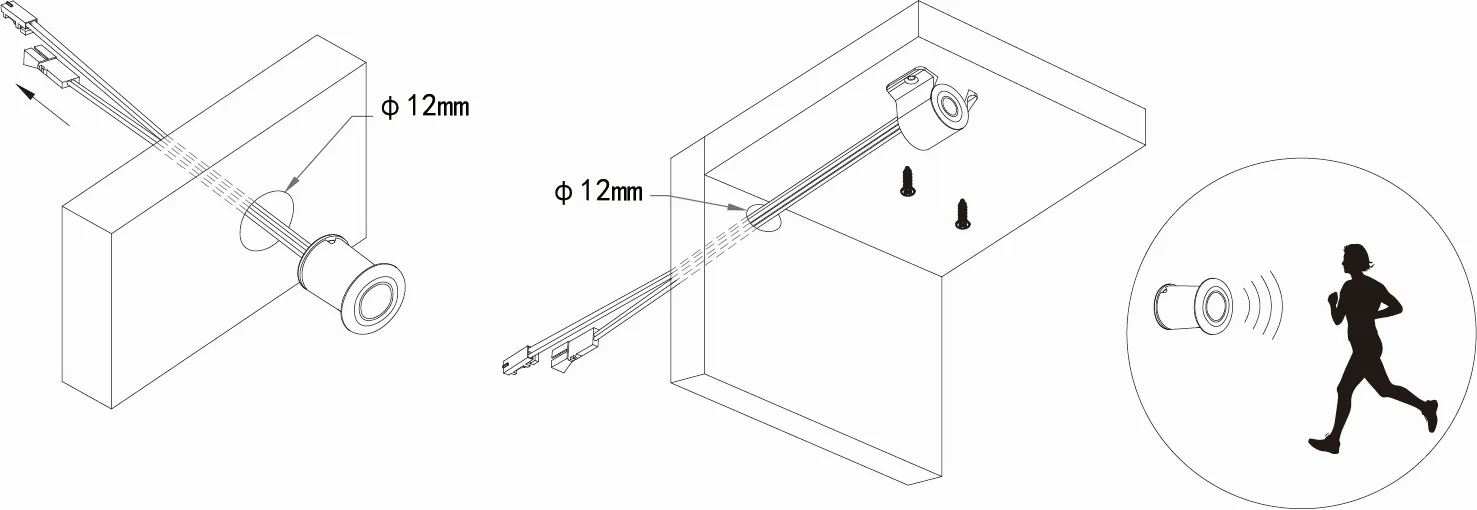

Installation

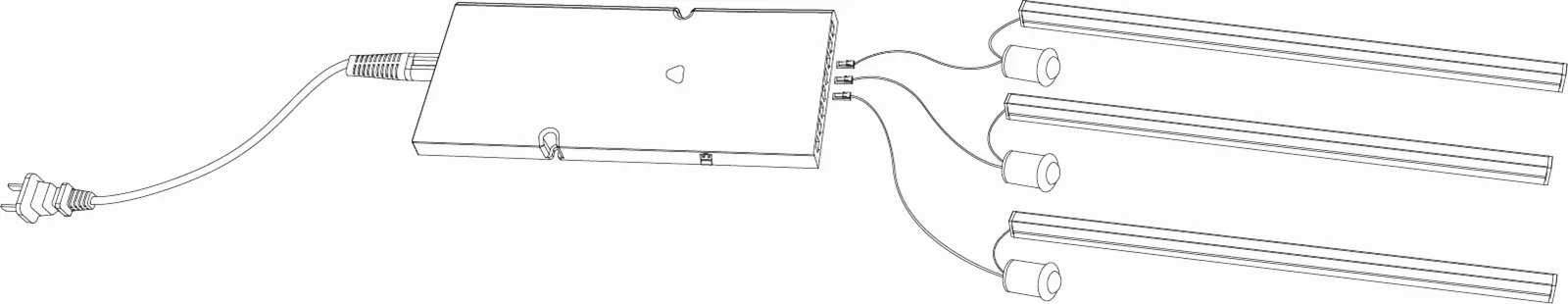

Wiring diagram
