Description
This wireless touch sensor switch uses 2.4GHz RF wireless control and must be paired with our receiver to control LED lights wirelessly. Press the switch to turn the light on or off. Press and hold to dim the light smoothly. It has a memory function. When the light is switched on, it has the same setting as when it was last switched off. This wireless switch is compact, requires no wiring and offers a long transmission range. It is suitable for controlling a wide range of constant-voltage LED lights.
Parameters
|
Product name |
2.4 GHz Wireless touch sensor switch |
|
Model |
LP-3010K |
|
Control mode |
2.4G wireless |
|
Battery information |
350mah 3.7v (please ensure that the battery is charged at least once every 6 months) |
|
Charger |
5V-1A, standard type-c |
|
Sensor switch size |
L: 45*W: 45*H: 15mm |
|
Trigger mode |
Short press/long press |
|
Function |
Short press to control the light to turn on/off; long press for stepless dimming |
|
Certification |
CE, RoHS |
|
Warranty |
3 Years |
Size
Instructions
1. Power on
The sensor switch is switched off by default when you receive it. Press the A button to switch it on, the indicator light will turn on and flash. Long-press the button for three seconds to switch it off.

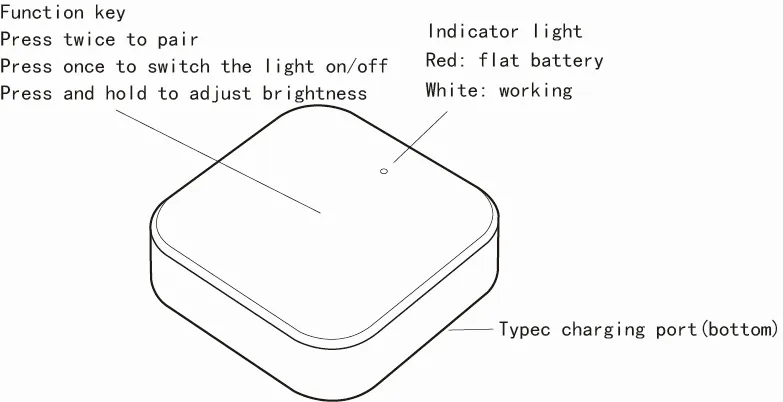

2. Details
Type-c charging port(open the bottom base cover)
Function:
Press twice to pair
Press the switch to turn the light on or off
Press and hold to dim the light smoothly
Indicator light
Red: Low power, needs charging(the white indicator light will flash when charging is complete)
White: Working

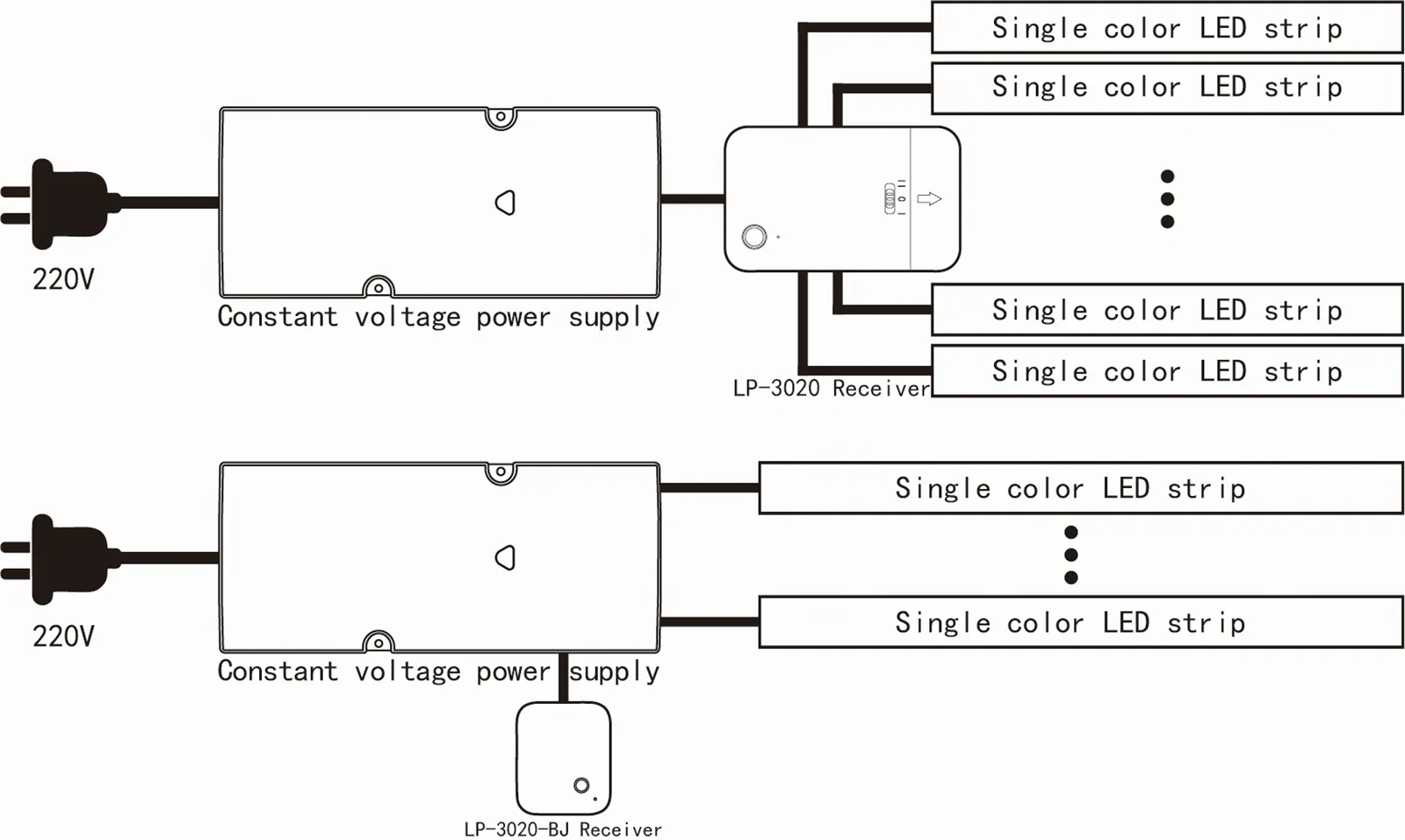

Wiring diagram
*This 2.4 GHz wireless sensor switch must be used with the receiver(please refer to the receiver details page for pairing instruction).

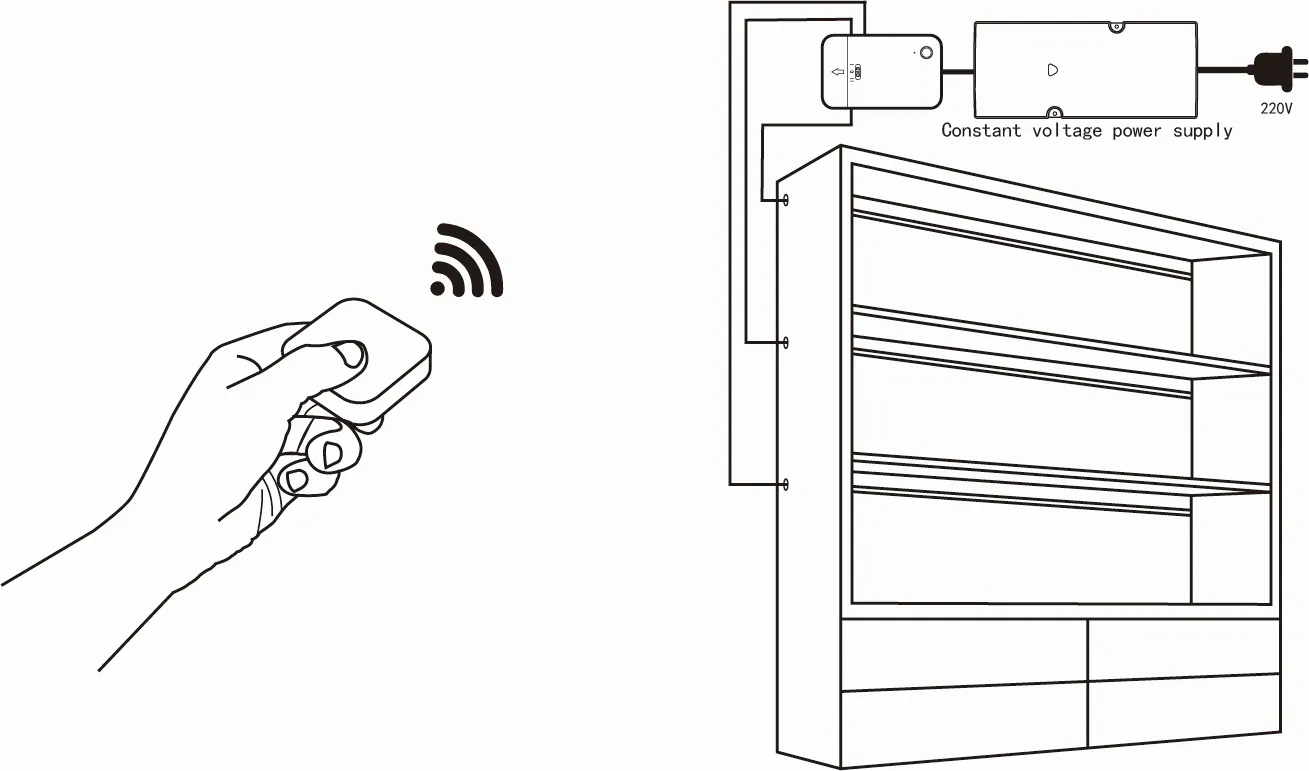

Installation
There is double-sided adhesive on the bottom of the switch.
Installation note:
①This sensor switch is not waterproof and should not be used in damp areas. Please save it in an indoor, dry environment.
②Its working temperature (Ta) is -20 to 40°C, so do not use the device in high-temperature areas.
2.4G mesh
The reception range between the sensor switch and the receiver is 10m. However, the receivers can transmit signals to one another within 10m, thereby achieving synchronous control over long distances.
