Description
This wireless PIR sensor switch is part of our 433MHz wireless sensor switch series. It communicates with our receiver via a 433 MHz frequency to enable wireless control of the lamps. This switch detects human movement within its detection range and controls the turn on or off. If no movement is detected, it turns the lights off after a 35-second delay. 433 MHz wireless sensor switch series is a reliable and convenient solution for remote control of your home or office lighting.
Parameters
|
Product name |
433MHz Wireless PIR sensor switch |
|
Model |
LP-2925PIR |
|
Charging method |
Type C (does not support fast charging) |
|
Battery capacity |
300mah |
|
Sensor switch size |
L: 50mm W: 43mm H: 24mm |
|
Sensor switch base size |
L: 54mm W: 50mm H: 12mm |
|
Trigger mode |
Human movement |
|
Detecting distance |
0-3m |
|
Delay time |
35S |
|
Detecting angle |
120° |
|
Function |
When the sensor switch detects human movement, the light switches on; when no movement is detected, the light switches off |
|
Certification |
CE, RoHS |
|
Warranty |
3 Years |
Size
Function
When the sensor switch detects human movement, the light switches on; when no movement is detected, the light switches off after 35 seconds.

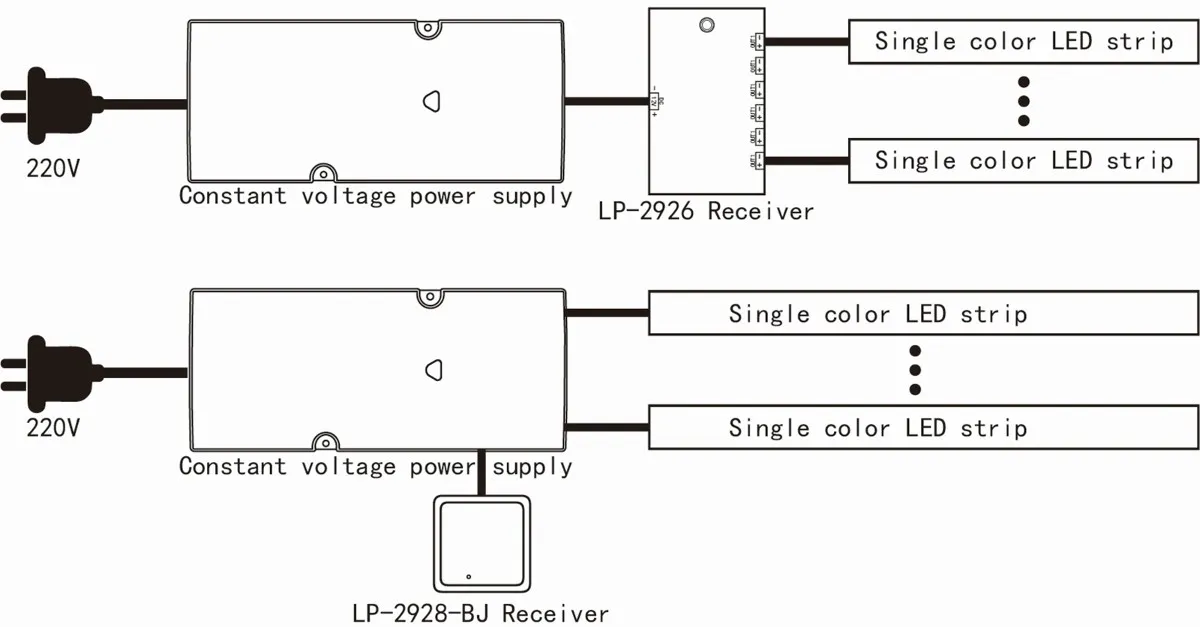

Wiring diagram
*Work with the 433 MHz frequency wireless receiver(for pairing instructions, please refer to the receiver's details page).

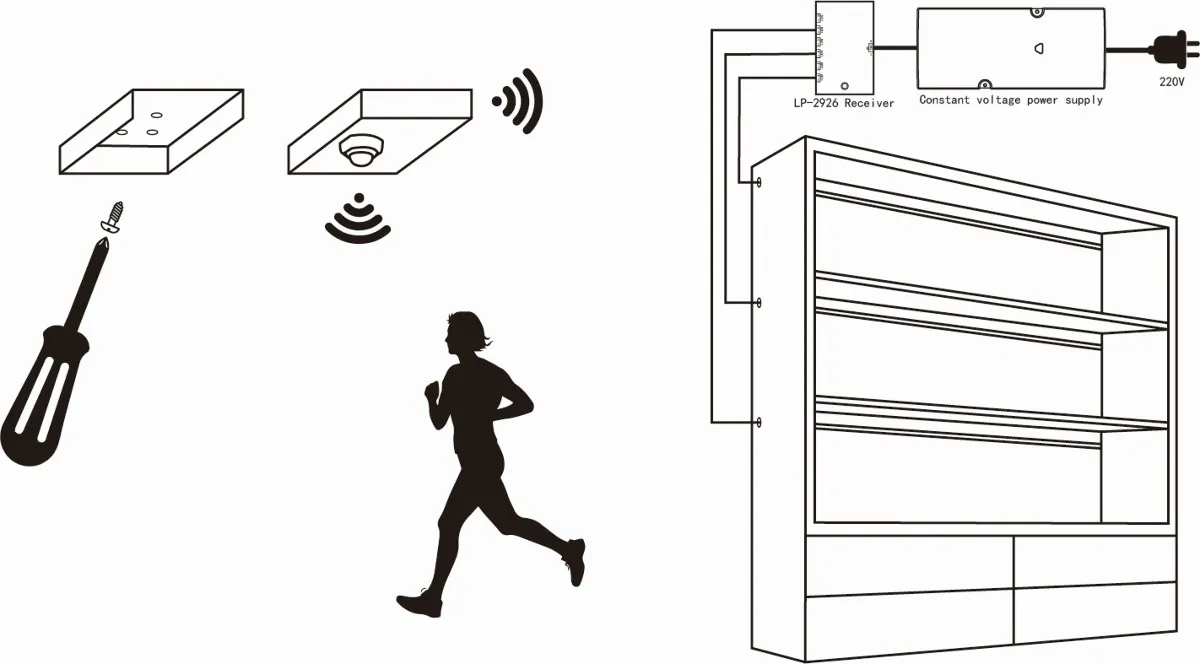

Installation
▷It can be secured with screws or double-sided tape.
▷It is advisable to install it at a height of at least 1.2m above the ground.
▷There must be no barriers or other obstructions within the detection range and no objects that move frequently.
