Description

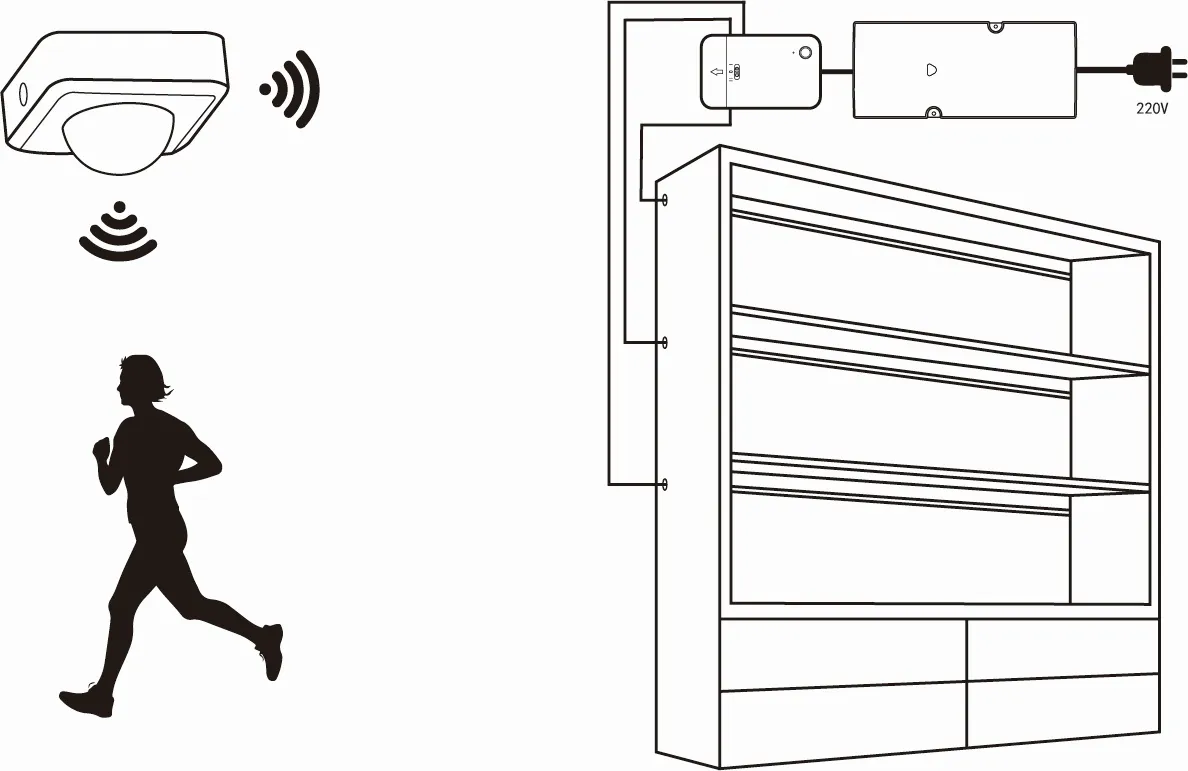

This wireless PIR sensor switch uses 2.4GHz radio frequency wireless control technology and must be paired with our receiver to enable wireless control of lighting fixtures. It has a detection distance of 0–3m and a detection angle of 120°. The lights are automatically turned on when someone enters the detection range and turned off after 35 seconds if no movement is detected. It is also a light control switch with 2 operating modes. You can set it to operate either 24 hours a day or just when it's dark, which is great for saving energy.
Parameters
|
Product name |
2.4 GHz Wireless PIR sensor switch |
|
Model |
LP-3010PIR |
|
Control mode |
2.4G wireless |
|
Battery information |
350mah 3.7v(please ensure that the battery is charged at least once every 6 months) |
|
Charger |
5V-1A, Type-C charging port |
|
Sensor switch size |
L: 40*W: 40*H: 23mm |
|
Trigger method |
Human movement |
|
Detecting distance |
0-3m |
|
Delay time |
35S |
|
Detecting angle |
120° |
|
Function |
Control the lights come on when people come and go out when people leave |
|
Certification |
CE, RoHS |
|
Warranty |
3 Years |
Size
Instructions
1. Power on
The switch is switched off by default. To switch it on, press the A button, the indicator light will illuminate and flash. Press and hold the button for 3 seconds to switch it off.

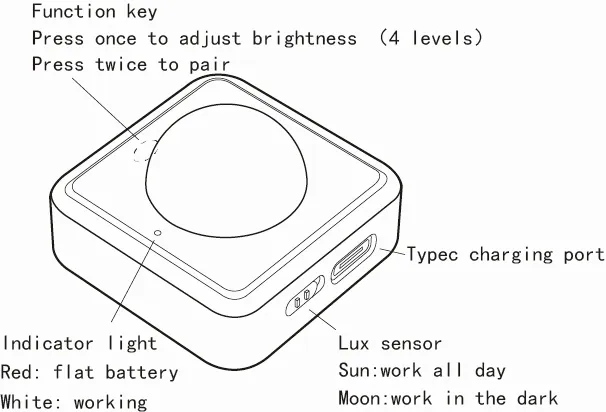

2. Function
Function key:
Press once to adjust brightness(4 levels)
Press twice to pair with the receiver
Indicator light
Red: Low power, needs charging(when charging is complete, the white indicator light will turn white)
White: Working
Lux sensor
Sun: Work all day
Moon: Work in the dark

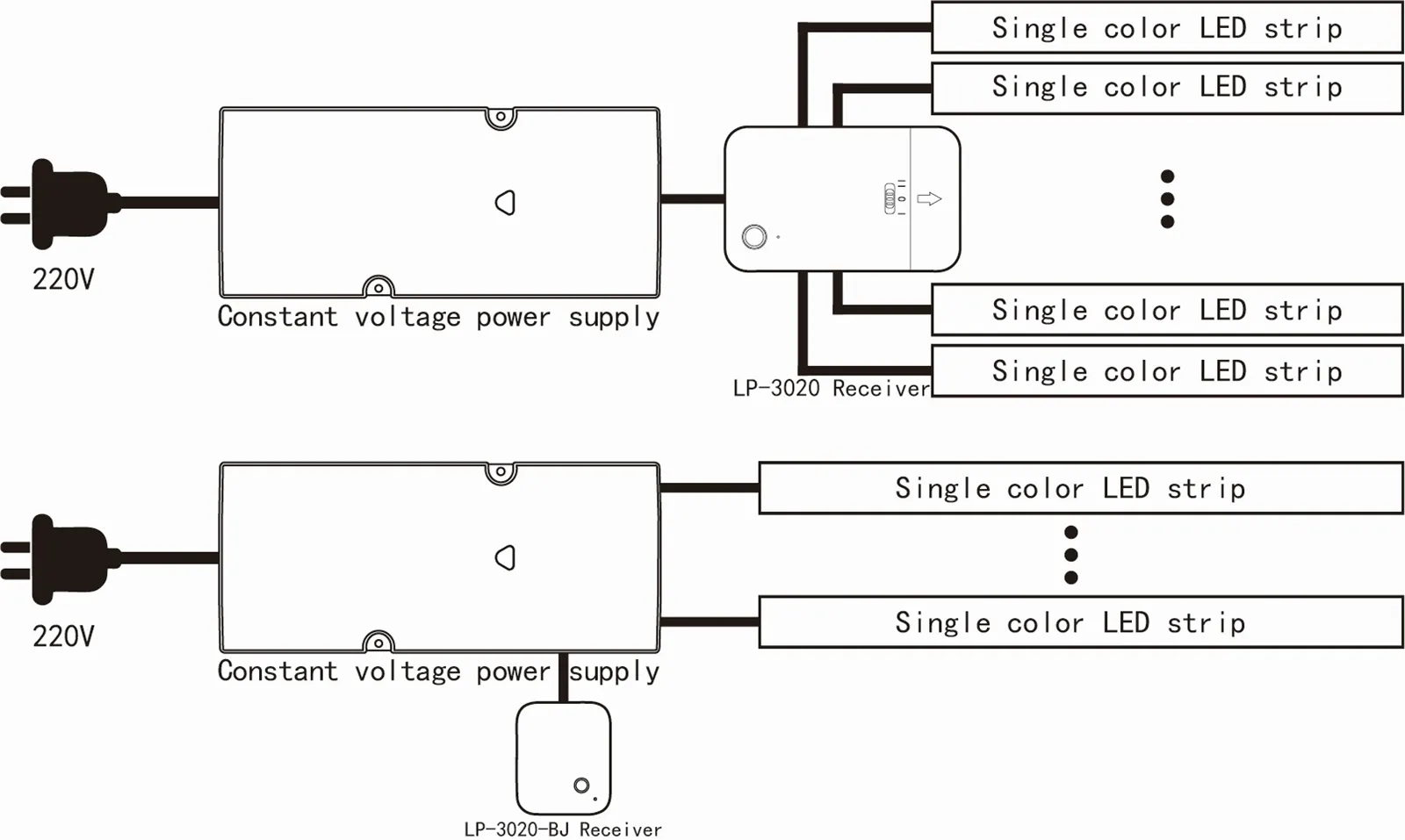

Wiring diagram
*This 2.4 GHz wireless sensor switch must be used with the receiver(please refer to the receiver details page for pairing instruction).
Installation
Double-sided adhesive tape is on the bottom of the switch for installation.
Installation notes:
- Please install it away from heat sources such as radiators, air conditioning units and stoves.
- The motion sensor has a detection angle of 120 degrees and is effective within this range.
- The installation height should not be too high or too low above the floor. (1.2 m to 2.5 m is optimal)
- Do not install in areas with strong air currents, such as air ducts.
- There must be no barriers or obstructions within the detection range, nor any objects that move frequently.
