Description

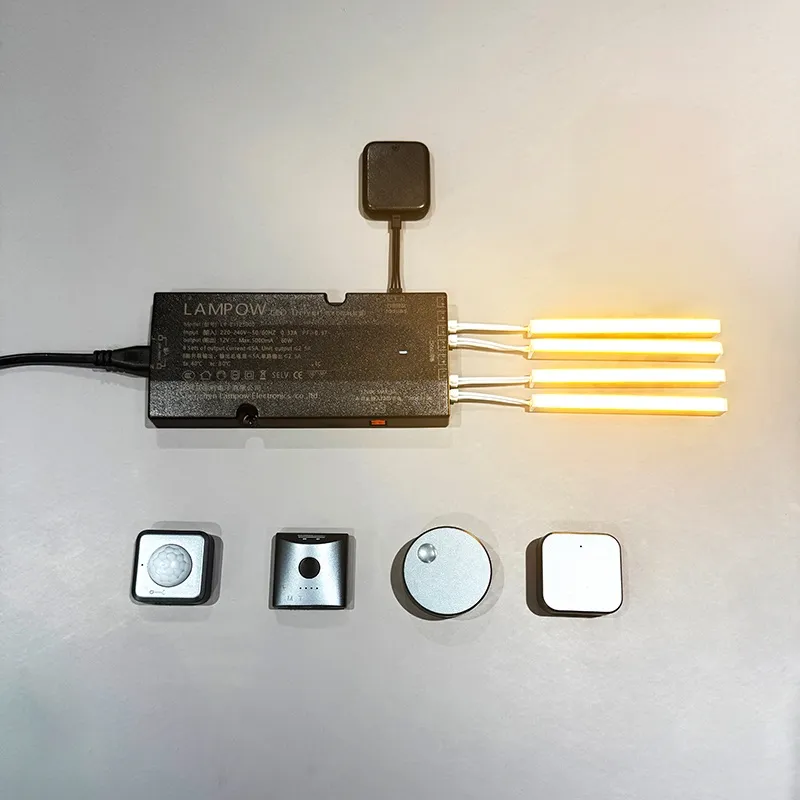

This centralized control receiver is part of our 2.4 GHz sensor switch series. It communicates with our wireless sensor switches via 2.4 GHz to control lighting. It can be paired with our wireless sensor switches that perform different functions, such as wireless PIR sensor switches, wireless touch sensor switches, and wireless IR sensor switches. This provides a variety of lighting control options. This receiver has a transmission range of 10m, and the signal transmission between paired devices is very stable, even through walls. It features fast pairing, stable signal transmission, and compact size. Ideal for home and commercial lighting applications.
Parameters
|
Product name |
2.4G wireless centralized control receiver |
|
Model |
LP-3020-BJ |
|
Control mode |
Centralized control |
|
Input/output voltage |
DC 12-24V |
|
Size |
L: 50*W: 42*H: 10mm |
|
Receiving range |
10m |
|
RF receive frequency |
2.4GHz |
|
Load LED power |
Depending on power supply load |
|
Power cable |
5cm |
Size
Pairing

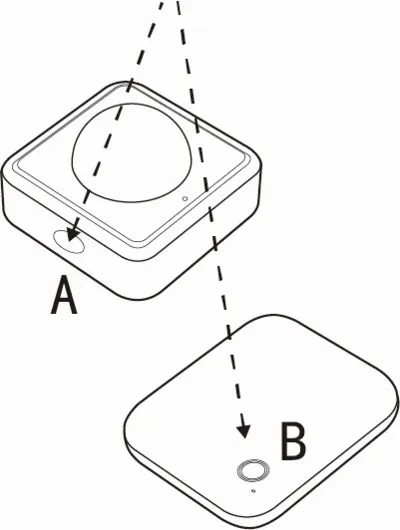

Method 1: Press pairing button B on the receiver for 1s, then press pairing button A on the sensor switch twice, the connected lamps will flash 3 times to indicate that pairing is complete.
Method 2: Within 20s of the receiver being powered up, double-press the pairing button A on the sensor switch within 1 m of the receiver, the lamps will flash 3 times to indicate that pairing is complete. (Suitable for cases where the receiver cannot be operated)
Wiring diagram
It must be connected to a DC 12/24V power supply with a 3-pin centralized control port. The LED lighting is connected directly to the power supply.
