Description
This wireless hand wave/door sensor switch operates via 2.4GHz RF and requires pairing with our receiver to enable wireless control of lighting fixtures. This switch has two modes. In one mode, it functions as a hand wave sensor switch that is activated by hand wave movement. In the other mode, it functions as a door sensor switch that is activated by opening and closing the door. It is widely used for lighting control in cabinets, wardrobes, wine cabinets and other cabinets.
Parameters
|
Product name |
2.4 GHz Wireless hand wave/door sensor switch |
|
Model |
LP-3010MT |
|
Control mode |
2.4G wireless |
|
Battery information |
400mah 3.7v type-c |
|
Sensor switch size |
L: 42*W: 42*H: 15mm |
|
Trigger modes |
T: hand wave movement/M: open or close the door |
|
Detecting distance |
0-8cm |
|
Function |
Wave your hand to control the light to turn on/off; the door's opening and closing activates and deactivates the lights |
|
Certification |
CE,RoHS |
|
Warranty |
3 Years |
Size
Instructions
1. Power on
The switch is switched off by default. To switch it on, press the A button, the indicator light will illuminate and flash. Press and hold the button for 3 seconds to switch it off.

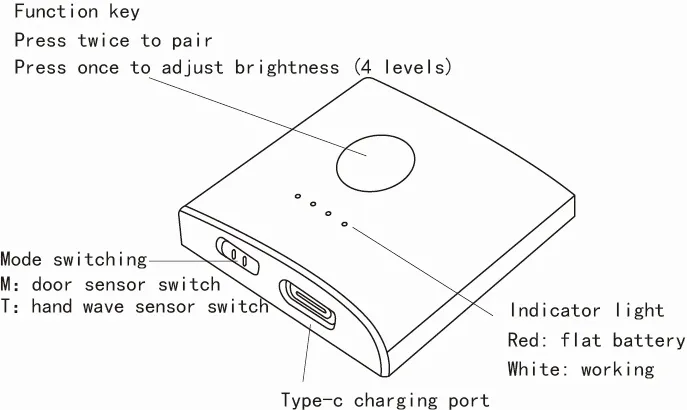

2. Details
Type-c charging port
Function key
Press once to adjust brightness(4 levels)
Press twice to pair with the receiver
Mode switching
M: Door sensor switch-opening and closing the door controls the lights, turning them on and off.
T: Hand wave sensor switch-wave your hand to control the light to turn on/off
Indicator light
Red: Low power, needs charging
White: Working
3. Charging
If the indicator light turns red and starts flashing, this indicates that the sensor is running low on power and needs to be charged promptly.
Charger: 5V-1A
Charging complete: the white indicator light flashes
△To maintain the battery's performance, please ensure that it is charged at least once every six months.

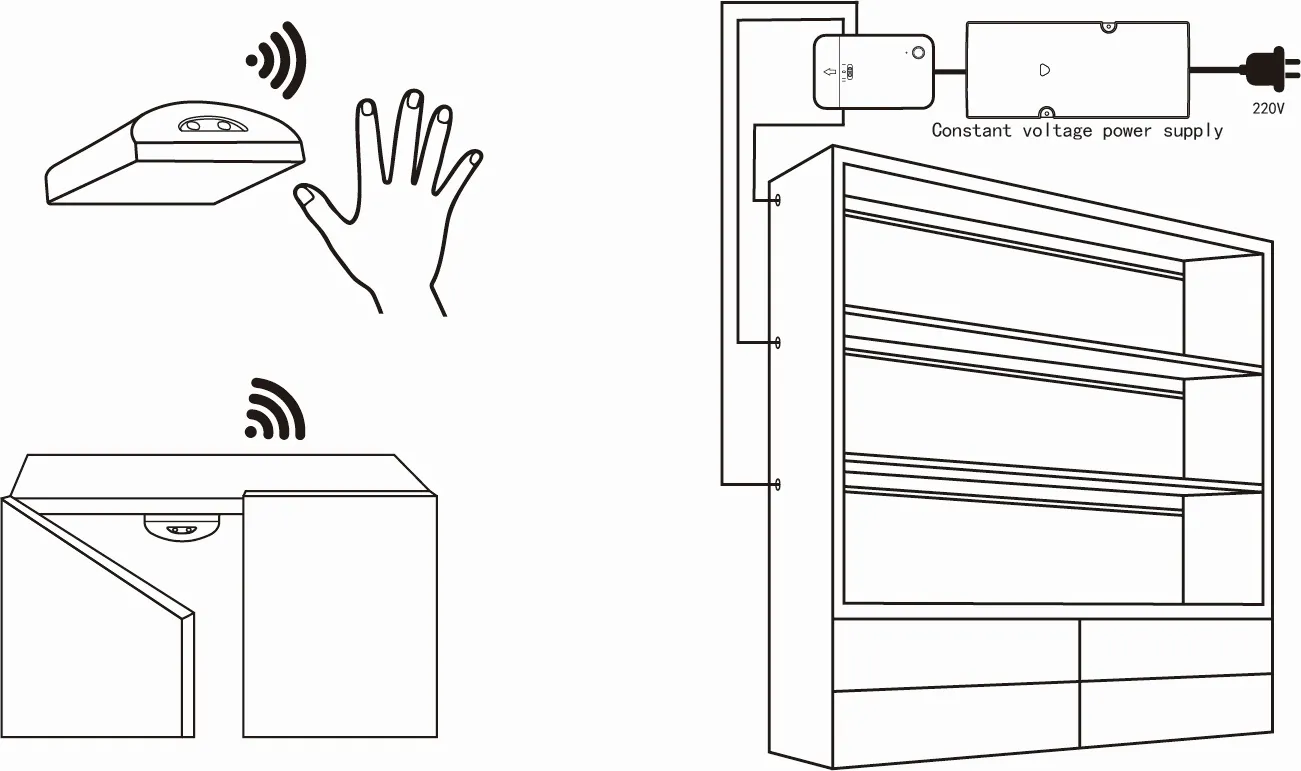

Installation
Secure it in a suitable position using the double-sided adhesive tape on the back of the switch.

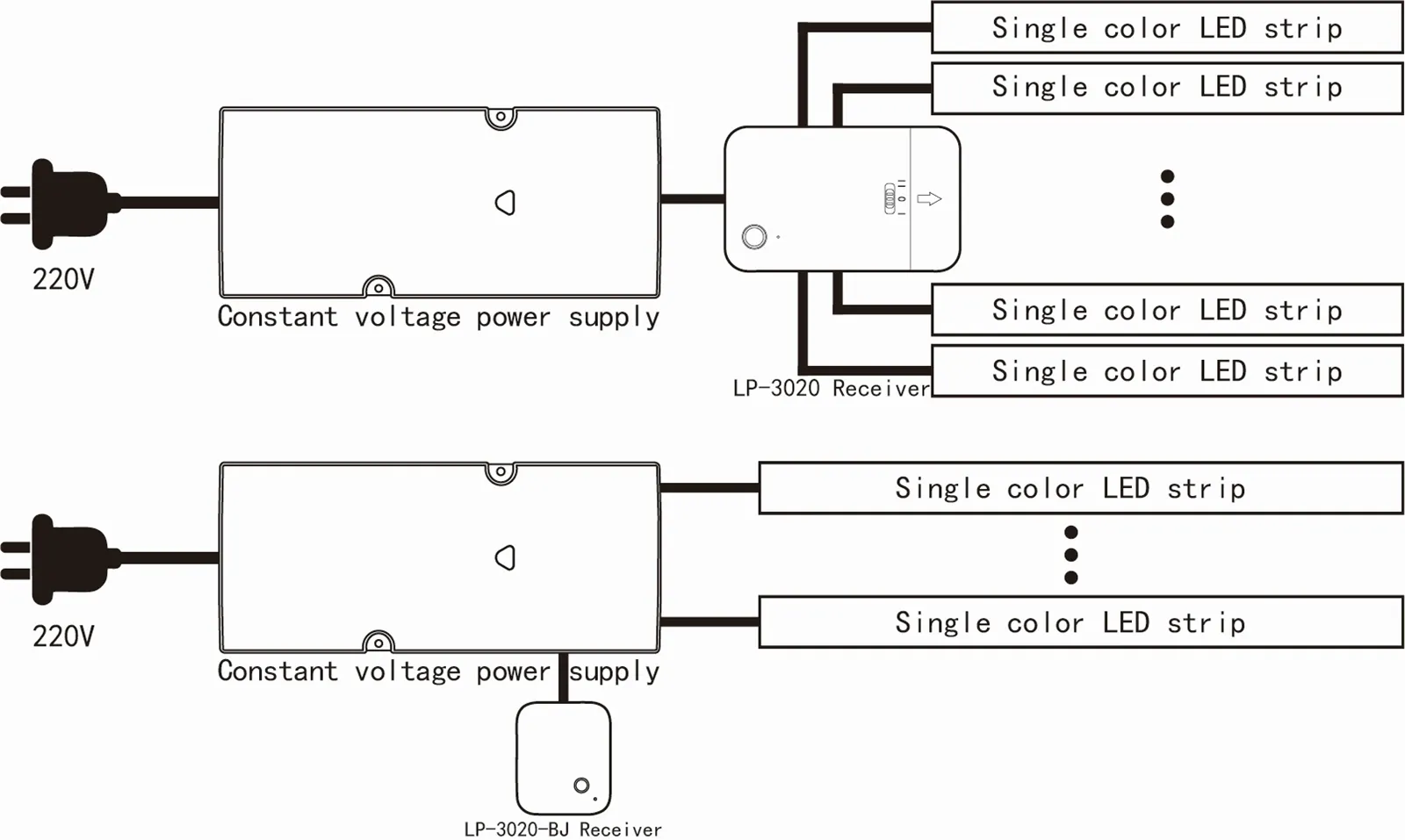

Wiring diagram
*This 2.4 GHz wireless sensor switch must be used in conjunction with our receiver (please refer to the receiver's details page for pairing instructions).
Packing and Delivery time

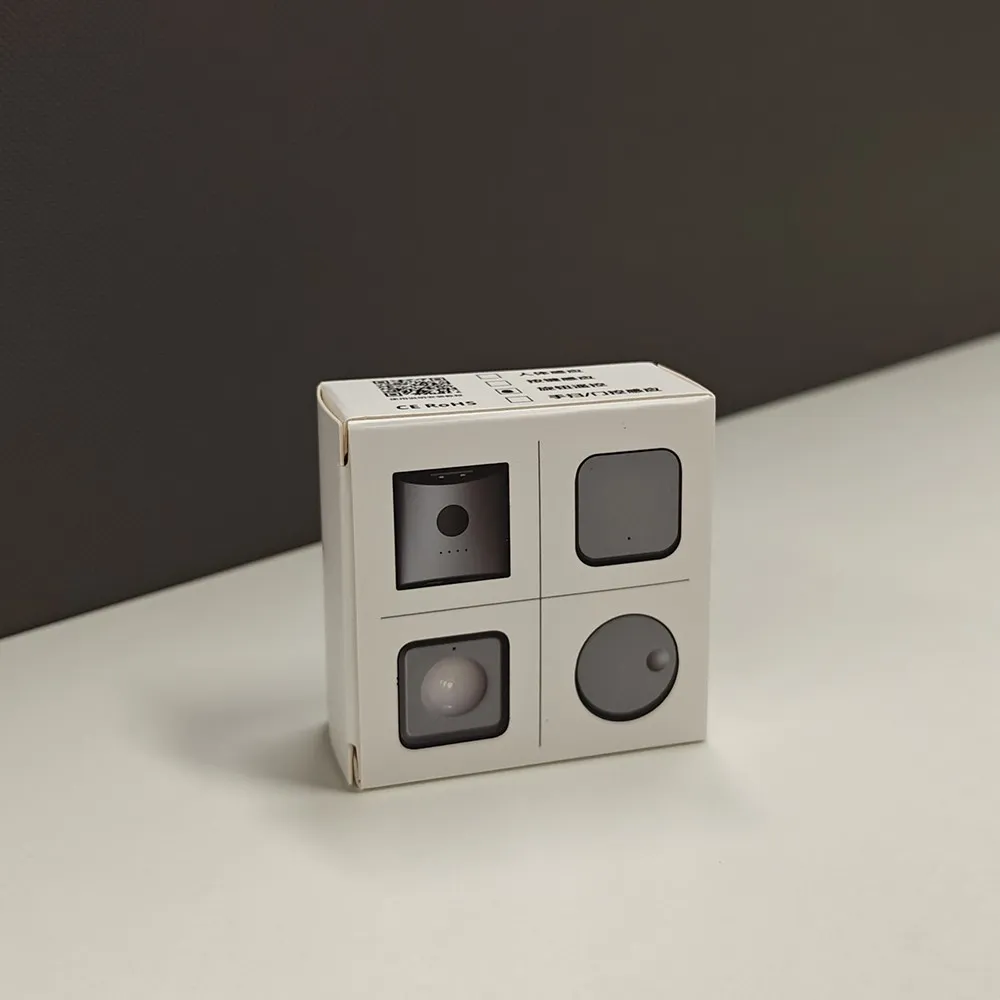

Each product is packaged in a paper box.
It will take about 7–15 days after the order is confirmed. This mainly depends on the quantity of your order. We will keep you updated throughout the production process.
