Description

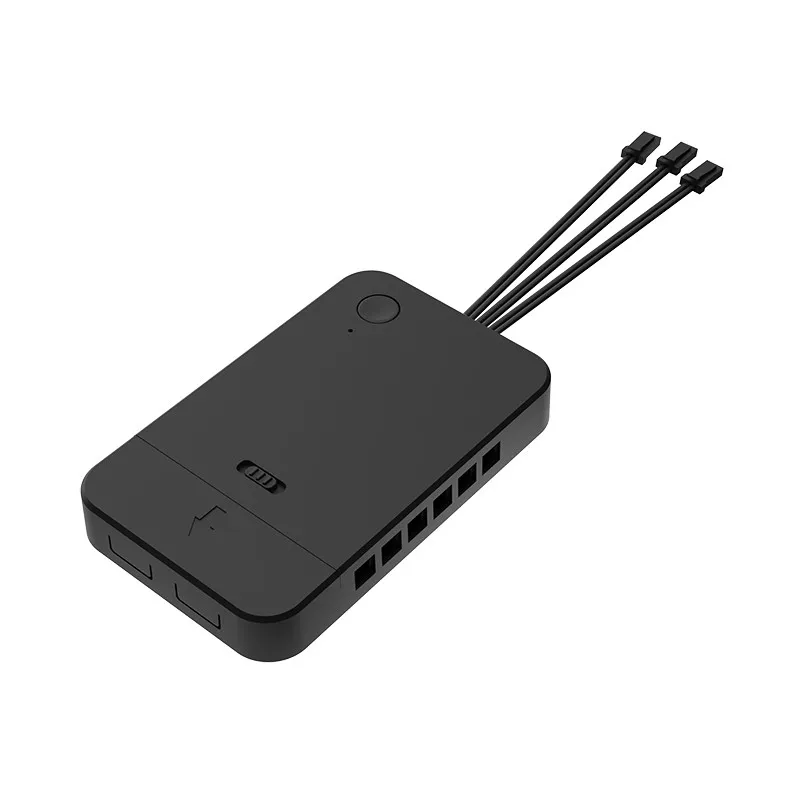

This dual color temperature receiver is part of our 2.4 GHz sensor switch series. It communicates with other devices via a 2.4 GHz wireless network, enabling coordinated control of lighting functions such as switching on/off, dimming, and changing the color temperature. This receiver is specifically designed to work with our products featuring adjustable color temperature. This receiver has a transmission range of 10m, and the signal transmission between devices remains very stable even when obstructed by walls. It is suitable for DC 12-24V low voltage dual color temperature LED lights. You can adjust the color temperature of the light strips to suit different environments and requirements.
Parameters
|
Product name |
2.4G Wireless dual color temperature receiver |
|
Model |
LP-3020CW |
|
Control mode |
Separate control |
|
Input/output voltage |
DC 12-24V |
|
Size |
L: 100mm W: 60mm H: 13.5mm |
|
Receiving range |
10m |
|
RF receive frequency |
2.4GHz |
|
Power cable |
10cm |
|
Output ports |
Six on each side (the total power of all the LED lamps connected to each side must not exceed 120W) |
Size
Pairing

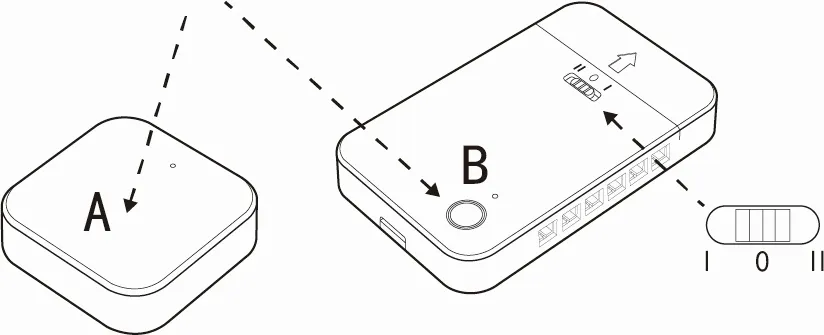

The receiver has two channels, which can be paired either individually or simultaneously:
- I:Pair with 1#channel;
- II:Pair with 2# channel;
- 0:Pair with 1&2 at the same time
Method 1: Press pairing button B on the receiver for 1s, then press pairing button A on the sensor switch twice, the connected lights will flash 3 times to indicate that pairing is complete.
Method 2: Within 20s of the receiver being powered up, double-press the pairing button A on the sensor switch within 1 m of the receiver, the lights will flash 3 times to indicate that pairing is complete.

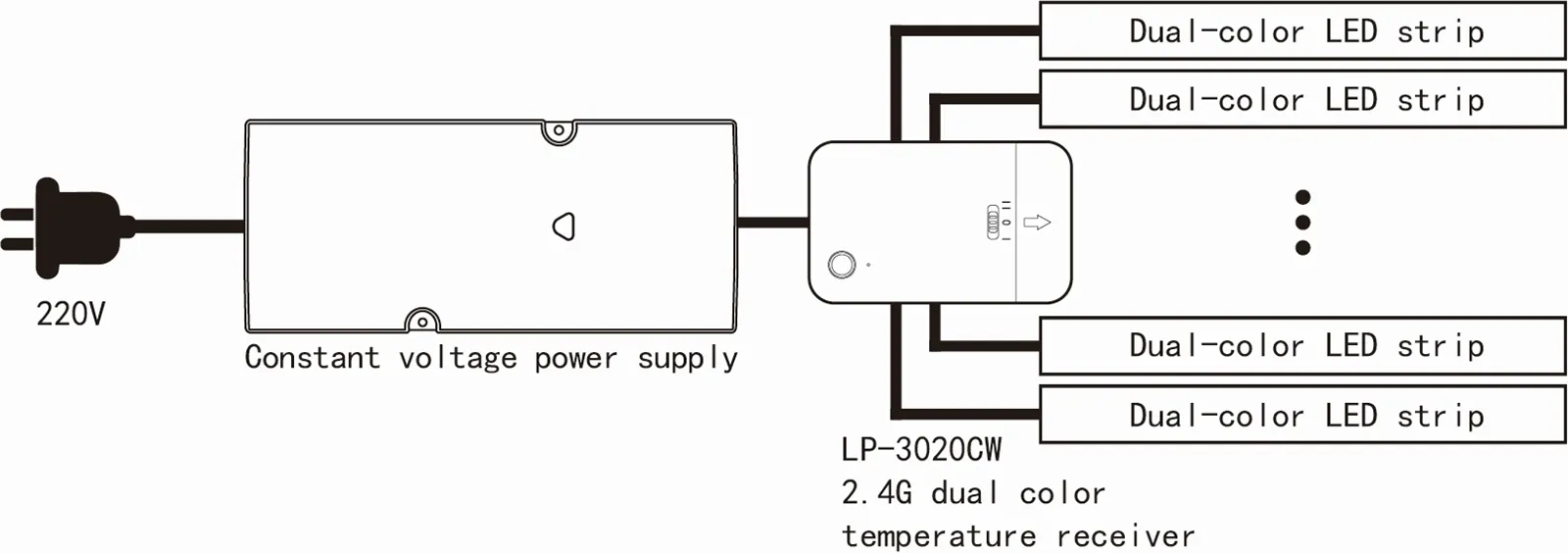

Wiring diagram
