2.4G Wireless Dual Color Temperature Panel Switch

2.4G Wireless Dual Color Temperature Panel Switch

Details
This dual color temperature wireless panel switch operates on the 2.4 GHz band. Once paired with our receiver, it enables the wireless control of LED lighting fixtures. You can stick it on the wall or place it somewhere convenient for you. It enables users to switch lights on or off, dim the brightness, and switch the color temperature. Designed for easy installation and flexibility, it is ideal for modern smart lighting applications in residential and commercial environments.
Category
Wireless Sensor Switch
Share to
Send Inquiry
Description
Technical Parameters

Description



This dual color temperature wireless panel switch operates on the 2.4 GHz band. Once paired with our receiver, it enables the wireless control of LED lighting fixtures. You can stick it on the wall or place it somewhere convenient for you. It enables users to switch lights on or off, dim the brightness, and switch the color temperature. Designed for easy installation and flexibility, it is ideal for modern smart lighting applications in residential and commercial environments.



Parameters



Product name

2.4 GHz Wireless dual color temperature panel switch

Model

LP-4030C

Control mode

2.4G wireless

Battery information

200mah CR2032 x2

Size

86*86*12mm

Trigger mode

Short press/long press

Function

Turn on/off the lamps; adjust brightness; adjust color temperature

Certification

CE, RoHS

Warranty

3 Years



Size



126

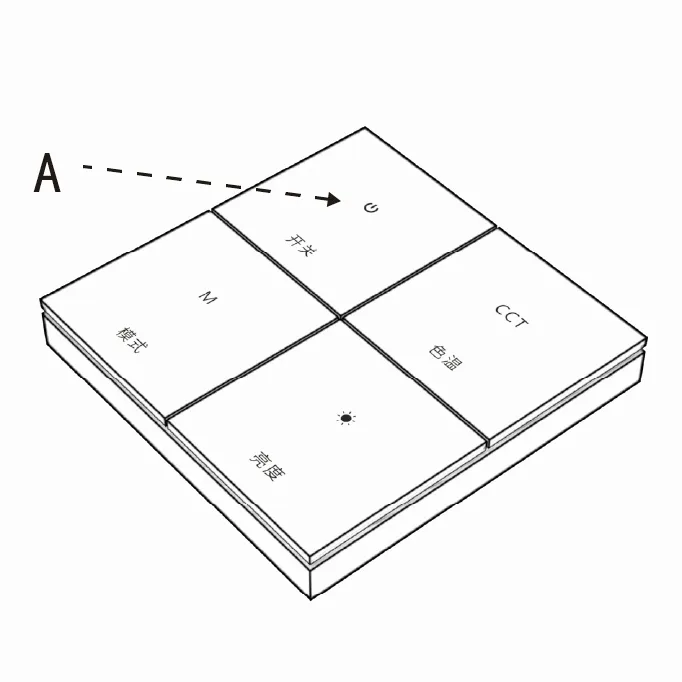

Instructions



1. Power on

The switch is switched off by default. To switch it on, press the key A, the indicator light will illuminate and flash. Press and hold the key for 3 seconds to switch it off.

127

2. Function

A button is also the pairing button

Switch key: Turn the lights on or off

Brightness key: Short-press to adjust brightness(3 levels); long-press for stepless dimming

CCT key: Short-press to adjust color temperature (3 levels); long-press for stepless color temperature adjustment

Mode key: 3 modes-white Light 100% / neutral Light 50% / warm Light 25%

128

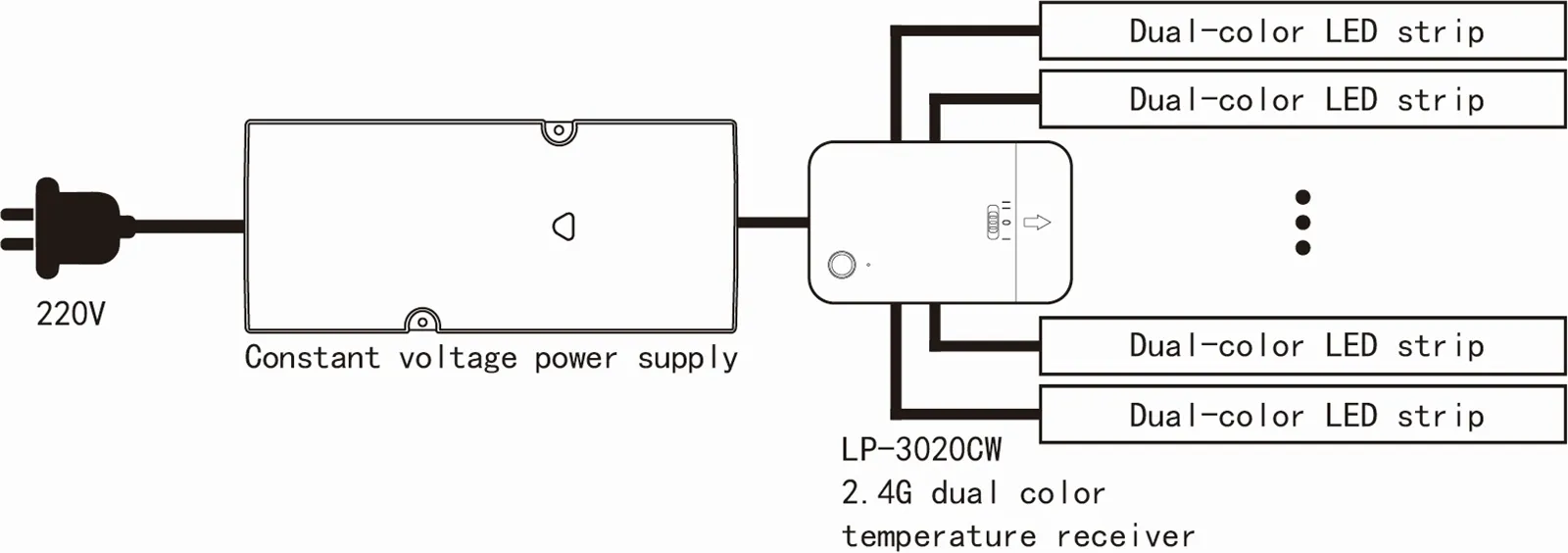

Wiring diagram



129



*This 2.4 GHz panel switch must be used with the receiver(please refer to the receiver details page for pairing instruction).
