Description
This wireless, single-color, two-channel panel switch is a wall-mounted switch. Once paired with our receiver, you can control LED lighting fixtures wirelessly and remotely. This 2 channel panel switch allows you to pair each channel with a different receiver and independently control the lights connected to those receivers. The function of this panel switch is to turn on or off the lighting. This sleek, wall-mounted lighting control switch is ideal for smart homes and modern spaces.
Parameters
|
Product name |
2.4 GHz Wireless single color temperature 2 channel panel switch |
|
Model |
LP-4020 |
|
Control mode |
2.4G wireless |
|
Battery information |
200mah CR2032 x2 |
|
Size |
86*86*12mm |
|
Trigger mode |
Press |
|
Function |
Turn on/off the lamps |
|
Certification |
CE, RoHS |
|
Warranty |
3 Years |
Size
Instructions
1. Power on

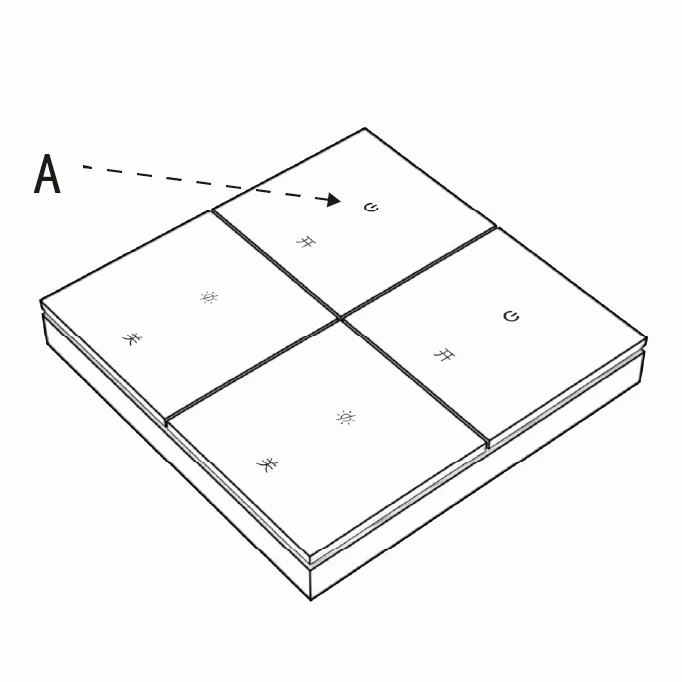

The switch is off by default. To turn it on, press key A and the indicator light will illuminate and flash. Press and hold key A for three seconds to switch it off.
2. Function

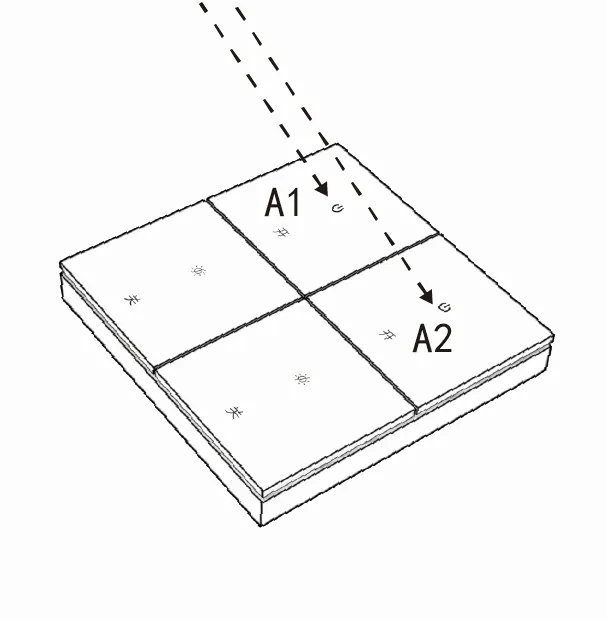

A1/A2 key are the pairing keys. Please refer to the wireless receiver detail pages for information on pairing.
Open/Shut key: Control the switching on and off of lights connected to the respective paired receivers

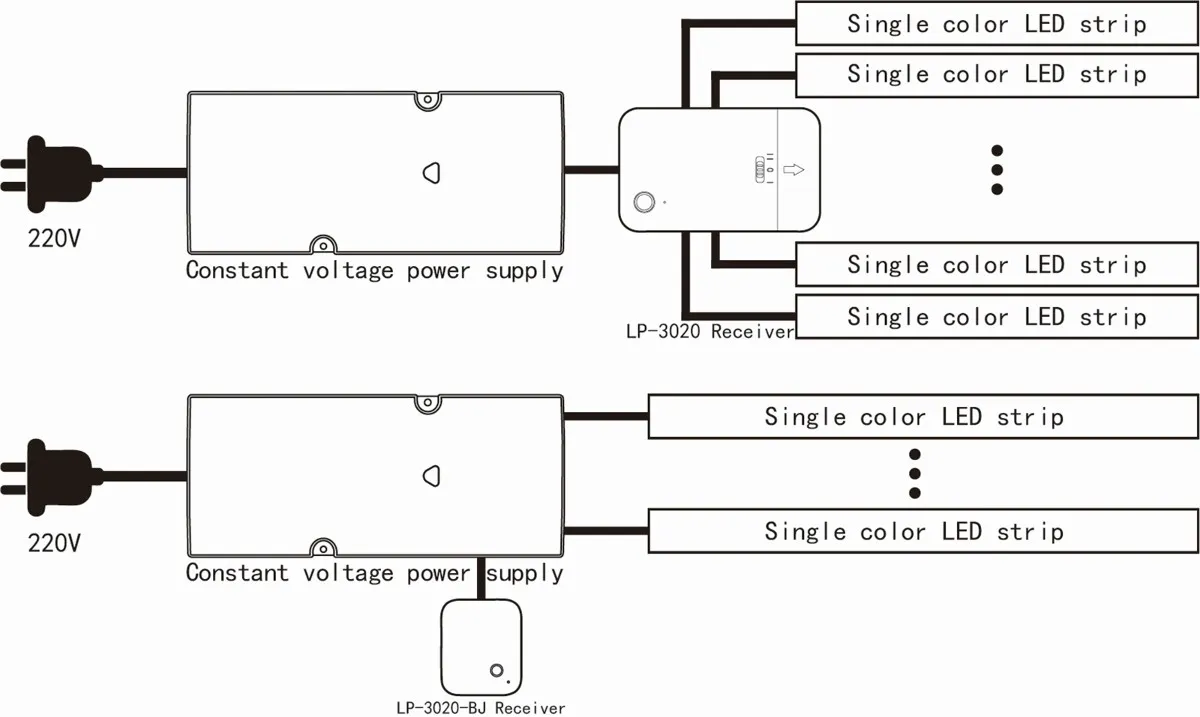

Wiring diagram
*Compatible with the following wireless receivers: LP-3020 and LP-3020BJ (sold separately).
