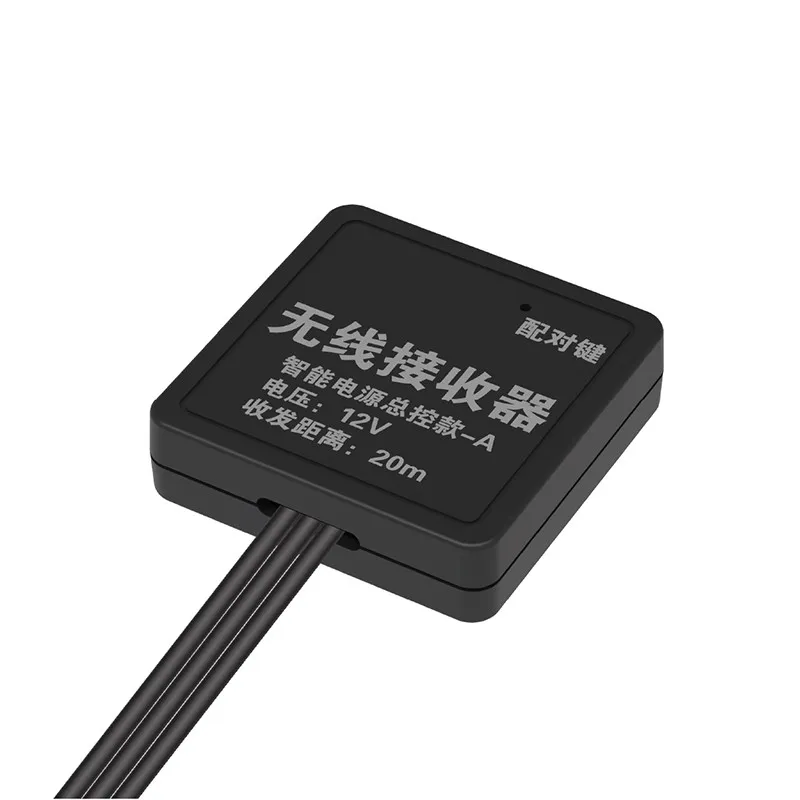

433MHz Wireless Centralized Control Receiver

This centralized control wireless receiver is part of our 433MHz wireless sensor switch series. This 433 MHz wireless receiver can be paired with a wireless sensor switch, allowing you to control the lighting without the need for wiring. Once paired, the switch sends 433MHz RF signals to the receiver, allowing you to turn the connected light on/off or adjust the brightness wirelessly. The transmission of signals between devices is stable and has a long range of up to 30m, even through walls. This series of products is an excellent solution for controlling LED lighting in homes, offices and commercial spaces.

(Please insert a thimble into the small hole to press)

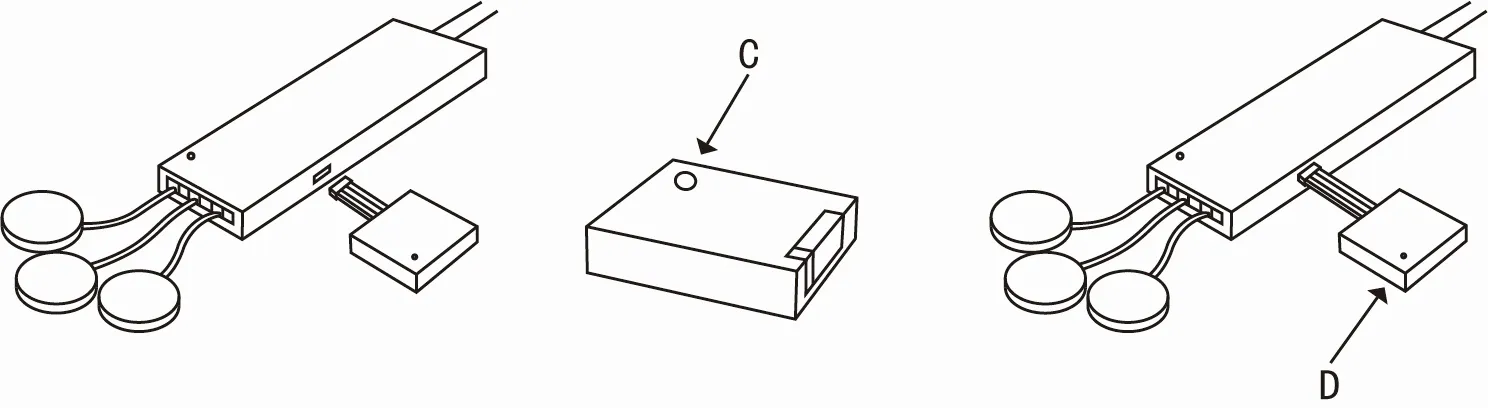

Steps:

1. Connect the lamps to the power supply;
2. Connect the receiver to the sense port of the power supply;
3. Switch the power on then the lamps will light up;
4. Press pairing button C on the sensor switch within 5s, then the lamps will flash 3 times to indicate that pairing is complete;
5. If the pairing fails within 5s, the lamps will go out automatically. Switch off the power then switch it on again, repeat step 4 once;

Note: Short press on D button to manually pair; long press on D button for 8s, the receiver will enter active pairing state; long press for 15s to reset state, the lamps will flash rapidly then go out, the data of paired device will be cleared.

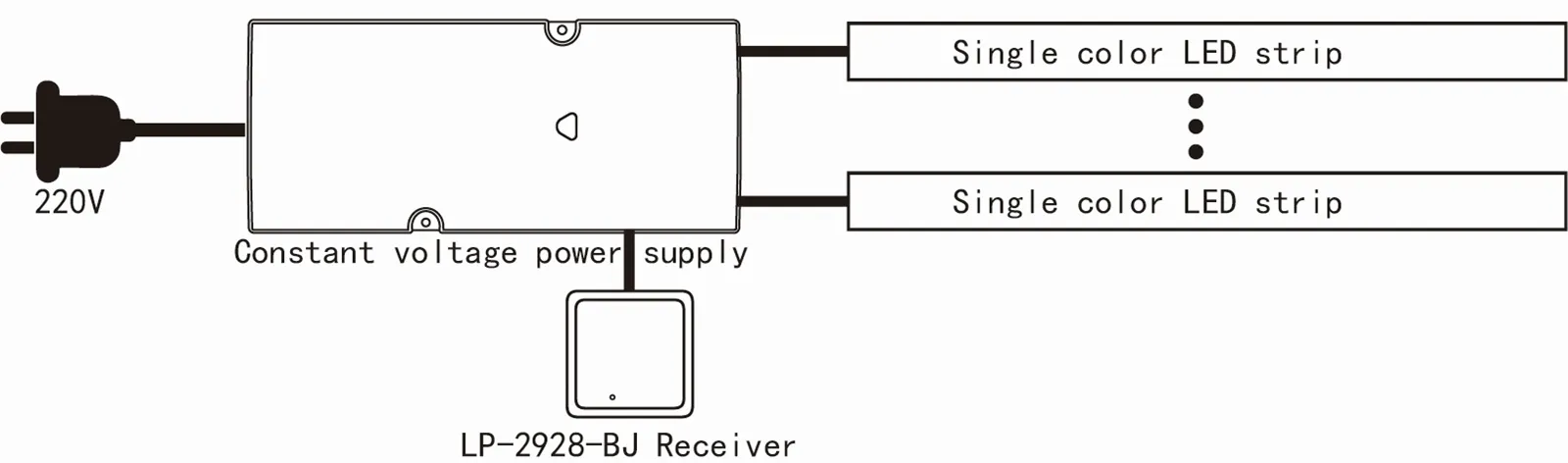

Connect the single color LED strips to the 12V/24V DC constant voltage power supply;

Connect the receiver input to the power supply with a 3-pin centralized control port;
