Description
This 2.4 GHz panel switch is a wireless, wall-mounted switch which uses the 2.4 GHz frequency band to communicate with our wireless receiver. Once paired with the wireless receiver, the panel switch can be used to control the light strips wirelessly. You can use this panel switch to turn the light on or off and adjust the brightness. This switch has a simple design and is easy to install. It is ideal for controlling single-color temperature LED lamps and is widely used for home lighting.
Parameters
|
Product name |
2.4 GHz Wireless single color temperature panel switch |
|
Model |
LP-4010 |
|
Control mode |
2.4G wireless |
|
Battery information |
200mah CR2032 x2 |
|
Size |
86*86*12mm |
|
Trigger mode |
Short press/long press |
|
Function |
Turn on/off the lamps; adjust the brightness |
|
Certification |
CE, RoHS |
|
Warranty |
3 Years |
Size

Instructions
1. Power on
The switch is switched off by default. To switch it on, press the key A, the indicator light will illuminate and flash. Press and hold the button for 3 seconds to switch it off.

2. Function

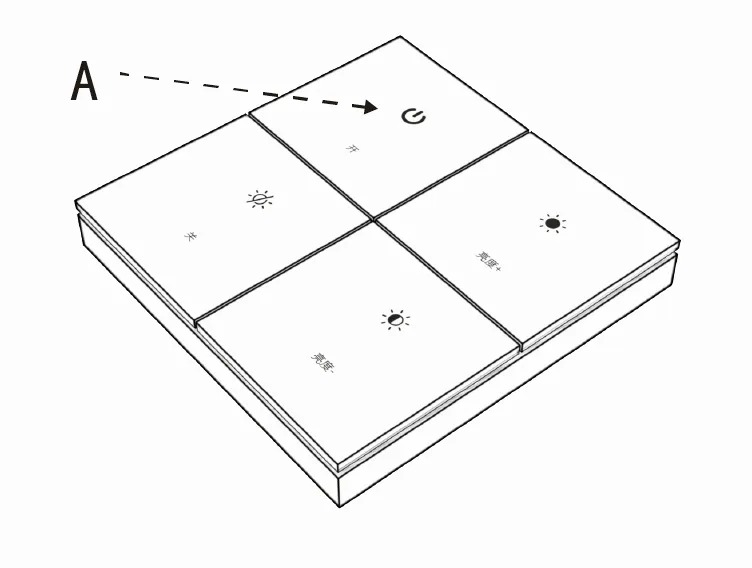

A button is also the pairing button.
Open/Shut key: Turn the lights on or off
Brightness increase/reduction key: Increase or decrease the brightness; Long-press to dim smoothly.

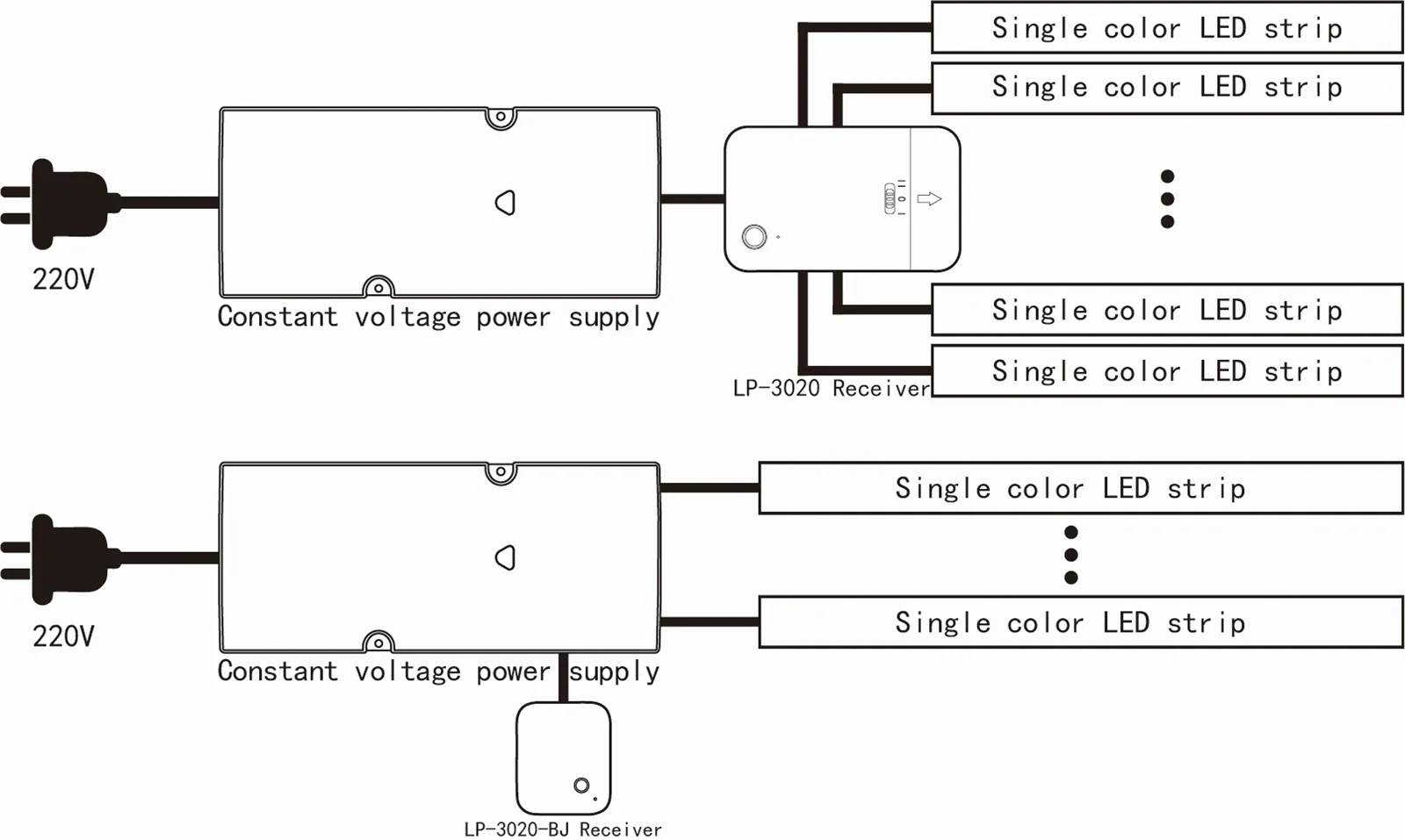

Wiring diagram

*Compatible receiver models: LP-3020, LP-3020BJ(see the Receiver Details page for pairing methods).
