Description
This wireless hand wave-activated sensor switch is part of our Lingyue wireless smart control switch series. This sensor switch is activated by waving your hand in front of it, so there is no need for physical contact. You can control the lights simply by waving your hand. What's more, this hand wave switch has three dedicated buttons for adjusting brightness and color temperature. You can customise your visual experience by adjusting the brightness or color temperature.
Parameters
|
Product name |
2.4GHz Wireless hand wave-activated sensor switch |
|
Model |
LP-4010T |
|
Control mode |
2.4 GHz wireless |
|
Battery |
CR2450 |
|
Size |
L: 65*W: 65*H: 15mm |
|
Trigger method |
Hand wave/press the button |
|
Function |
Turn on/off the lights; adjust the brightness and color temperature |
|
Certification |
CE, RoHS |
|
Warranty |
3 years |

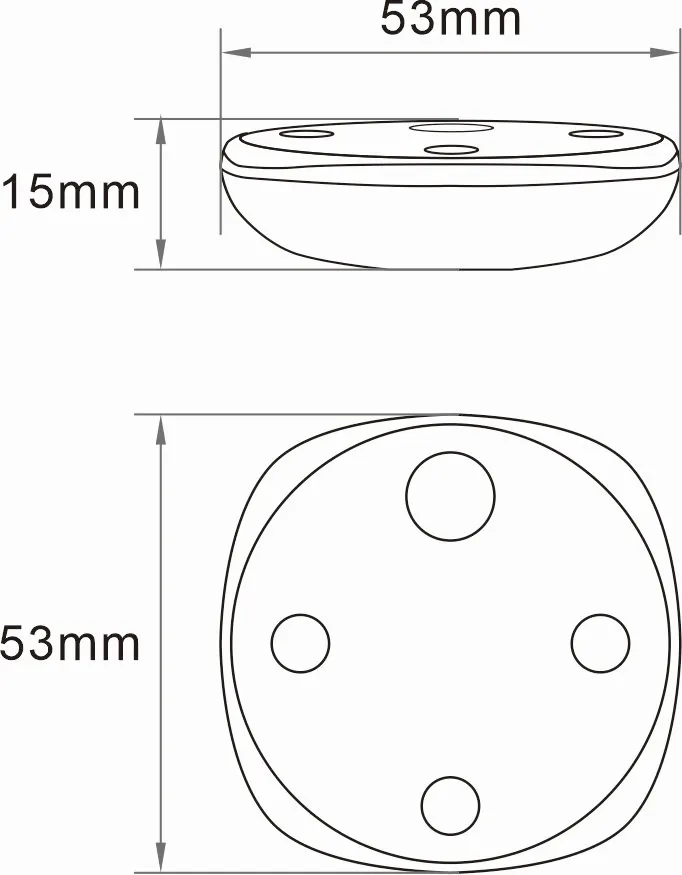

Size

Instruction

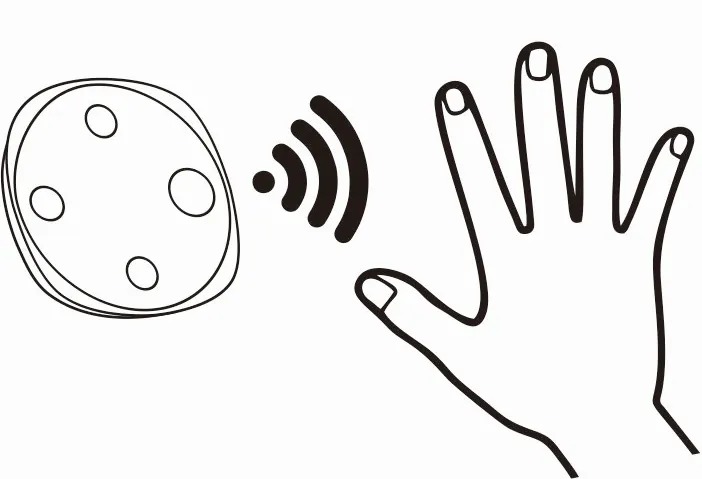

Wave your hand to control the light to turn on/off

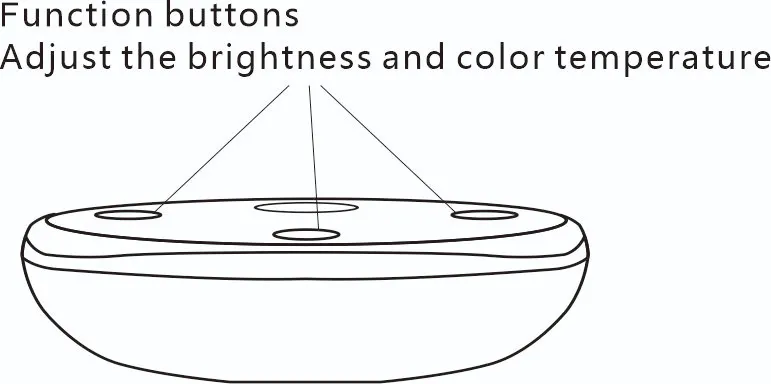

Function buttons: Adjust the brightness and color temperature
Indicator light: Red-flat battery; white-working

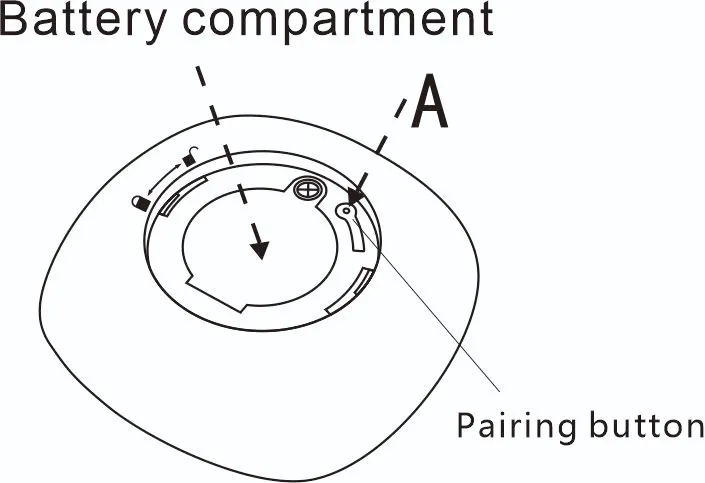

Rotate the battery cover to unlock it, then remove the screw and change the battery. Button A is the pairing button.

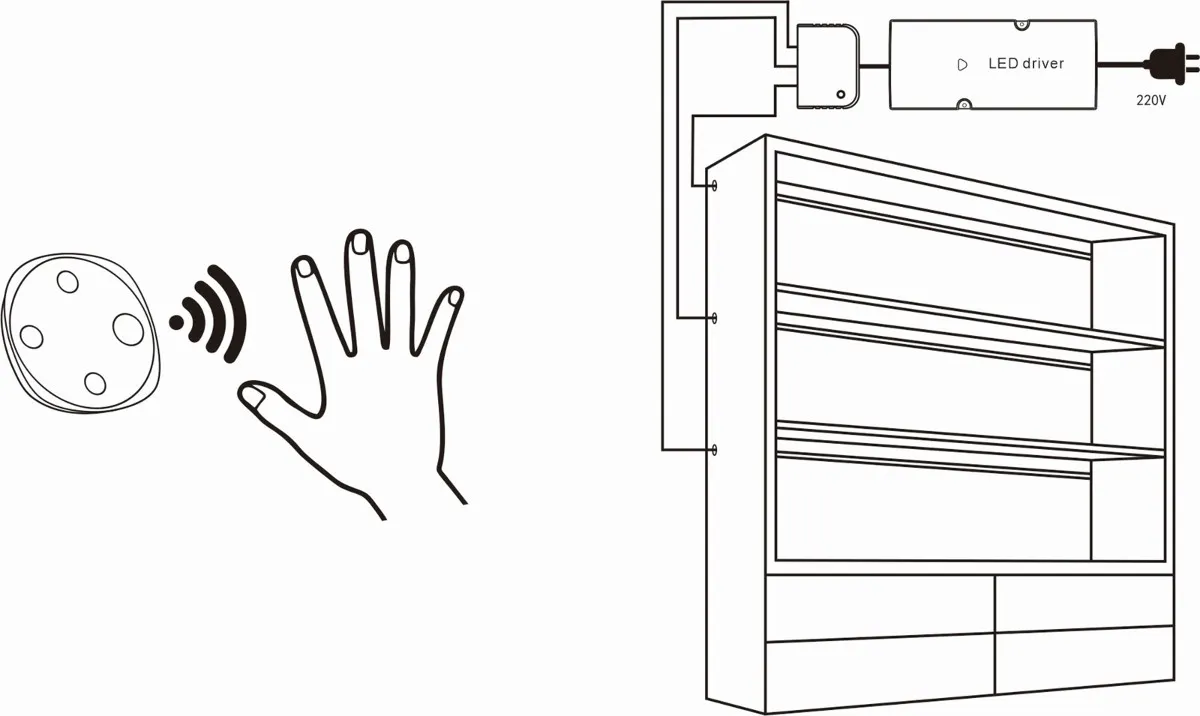

Installation

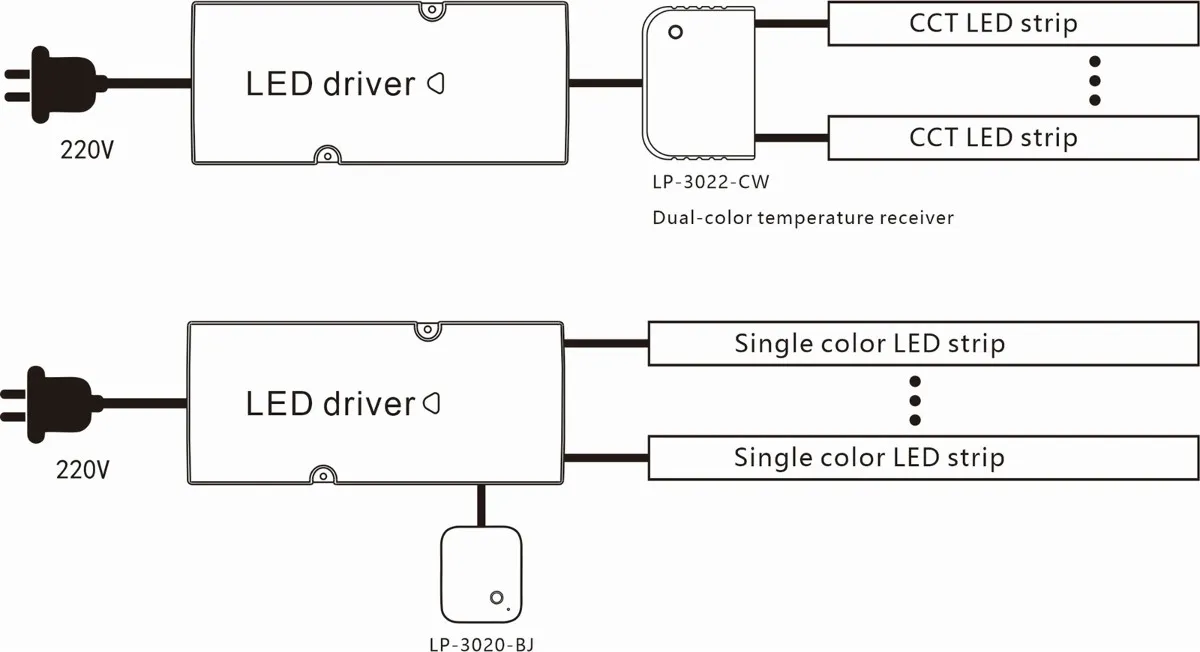

Wiring diagram

*This 2.4 GHz wireless sensor switch works with the receiver(for details on how to pair the devices, please refer to the receiver's details page).
