2.4G Wireless Separate Control Receiver

Details

This receiver is part of our 2.4 GHz sensor switch series. It uses a 2.4 GHz wireless connection to communicate with sensor switches enabling remote and wireless control of LED lights. It can be paired with wireless sensor switches that have different functions, providing a wide range of lighting control options. This receiver has a transmission range of 10m and even if there are walls in the way, the signal transmission is very stable. With quick pairing, reliable signal performance and easy installation, our 2.4 GHz sensor switch series is ideal for modern residential and commercial lighting systems.

Description

Parameters

Product name	2.4G Wireless separate control receiver
Model	LP-3020
Control mode	Separate control
Input/output voltage	DC 12-24V
Size	L: 100mm W: 60mm H: 13.5mm
Receiving range	10m
RF receive frequency	2.4GHz
Load LED power	Dual circuit 180W(single circuit 90W)
Cable length	10cm

Size

134

Instruction

It works with wireless sensor switches once they have been paired. Button B is the pairing button. The receiver has two channels, which can be paired either individually or simultaneously:

I:Pair with 1# channel
II:Pair with 2# channel
0:Pair with 1&2 at the same time

135

Pairing

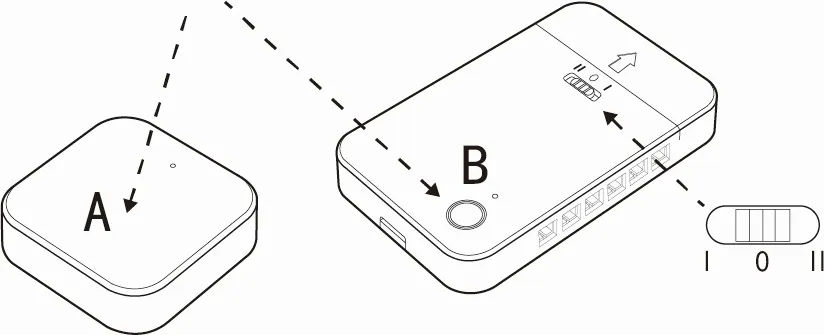

Method 1: Press pairing button B on the receiver for 1s, then press pairing button A on the sensor switch twice, the connected lamps will flash 3 times to indicate that pairing is complete.

136

Method 2: Within 20s of the receiver being powered up, double-press the pairing button A on the sensor switch within 1 m of the receiver, the lamps will flash 3 times to indicate that pairing is complete. (Suitable for cases where the receiver cannot be operated)

137

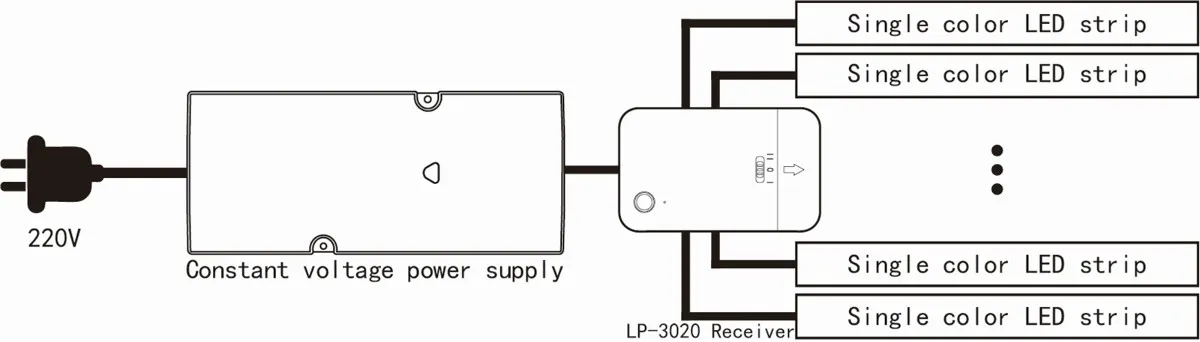

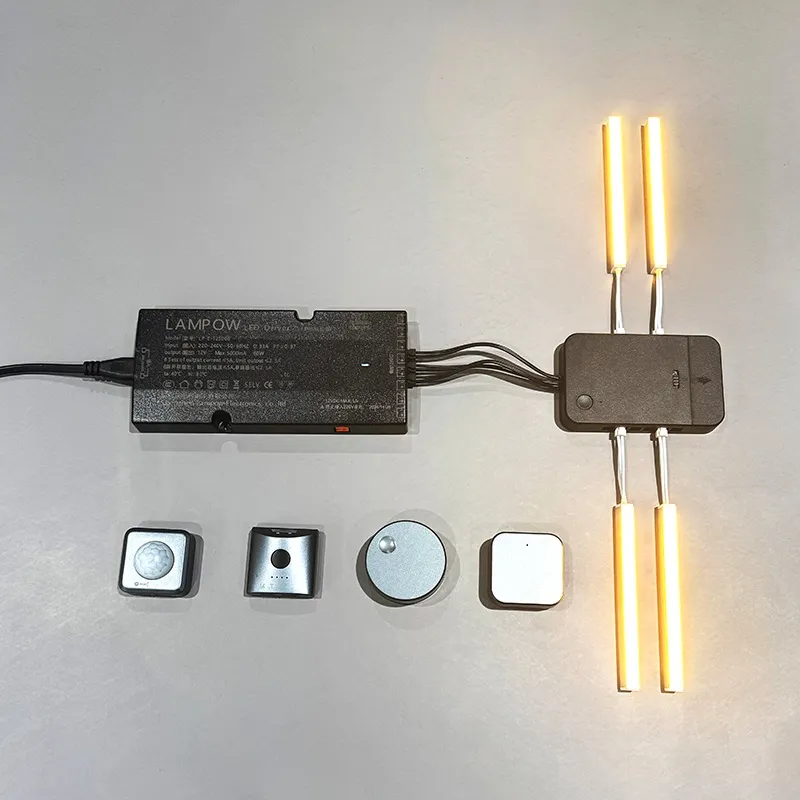

Wiring diagram

It connects to a 12V/24V DC constant voltage power supply, and has 6 ports on each side for connecting single color temperature LED lamp(the total power of all the LED lights connected to each side must be less than 90W).
