Description

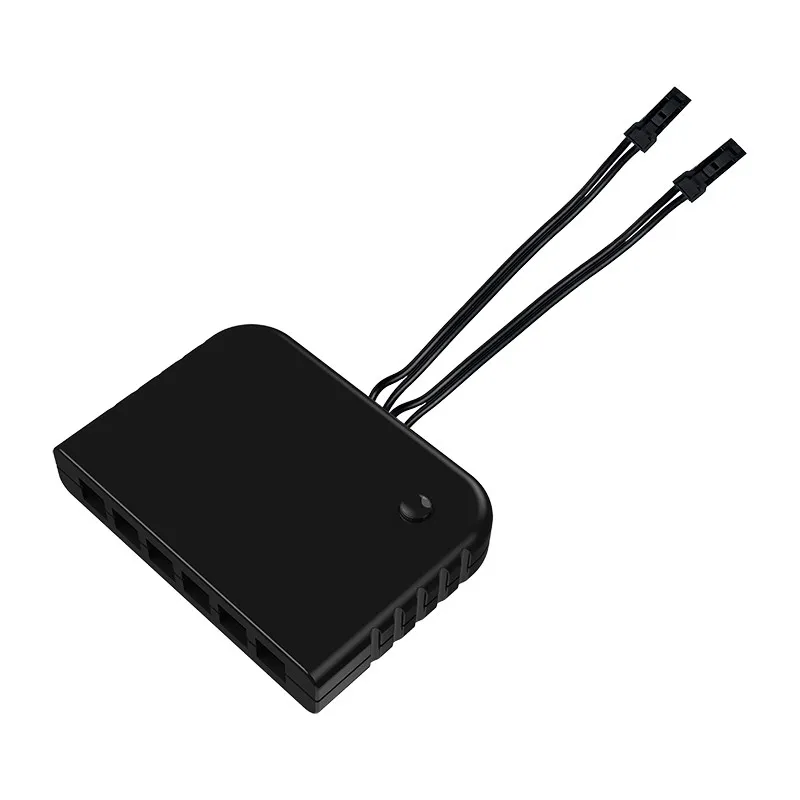

This wireless receiver is part of our Lingyue wireless smart control switch series. It pairs with our sensor switches via the 2.4 GHz band so that they can control the LED lights wirelessly. The signal transmission between devices is stable and long-range, even through walls. It is specifically designed to connect dual-color temperature LED strips and work with sensor switches that have a color temperature adjustment function. This combination allows you to adjust the colour temperature of the lighting flexibly according to the ambient light, meeting a variety of lighting needs. Ideal for lighting in homes, commercial premises and offices.
Parameters
|
Product name |
2.4GHz Wireless receiver for dual color temperature lights |
|
Model |
LP-3022CW |
|
Control mode |
2.4 GHz wireless |
|
Input/output voltage |
DC 12-24V |
|
Size |
L: 62mm W: 45mm H: 12mm |
|
Receiving distance |
10M |
|
Max load |
90W |
|
Cable length |
10cm |
|
Warranty |
3 years |
|
Output ports |
6 |
Size
Pairing
Method 1: Press pairing button B on the receiver for 1s, then press pairing button A on the sensor switch twice, the connected lamps will flash 3 times to indicate that pairing is complete.
Method 2: Within 20s of the receiver being powered up, double-press the pairing button A on the sensor switch within 1 m of the receiver, the lamps will flash 3 times to indicate that pairing is complete.

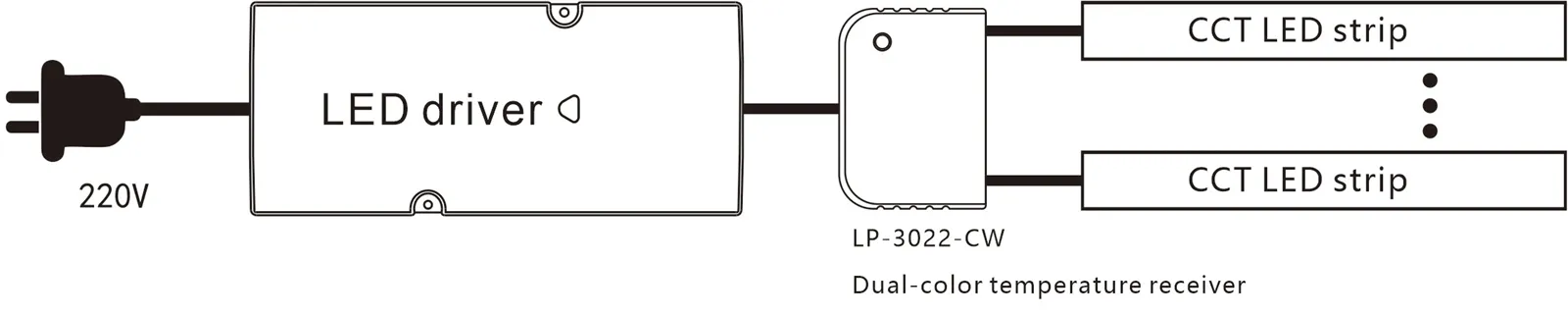

Wiring diagram
Connect the CCT LED strips to the receiver;
Connect the receiver input to a 12V/24V DC LED driver.
