220V High Voltage Wireless Receiver

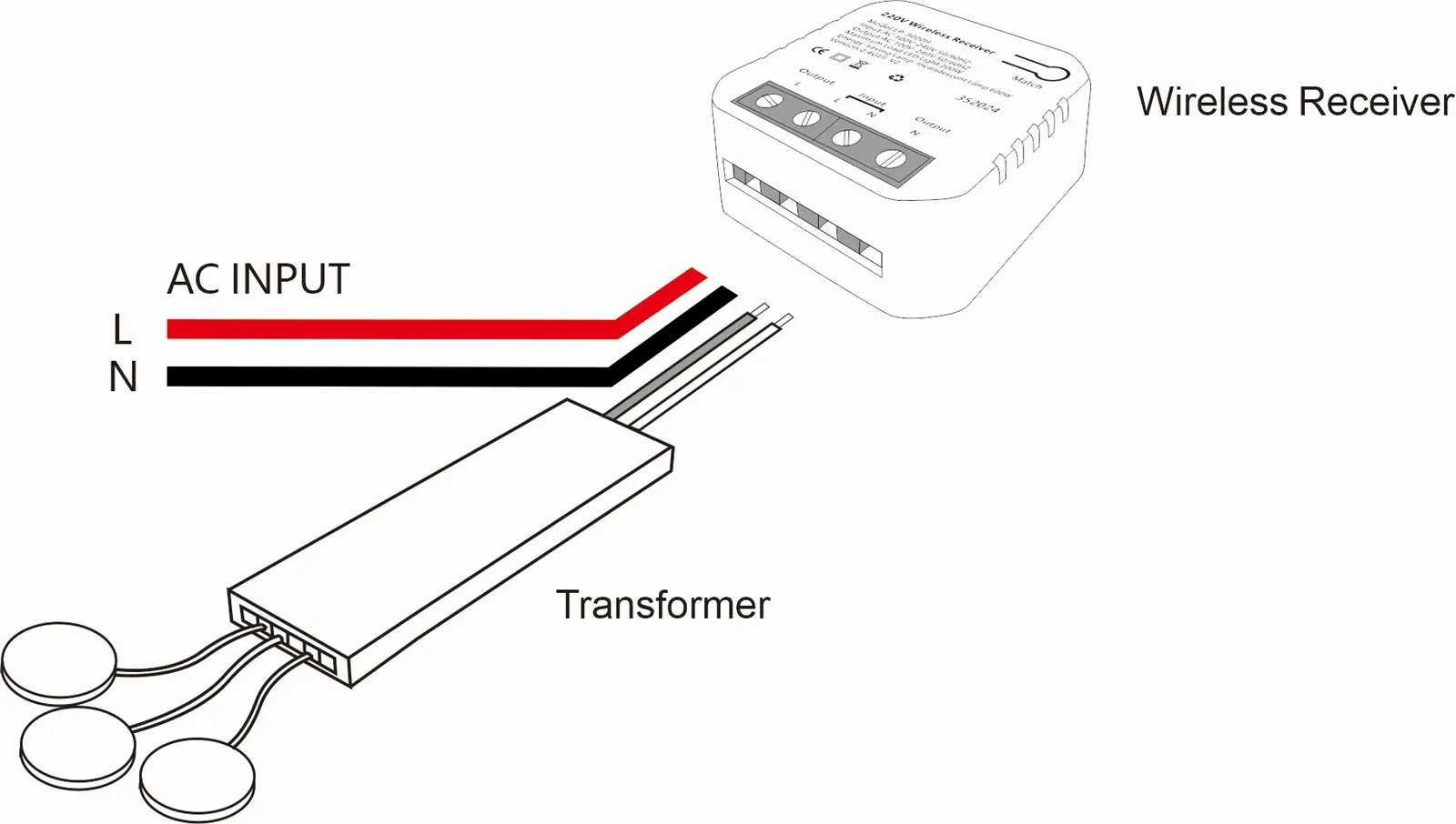

This high voltage wireless receiver is part of our 2.4 GHz sensor switch series. The devices in this series communicate via the 2.4 GHz frequency band. Once the wireless switches has paired with the receiver, they can work together to control the lights. This receiver can be connected directly to 220 V high-voltage lighting fixtures or indirectly to low-voltage LED strips via a transformer.

1. Function

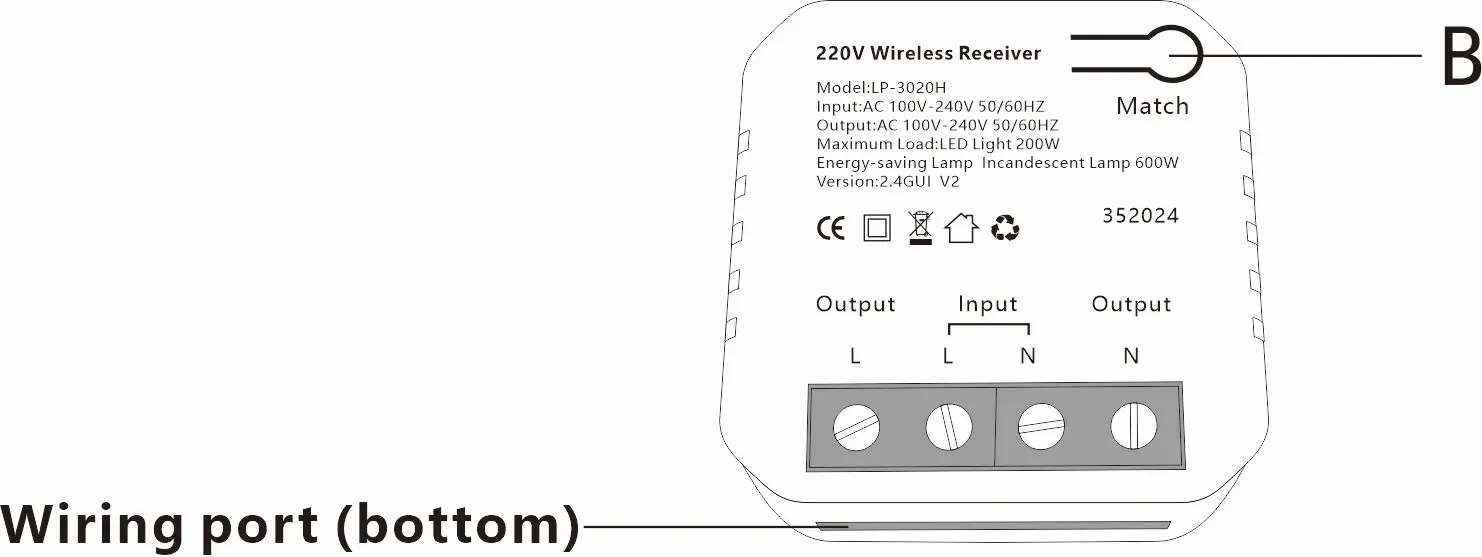

Button B is the pairing button.

2. Pairing

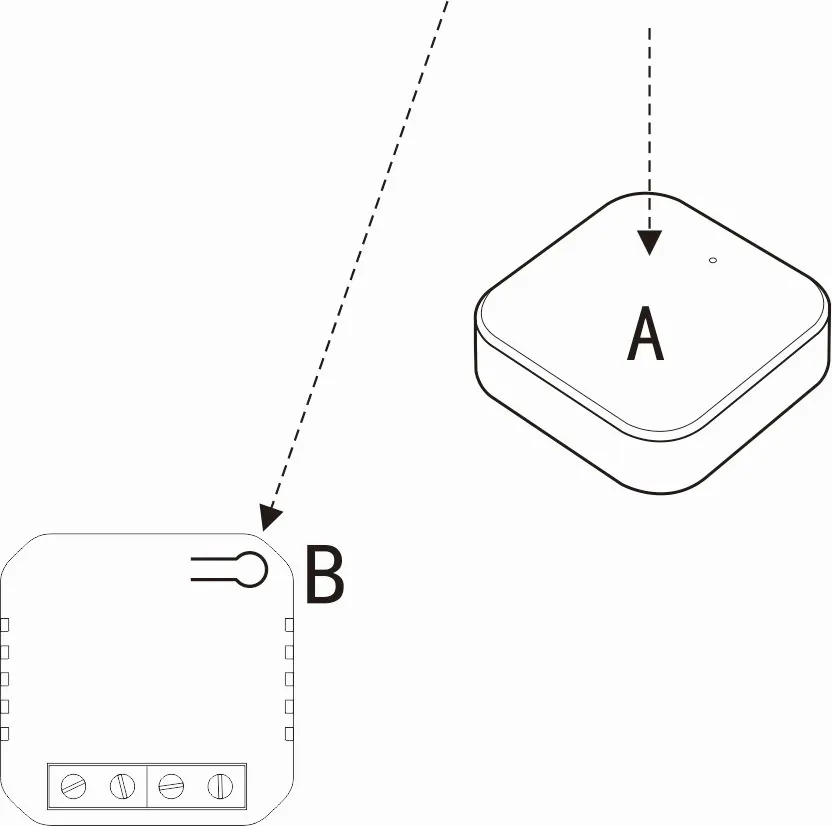

Method 1: Press pairing button B on the receiver for 1s, then press pairing button A on the sensor switch twice, the connected lamps will flash 3 times to indicate that pairing is complete.

Method 2: Within 20s of the receiver being powered up, double-press the pairing button A on the sensor switch within 1 m of the receiver,the lamps will flash 3 times to indicate that pairing is complete. (Suitable for cases where the receiver cannot be operated)

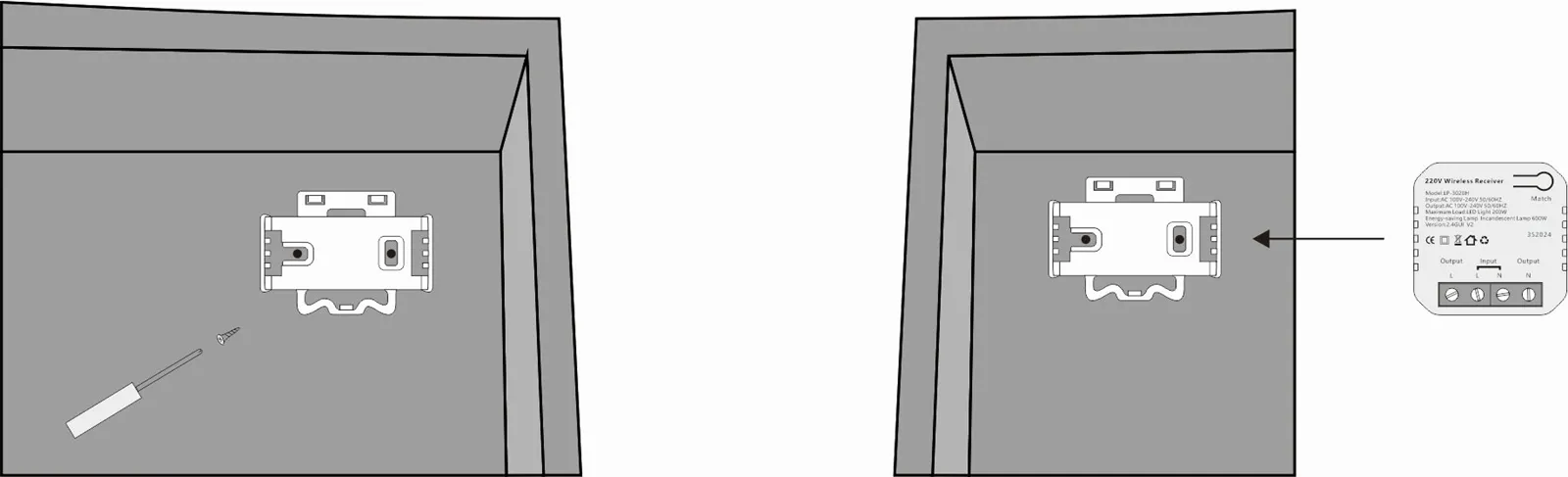

Install the base at a suitable position (it can be fixed with screws or double-sided tape).

*Please use it under professional electrician's guides.
