433MHz Single Color Temperature Receiver

This single color temperature wireless receiver is part of our 433MHz wireless sensor switch series. After pairing, the wireless sensor switches and receivers work together to control the lighting. They communicate via a 433 MHz radio frequency and perform well even when walls are in the way, providing a reliable long-range transmission of up to 30m. This series of items is suitable for controlling a variety of 12V/24V DC constant-voltage LED luminaries. They are an excellent solution for controlling LED lighting in furniture and are widely used in closets, wardrobes, cupboards, wine cabinets and other cabinets.

Steps:

1. Connect the LED lights to the wireless receiver;
2. Connect the wireless receiver input to a 12V/24V DC constant voltage power supply;
3. Switch the power on then the LED lights connected to the wireless receiver will light up for 5s;

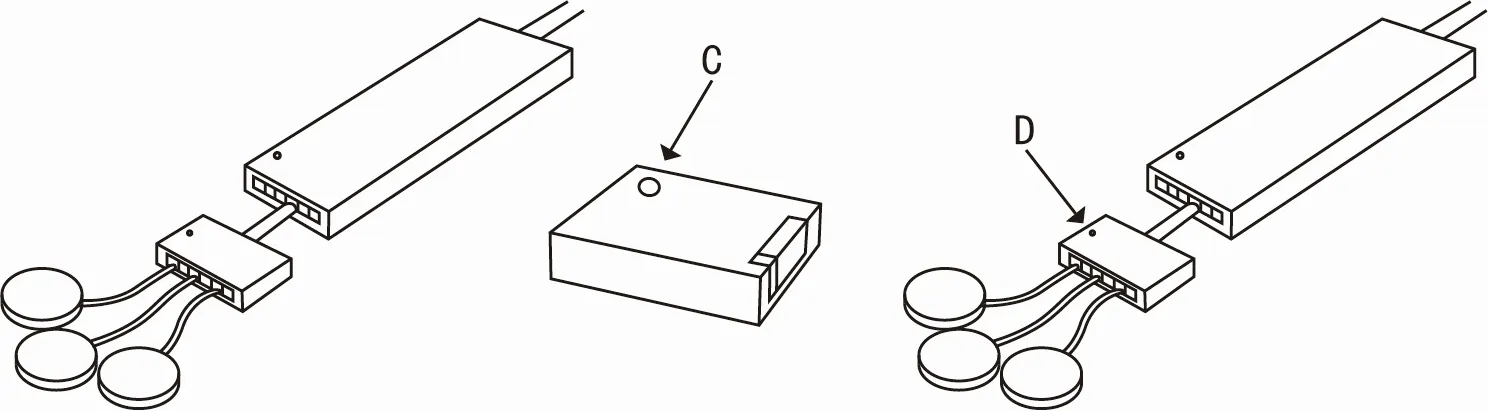

4. Press pairing button C on the sensor switch within 5s, then the LED lights will flash 3 times to indicate that pairing is complete;
5. If the pairing fails within 5s, the LED lights will go out automatically. Switch off the power then switch it on again, repeat step 4 once;

Note: Short press on D button to manually pair; long press on D button for 8s, the wireless receiver will enter active pairing state; long press for 15s to reset state, the LED lights will flash rapidly then go out, the paired device data will be cleared.

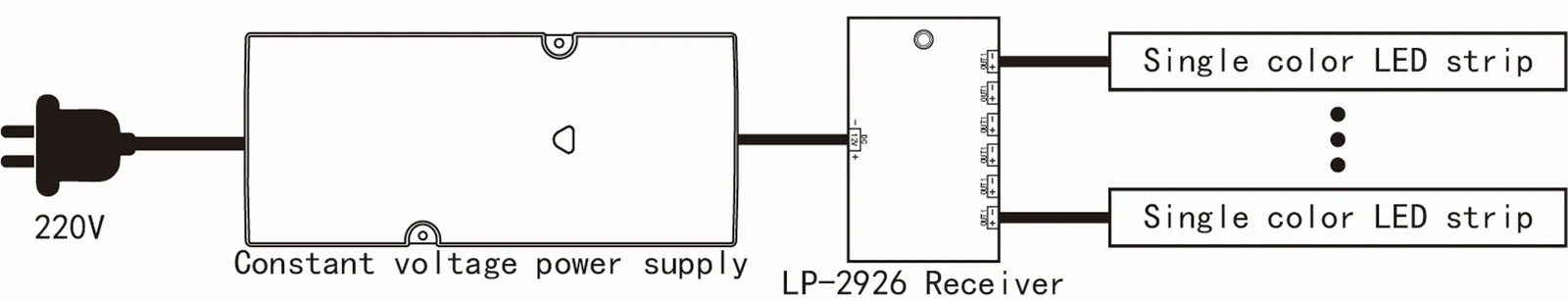

Connect the single-color LED lights to the receiver.

Connect the receiver input to a 12V/24V DC constant voltage power supply.
