433MHz Wireless Remote Control

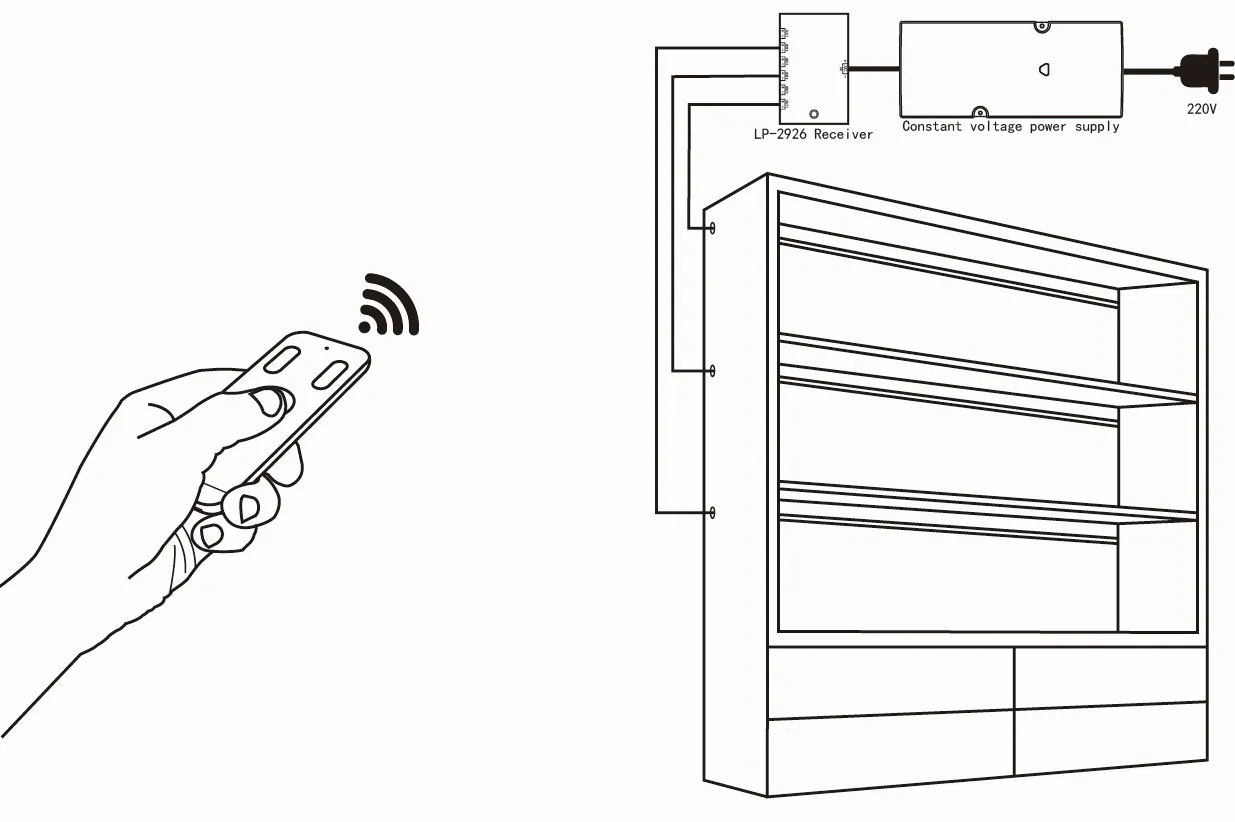

This wireless remote control is part of our 433MHz wireless sensor switch series. It works with our receivers and communicates with them via the 433 MHz frequency band. Press the different buttons on the remote control to switch the lights on and off, and adjust the brightness and color temperature (When paired with our dual-color-temperature receiver and connected to dual-color lights). The 433 MHz wireless sensor switch series is a reliable and convenient solution for remote control of your home or office lighting.

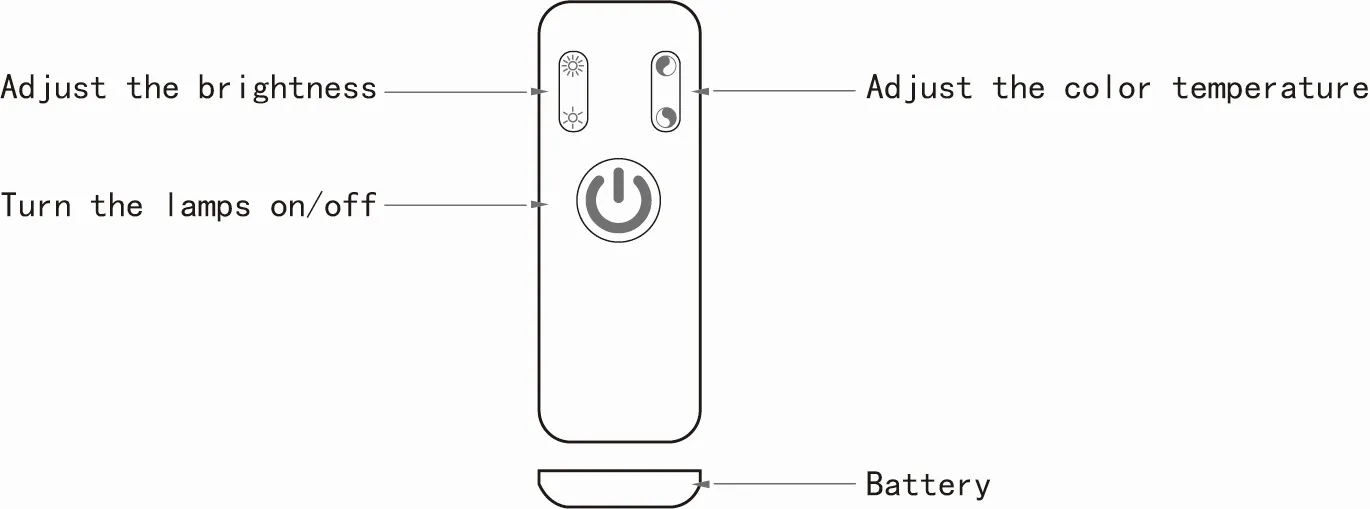

 Adjust the brightness

 Adjust the color temperature

 Turn the lamps on/off

Steps:

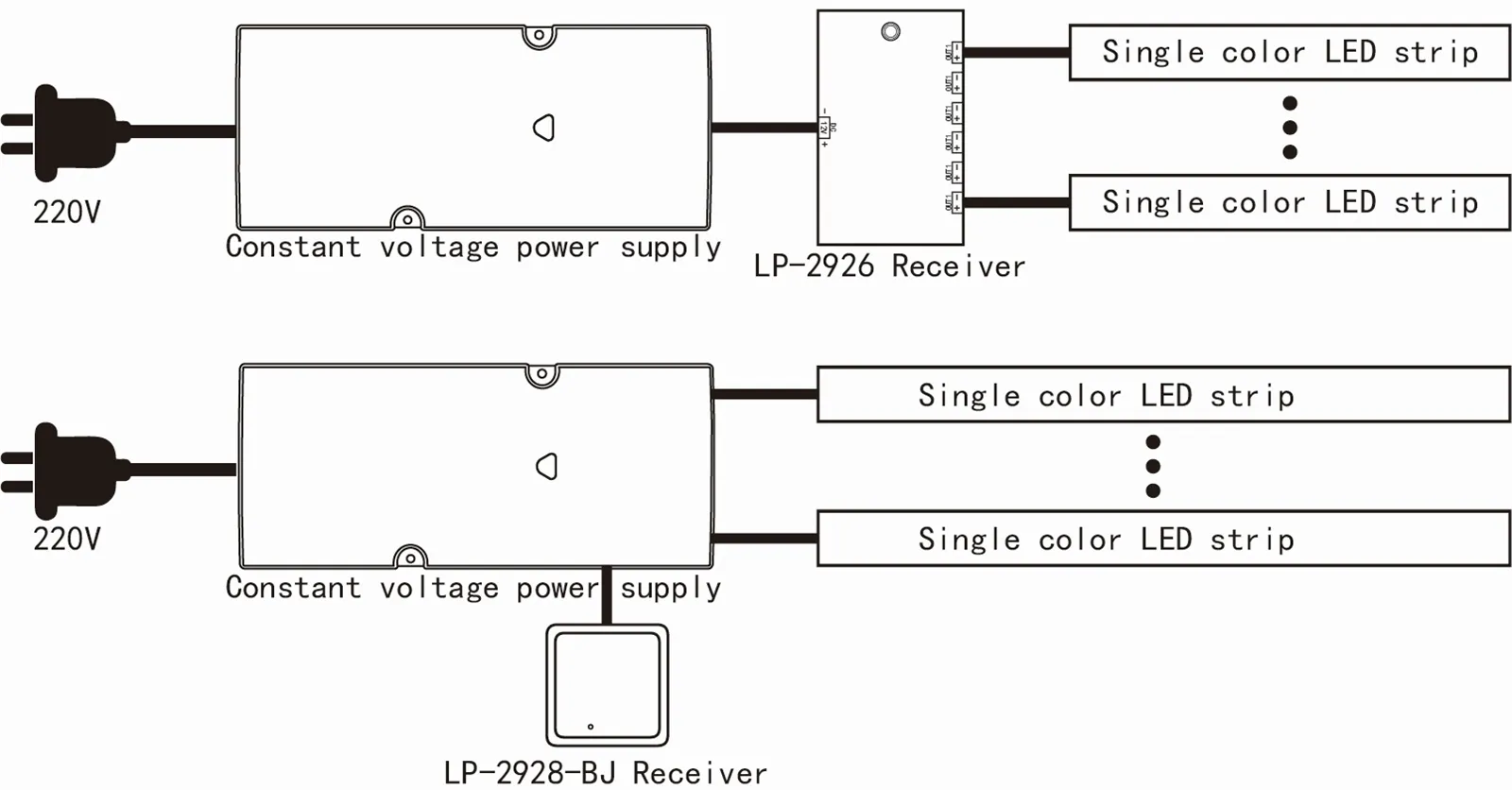

1. Connect the lamps(please refer to the wiring diagram below);
2. Connect the receiver input to a 12V/24V DC constant voltage power supply;
3. Switch the power on then the connected lamps will light up for 5s;

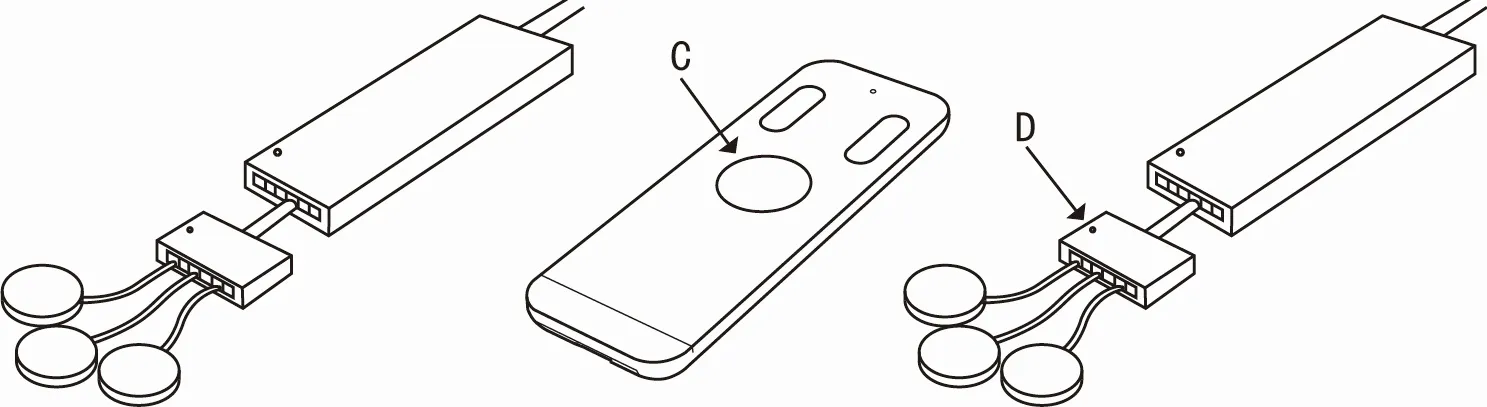

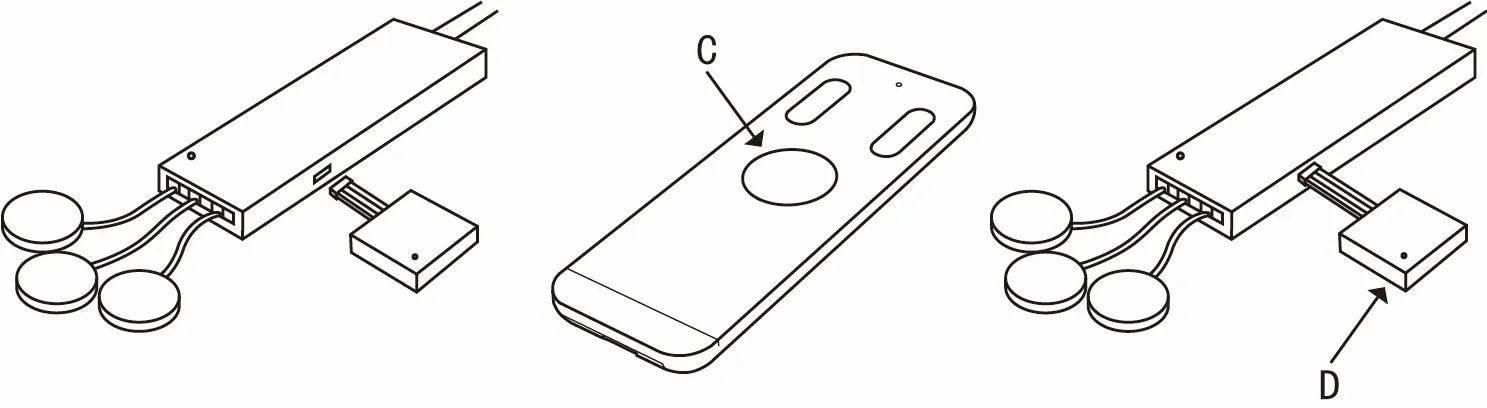

4. Press pairing button C on the remote control for 2s,then the lamps will flash 3 times to indicate that pairing is complete;
5. If the pairing fails within 5s, the lamps will go out automatically. Switch off the power then switch it on again, repeat step 4 once;

(Please insert a thimble into the small hole to press)

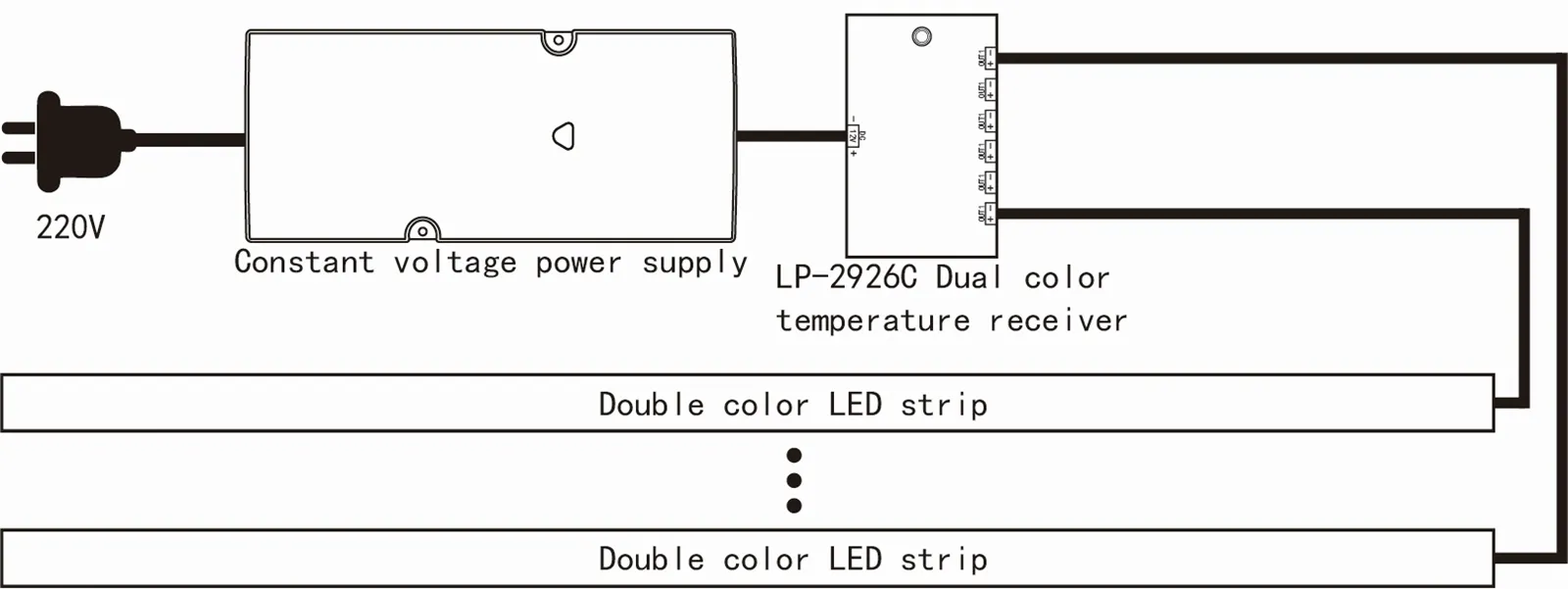

Adjust the color temperature when paired with our dual-color-temperature receiver and connected to dual-color lights.
