433MHz Wireless Knob Dimmer

This wireless knob dimmer is part of our 433MHz wireless sensor switch series. It operates on 433MHz and must be paired with our receiver to realize wireless control of LED lamps. By pressing or rotating the dimmer, you can switch the lights on and off, and adjust the brightness and color temperature(When paired with our dual-color-temperature receiver and connected to dual-color lights).

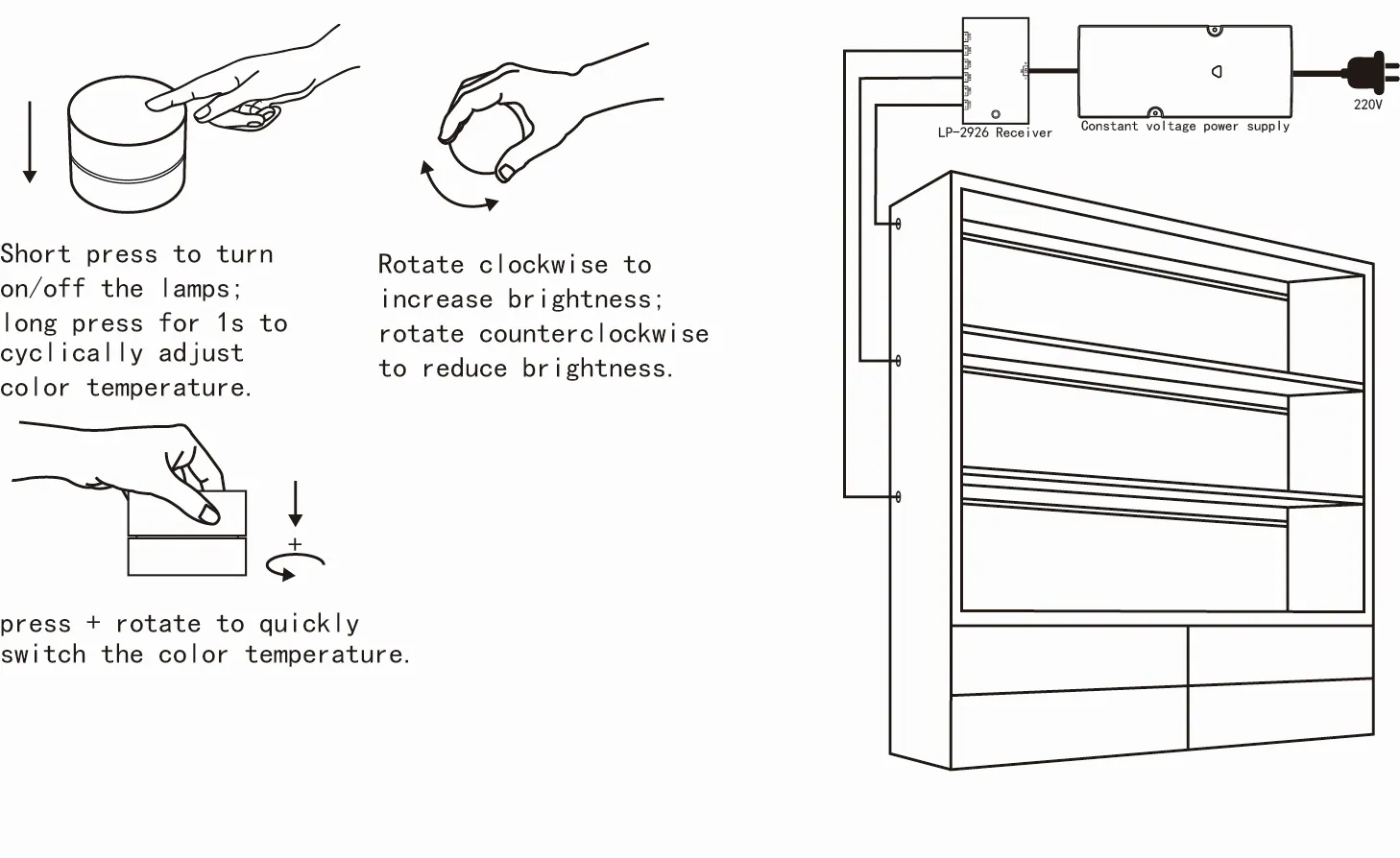

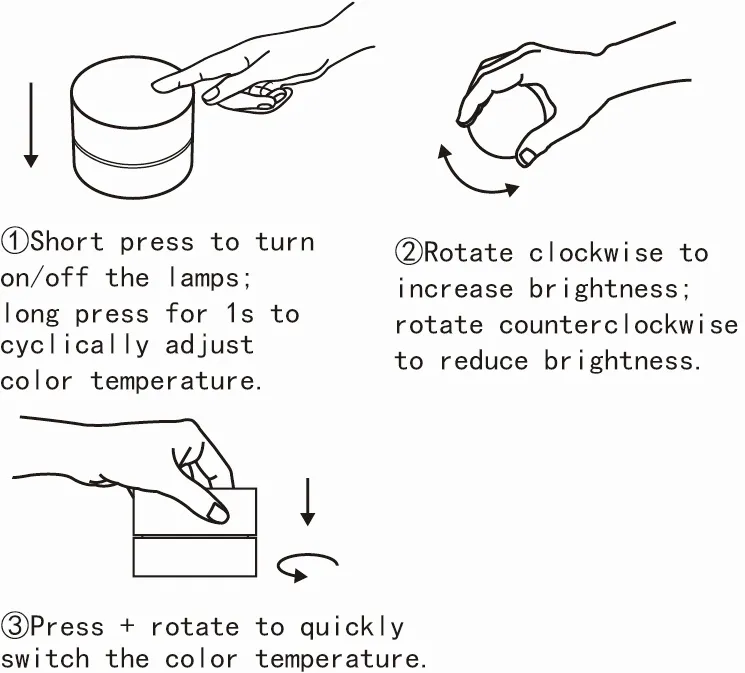

Function:

①Short press to turn on/off the lamps; long press for 1s to cyclically adjust color temperature.

②Rotate clockwise to increase brightness; rotate counterclockwise to reduce brightness.

③Press + rotate to quickly switch the color temperature.

Steps:

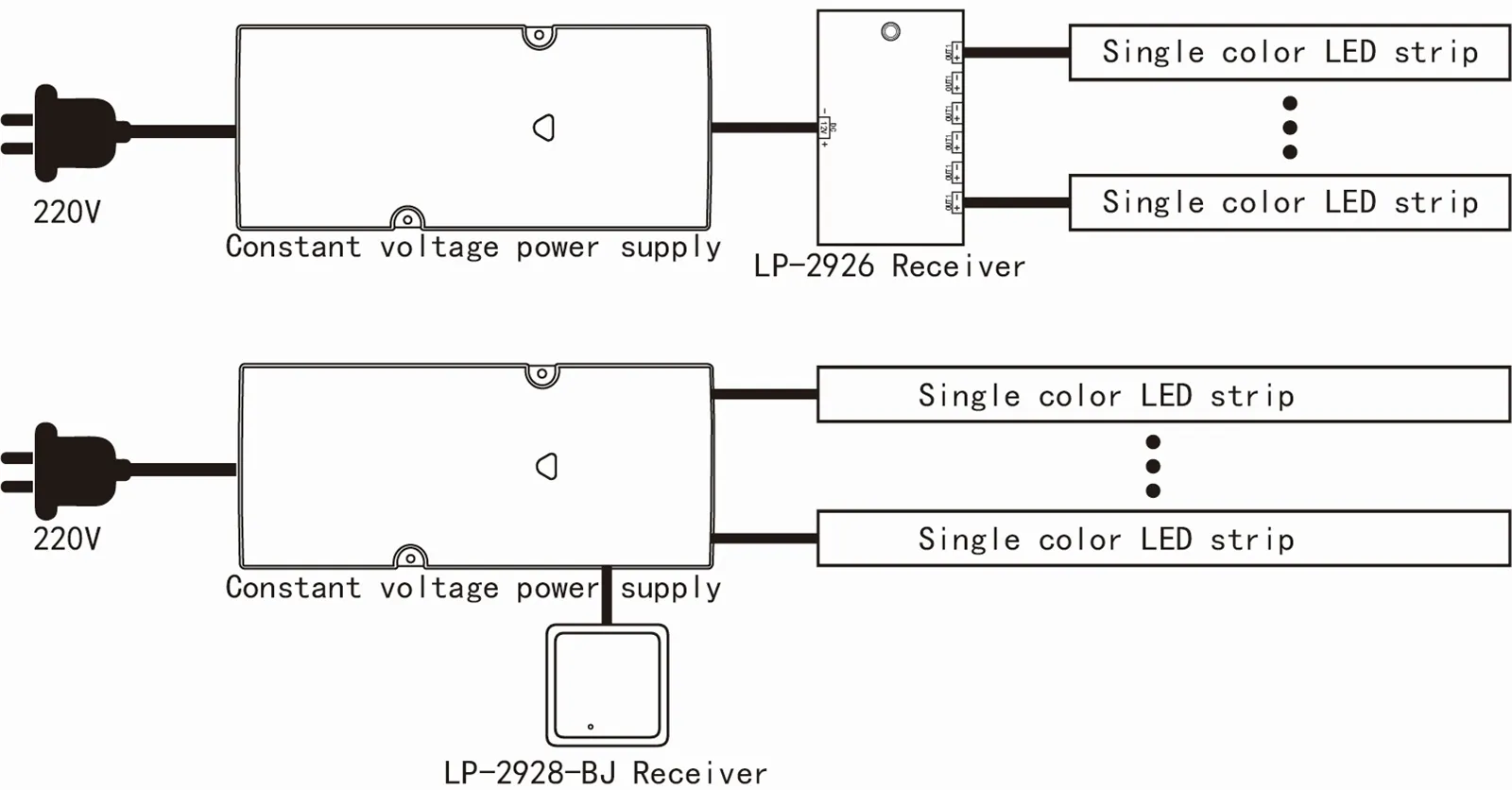

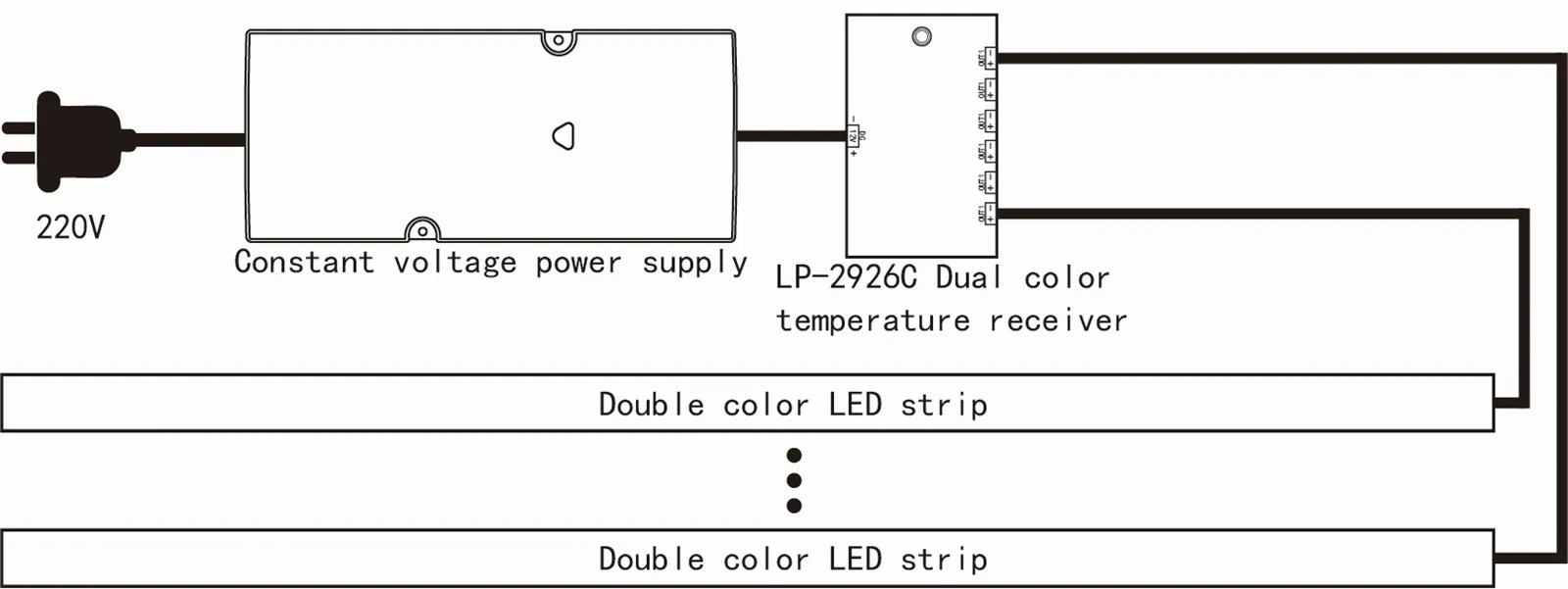

1. Connect the lamps(please refer to the wiring diagram below);
2. Connect the receiver input to a 12V/24V DC constant voltage power supply;
3. Switch the power on then the connected lamps will light up for 5s;

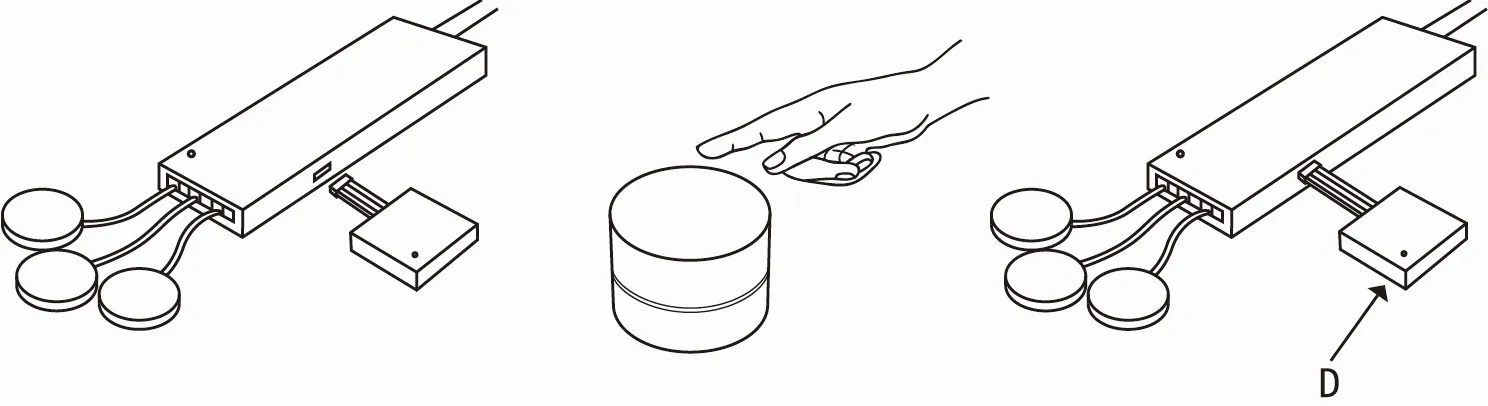

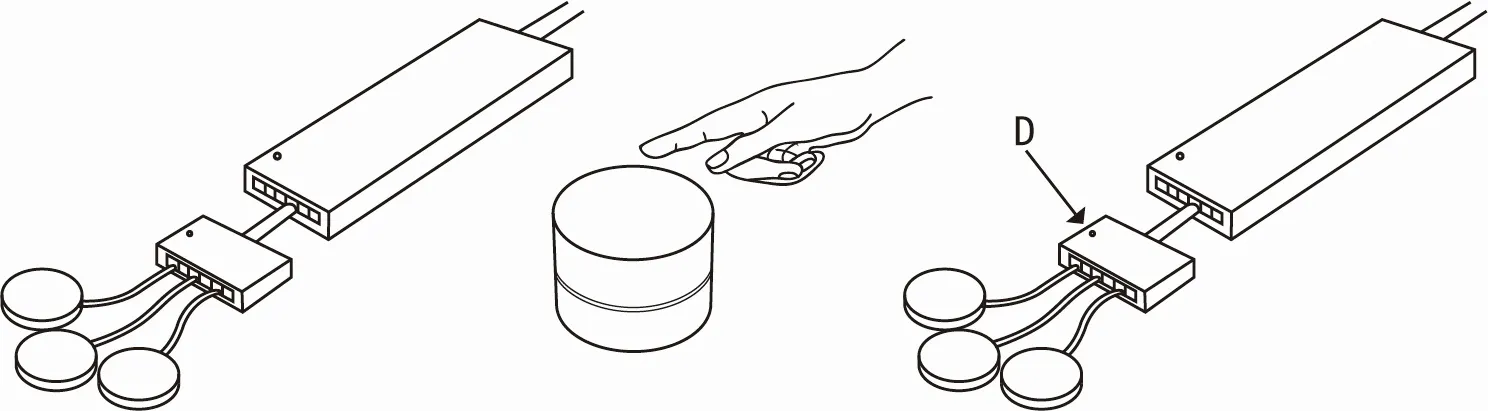

4. Press on the wireless knob dimmer within 5s,then the lamps will flash 3 times to indicate that pairing is complete;
5. If the pairing fails within 5s, the lamps will go out automatically.Switch off the power then switch it on again,repeat step 4 once;

(Please insert a thimble into the small hole to press)
