Description

This RF 5-in-1 controller is equipped with 2.4G wireless transmission technology, featuring a compact size and high power output. It supports one-click switching between five output modes – single color, dual color, RGB, RGBW and RGBCCT – and is compatible with the corresponding five types of LED strips. With built-in automatic signal transmission and synchronization functions, it ensures stable and reliable control and offers an outstanding cost performance ratio.

Parameters

Product Name	2.4GHz RF 5-in-1 LED Controller
Model No.	C51RF
Input Voltage	DC12-24V(5.5*2.1mm)
Output	6A/Channel (Total Output Max: 15A)
Working Temperature(Ta)	-25~40°C
Support	2.4GHz RF
Size	74.535.616.5mm
Output Mode	Single Color / CCT / RGB / RGBW / RGBCCT
RF Control Distance	30M

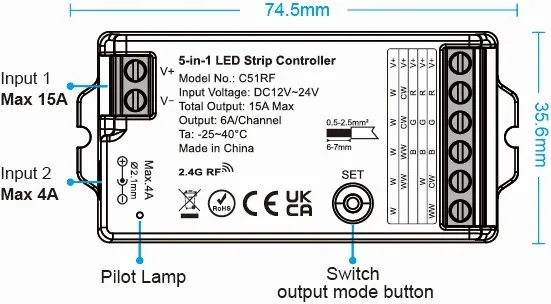

Size

Switch output mode

Press the " SET " key briefly. The indicator lights in different colors will flash to represent different output modes, as detailed in the table below.

C51RF	White Light Flickering	Yellow Light Flickering	Red Light Flickering	Green Light Flickering	Blue Light Flickering
C51RF	Single Color Mode	Dual White Mode	RGB Mode	RGBW Mode	RGB+CCT Mode (Default Mode)

Auto-transmitting diagram

One strip controller can transmit the signals from the remote control to another controller within 30m, as long as there is a strip controller within 30m,the remote control distance can be limitless.

Work with remote control

Compatible with these remote controls (purchased separately): RC03RFB, RC09RFB

For instructions on how to pair the remote control and LED controller, please refer to the remote control details page.

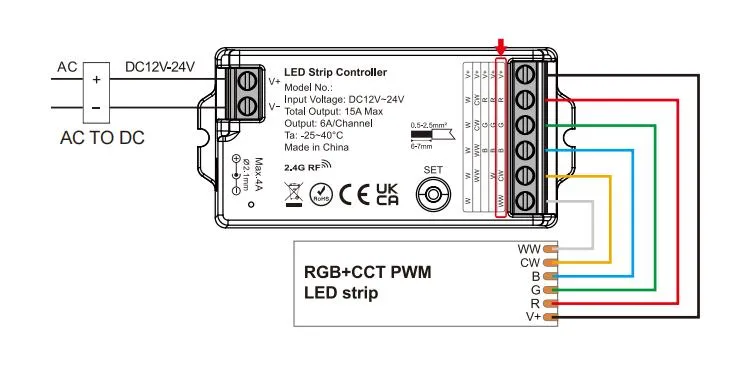

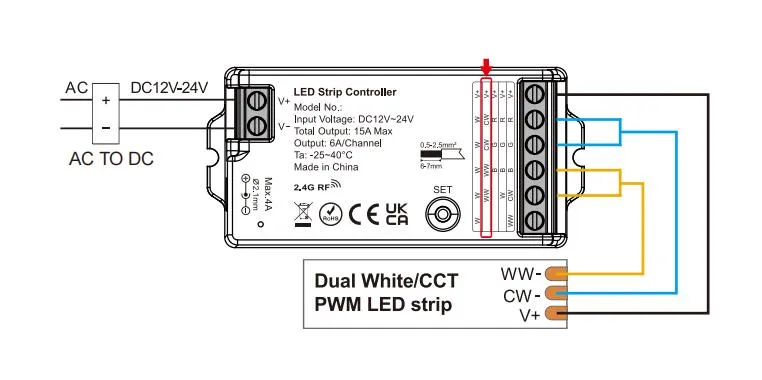

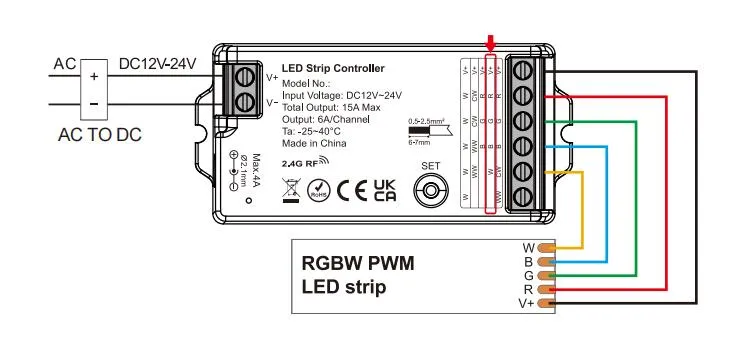

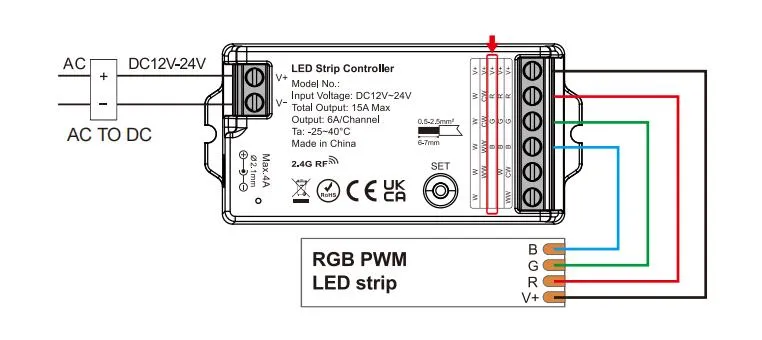

Controller connect to LED strip diagram

△The controller should be installed as close to the power supply as possible. In particular, when the current exceeds 10A, the wiring length between the power supply and the controller must not exceed 1 meter.

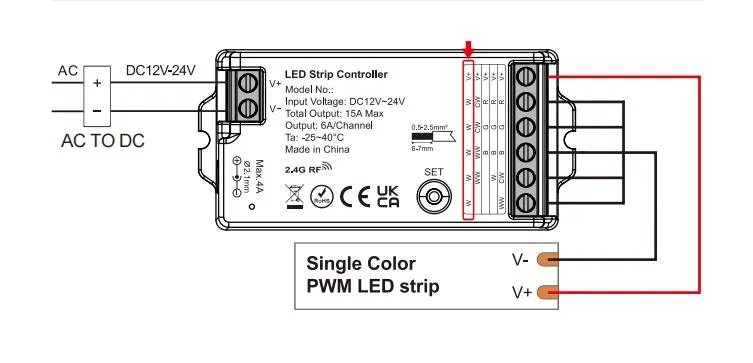

1. Connect to Single Color LED strip diagram
