Description
▶This LED controller uses 2. 4GHz RF wireless control and must be paired with the remote control. The control distance between these devices is within 30m.
▶Connect the DC5-24V CCT LED strip. You can adjust the brightness from 1% to 100% and the color temperature from 2700K (warm white) to 6500K (cool white).
▶Smart phone APP control(Need Tuya 2. 4G gateway).
▶Supports third party voice control(Need Tuya 2. 4G gateway).
▶Compatible remote control model no. : RC02RFB, RC08RFB(purchased separately).
Parameters
|
Product Name |
Dual White LED Controller |
|
Model No. |
C02RF |
|
Input Voltage |
DC5-24V(5. 5*2. 1mm) |
|
Output |
6A/Channel; Total 12A Max |
|
Working Temperature(Ta) |
-25~40°C |
|
Support |
2. 4GHz RF |
|
Size |
74. 5*35. 6*16. 5mm |
|
Control Distance |
30M |

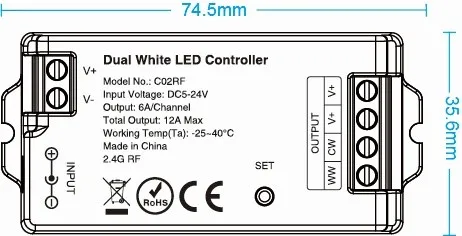

Size

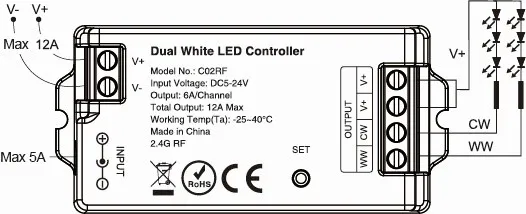

Connection diagram
Input Voltage=Output Voltage

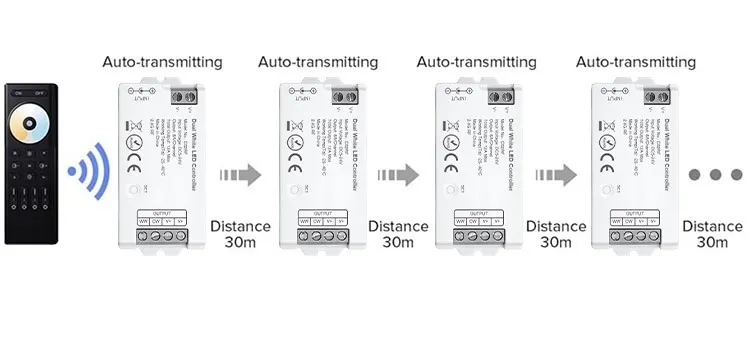

Signal transmitting
One controller can transmit the remote control's signal to another controller. This is possible within a range of 30m. As long as there is a controller within this range, the remote control range can be extended indefinitely.
Linking with remote control
First way:
Press and hold the "SET" button for more than 3 seconds until the light flickers once, indicating that the controller has entered linking mode. Next, quickly press the any zone "ON" button on the remote control 3 times. If the light flickers 3 times in response, this confirms that the linking process was successful.
Second way:
When the light is on, turn it off and wait 10 seconds, then turn it back on. Quickly press any zone "ON" button on the remote 3 times within 5 seconds. The light will flash 3 times, indicating a successful pairing.
Attention
1. Please check whether the input voltage of the constant voltage power supply is in accordance with the controller, and please check the connection of both the cathode and anode.
2. The working voltage is DC5~24V,the controller will be broken if the voltage is higher than 24V.
3. Non-professional user cannot dismantle the controller directly, otherwise, it may cause fire and electric shock.
4. The working temperature(Ta)is-25~40°C; Do not use the device to direct sunlight, moist and other high temperature area.
5. Please do not use controller around the mental area and high magnetic field, otherwise,it will badly affect the control distance.
6. When the device load to 12A,wire diameter must be over 1. 5mm².
7. When the device load over 10A , the connecting cable must be shorter than 40cm long from DC port to LED strip.
