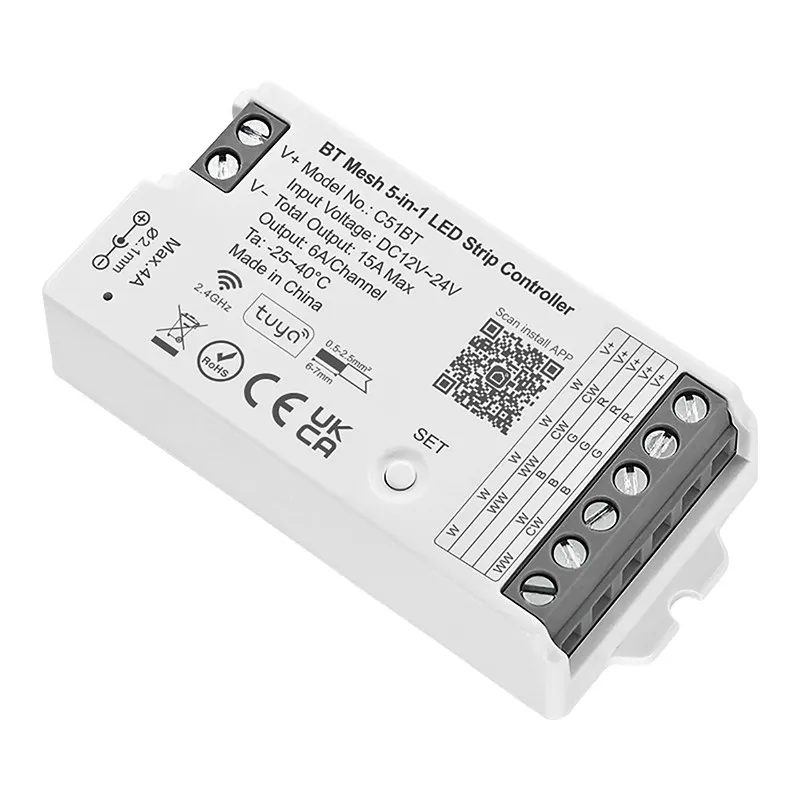

Bluetooth Mesh 2.4G LED Strip Controller

Bluetooth Mesh 2.4G LED Strip Controller

Details
2.4GHz Bluetooth Mesh LED Controller | Single Color/ CCT/ RGB/ RGBW/ RGBCCT 5 Output Modes | Connect to Single Color/ CCT/ RGB/ RGBW/ RGBCCT LED Strip | Anti-interference | APP Control | Bluetooth Wireless Control | 2.4G Wireless Transmission Technology | Support Remote Control(control distance 30m) | Support Third Party Voice Control (need Tuya Bluetooth Mesh gateway) | Brightness Adjustable/ Color Temp Adjustable(2700K-6500K) / 16 Millions of Colors to Choose | Easy Install, Low Power | Overheating protection | For Home & Commercial Smart Lighting.
Category
LED Controller
Share to
Send Inquiry
Description
Technical Parameters

Description



2.4GHz Bluetooth Mesh LED Controller | Single Color/ CCT/ RGB/ RGBW/ RGBCCT 5 Output Modes | Connect to Single Color/ CCT/ RGB/ RGBW/ RGBCCT LED Strip | Anti-interference | APP Control | Bluetooth Wireless Control | 2.4G Wireless Transmission Technology | Support Remote Control(control distance 30m) | Support Third Party Voice Control (need Tuya Bluetooth Mesh gateway) | Brightness Adjustable/ Color Temp Adjustable(2700K-6500K) / 16 Millions of Colors to Choose | Easy Install, Low Power | Overheating protection | For Home & Commercial Smart Lighting.



Parameters



Product Name

2.4GHz Bluetooth Mesh LED Controller

Model No.

C51BT

Input Voltage

DC12V~24V(5.5*2.1mm)

Output

6A/ Channel (Total Output Max: 15A)

Working Temperature(Ta)

-25~40°C

Size

74.5*35.6*16.5mm

Output Mode

Single Color / CCT / RGB / RGBW / RGBCCT

RF

2.4GHz

RF Control Distance

30M

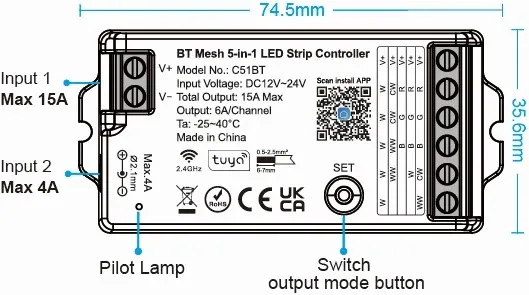

Size



32



Switch output mode



Press the " SET " key briefly. The indicator lights in different colors will flash to represent different output modes, as detailed in the table below.



C051BT

White Light Flickering

Yellow Light Flickering

Red Light Flickering

Green Light Flickering

Blue Light Flickering

Single Color Mode

Dual White Mode

RGB Mode

RGBW Mode

RGB+CCT Mode (Default Mode)



Auto-transmitting diagram



One strip controller can transmit the signals from the remote control to another controller within 30m, as long as there is a strip controller within 30m, the remote control distance can be limitless.



33



Work with remote control



Compatible with these remote controls (purchased separately): RC03RFB and RC09RFB.

For instructions on the remote control functions and how to pair the controller with the remote, please refer to the remote control details page. If you require more product information, please feel free to contact us at any time and we will provide you with detailed instructions.
