Details
The WiFi&BT 5-in-1 LED controller supports dual-mode WiFi and Bluetooth for stable, reliable control. It offers Single Color, CCT, RGB, RGBW and RGBCCT output modes, compatible with corresponding LED strips. The controller works with the our RF remote(purchased separately), Tuya Smart Life APP and voice assistants like Alexa.
Category
LED Controller
Share to
Send Inquiry
Description
Technical Parameters

Description



The WiFi&BT 5-in-1 LED controller supports dual-mode WiFi and Bluetooth for stable, reliable control. It offers Single Color, CCT, RGB, RGBW and RGBCCT output modes, compatible with corresponding LED strips. The controller works with the our RF remote(purchased separately), Tuya Smart Life APP and voice assistants like Alexa.



Parameters



Product Name

2. 4GHz WiFi&BT LED Strip Controller

Model No.

C51W

Input Voltage

DC12V~24V(5. 5*2. 1mm)

Output

6A/Channel (Total Output Max: 15A)

Working Temperature(Ta)

-25~40°C

Size

74. 5*35. 6*16. 5mm

Output Mode

Single Color / CCT / RGB / RGBW / RGBCCT

Communication Protocol

WiFi+2. 4GHz

RF Control Distance

30M

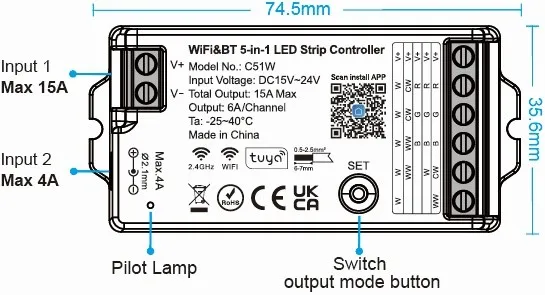

Size



29



Switch output mode



Press the " SET " key briefly. The indicator lights in different colors will flash to represent different output modes, as detailed in the table below.

C051W

White Light Flickering

Yellow Light Flickering

Red Light Flickering

Green Light Flickering

Blue Light Flickering

Single Color Mode

Dual White Mode

RGB Mode

RGBW Mode

RGB+CCT Mode (Default Mode)



Suggestion: Complete the network distribution of the equipment first, then adjust the output mode Pilot lamp.



Indicating light instruction:

Red light always-on

Green light always-on

Red light blinking

Blue light always-on

Disconnected from network

Networking successfully

Waiting for smart link

WiFi router disconnected but still controllable

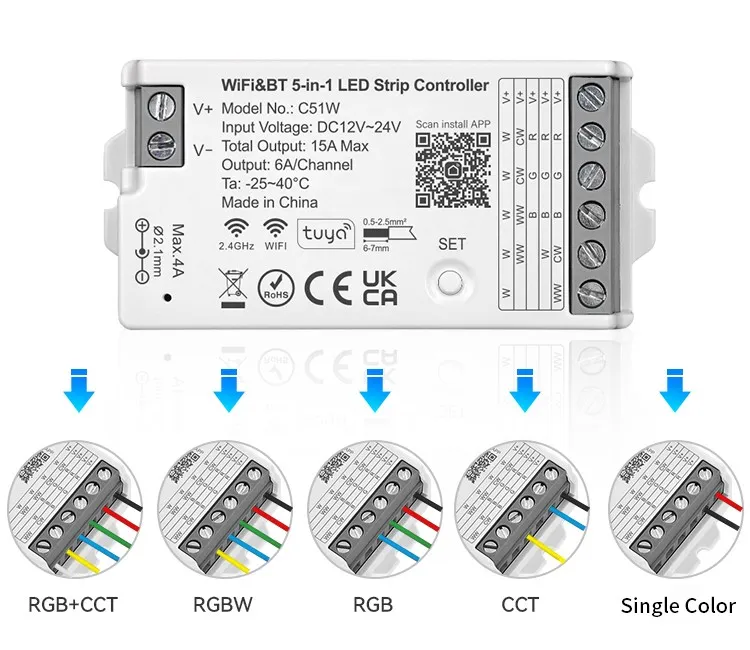

Connection diagram



Compatible with single color LED strip, CCT LED strip, RGB LED strip, RGBW LED strip and RGBCCT LED strip.

30



Auto-transmitting diagram



One strip controller can transmit the signals from the remote control to another controller within 30m, as long as there is a strip controller within 30m, the remote control distance can be limitless.



31



Work with remote control



Compatible with these remote controls (purchased separately):

RC01RFB, RC02RFB, RC03RFB, RC07RFB, RC08RFB, RC09RFB

Please refer to the remote control details page for instructions on how to pair the remote control and LED controller.
