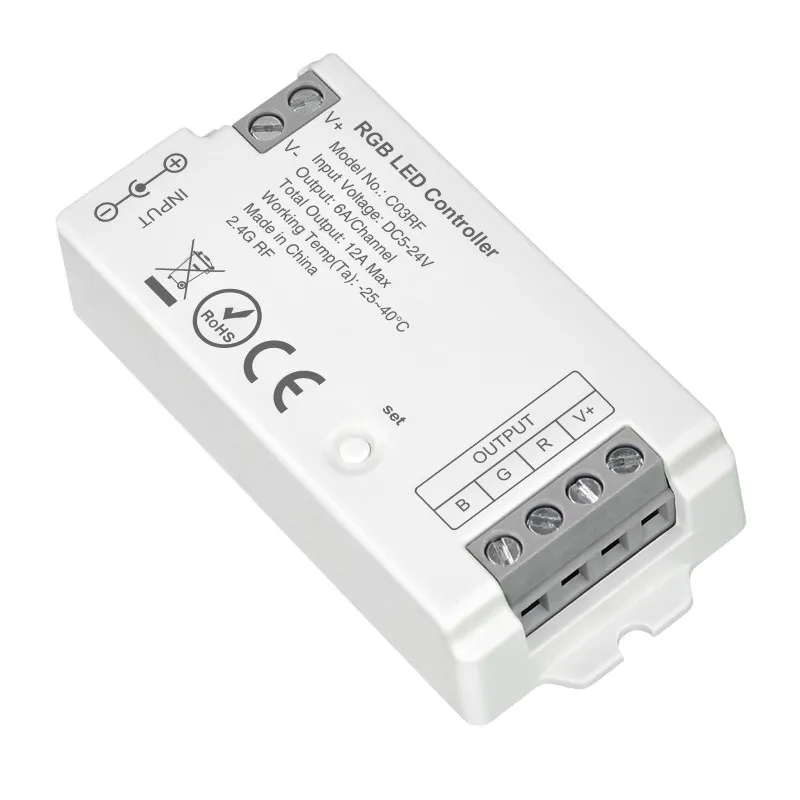

Description
▶This RGB LED controller works with 2.4 GHz RF remote control. It communicates with the remote control via the 2.4 GHz band. The control distance is within 30m.
▶Connect to the low voltage RGB LED strip lights. Supports 16 million colors, adjustable saturation and brightness. This smart LED controller gives you effortless control over any 5-24 V LED lighting system, allowing you to create the perfect atmosphere for any occasion.
▶Color temperature adjustment: Mix red, green and blue light to adjust.
▶Smartphone app control and third-party voice control supported (Tuya 2.4G gateway required).
Parameters
|
Product Name |
RGB LED Controller |
|
Model No. |
C03RF |
|
Input Voltage |
DC5-24V(5.5*2.1mm) |
|
Output |
6A/Channel; Total 12A Max |
|
Working Temperature(Ta) |
-25~40°C |
|
Support |
2.4GHz RF |
|
Size |
74.5*35.6*16.5mm |
|
Control Distance |
30M |

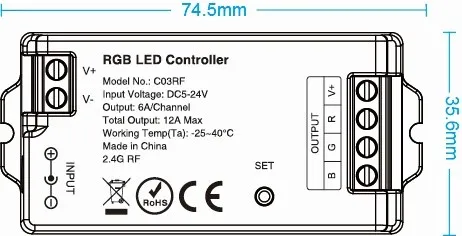

Size

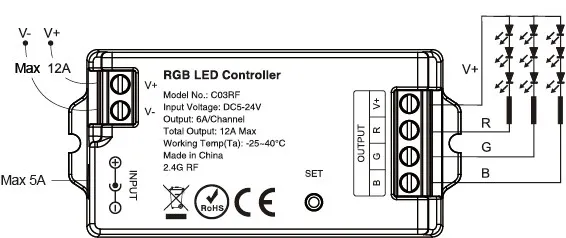

Connection diagram
Input Voltage=Output Voltage

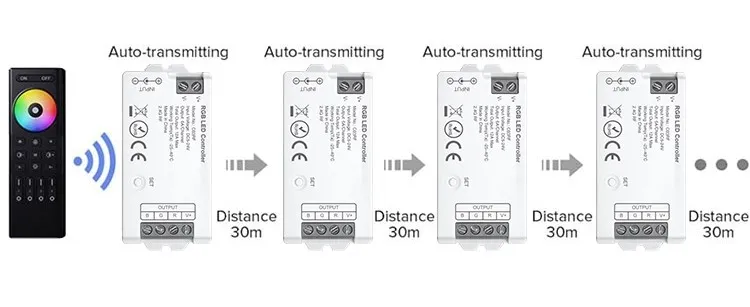

Signal transmitting
One controller can transmit the signals from the remote control to another controller within 30m, as long as there is a controller within 30m,the remote control distance can be limitless.

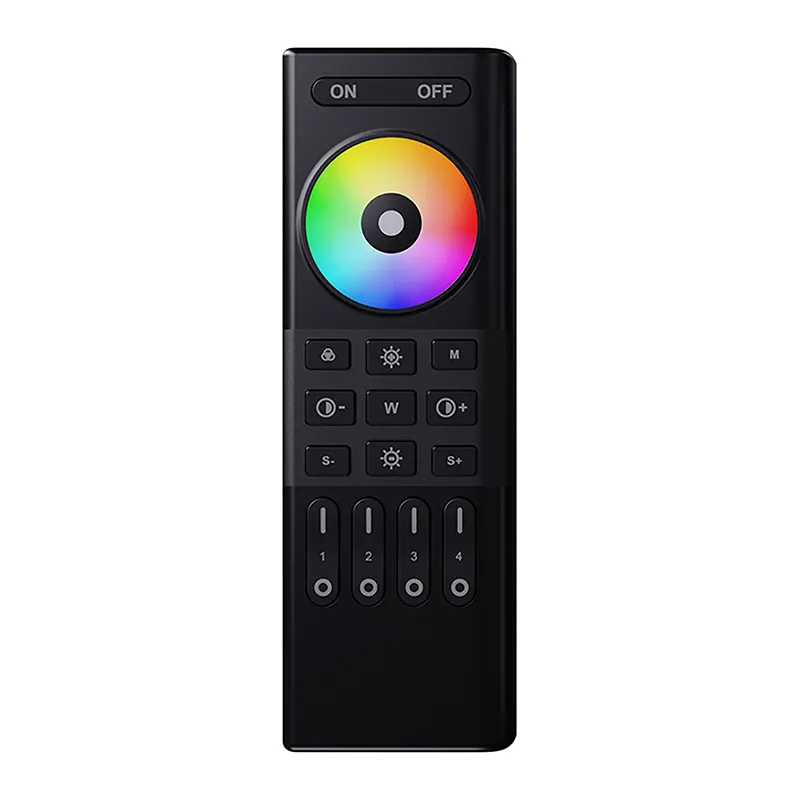

Compatible remote control
Compatible with these remote controls: RC03RFB, RC09RFB (purchased separately). For pairing method and more details, please read the remote control detail page.
