4-Zone DIM CCT Remote Control

This 4-channel RF remote control is designed for tunable white (CCT) LED lighting systems, offering independent control of four separate lighting zones. Each channel can be paired with one or more CCT LED controllers, allowing users to adjust color temperature (warm to cool white) and brightness individually per channel. 30m Long-range RF transmission (2.4GHz)-works through walls and obstacles. Our products are typically used for multi-room residential lighting, open-plan offices with separate task zones, hospitality environments, and retail displays requiring different white tones per zone.

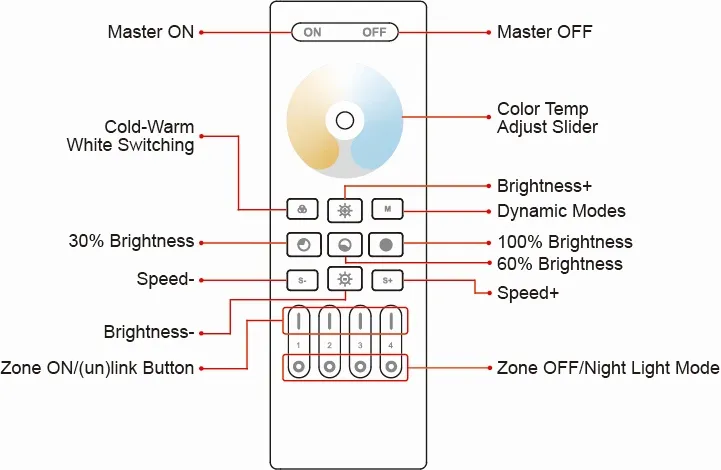

Press the button to turn ON all linked device.

Press the button to turn OFF all linked devices.

Touch the slider to adjust the color temperature from warm white to cold white.

Press the button to switch the cool white, nature white and warm white repeatedly.

Press the button to switch the dynamic modes repeatedly.

Press the button to dim the brightness up.

Press the button to dim the brightness down.

Press the button to get the 30% brightness.

Press the button to get the 60% brightness.

Press the button to get the 100% brightness.

Lower the dynamic mode speed.

Accelerate the dynamic mode speed.

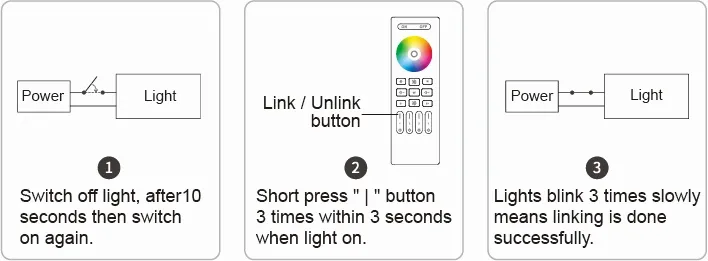

①Switch off the light and then switch it on again after 10 seconds.

②Press the "|" button three times within three seconds when light on.

③The lights will blink three times slowly to indicate that linking has been successful.

▲If the light is not blinking slowly, linking has failed and you will need to follow the above steps again. (Note: Light that have linked can't link again)

You can add an endless numbers of lights to a zone on the 4 channel remote by linking the lights to different zones. This way you are completely flexible in creating different group combinations.
