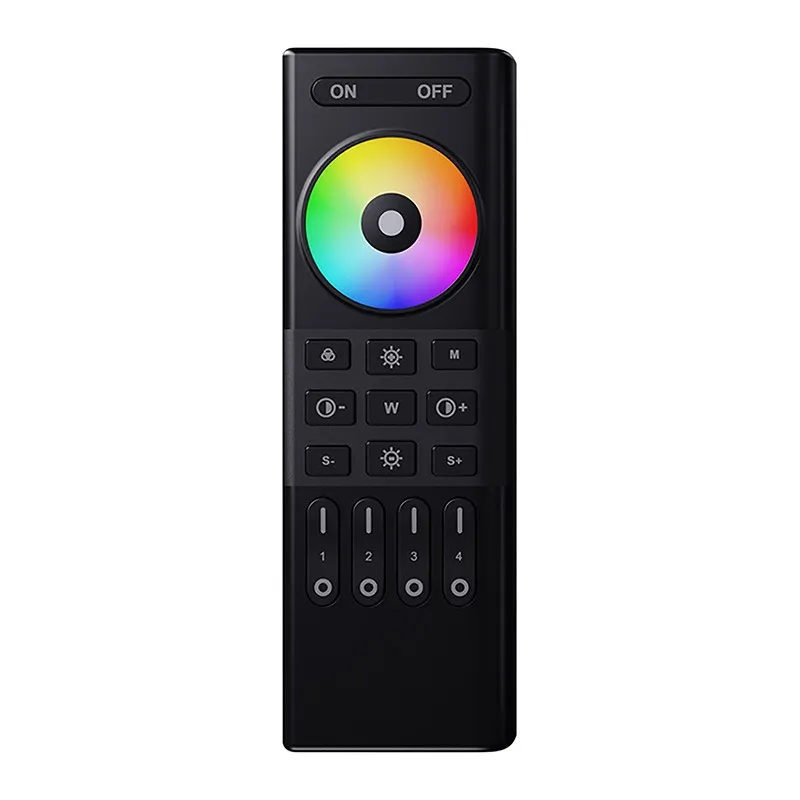

4-Zone RGB RGBW RGBCCT Remote Control

▶16 millions of color to choose from.Dimming,color temperature and saturation adjustment.

▶4-zone, each zone can add limitless quantity controllers.

▶Support group control or separate zone control. One remote can control countless lamps or controllers, but one lamp or controller can only be controlled by five remotes at most.

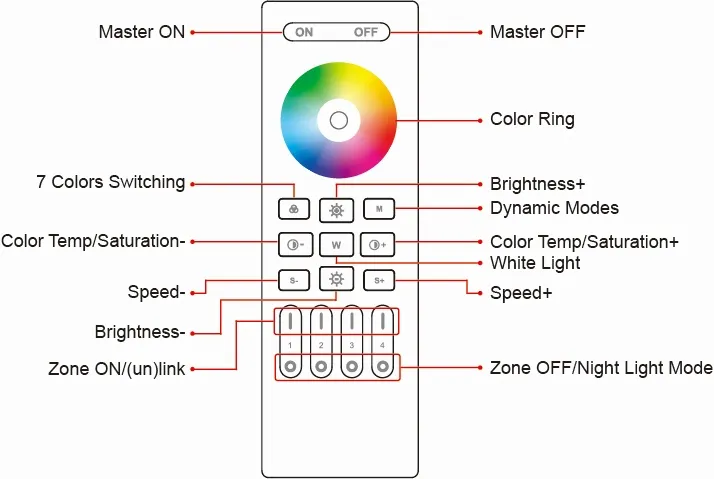

Press the button to turn ON all linked device.

Press the button to turn OFF all linked devices.

Touch the color ring to change the colors.

Press the button to get the white light.

Short press the button to switch the pure colors from orange, yellow,green, cyan,blue, purple and red repeatedly.

Long press the button to switch the pure colors from orange, yellow, green, cyan,blue, purple and red gradually.

Under white light mode, press the button to change the white light to cold white.

Under color light mode, press the button to reduce the saturation.

Under white light mode, press the button to change the white light to warm white.

Under color light mode, press the button to add the saturation.

Press the button to switch the dynamic modes repeatedly.

Press the button to dim the brightness down.

Press the button to dim the brightness up.

Lower the dynamic mode speed.

Accelerate the dynamic mode speed.

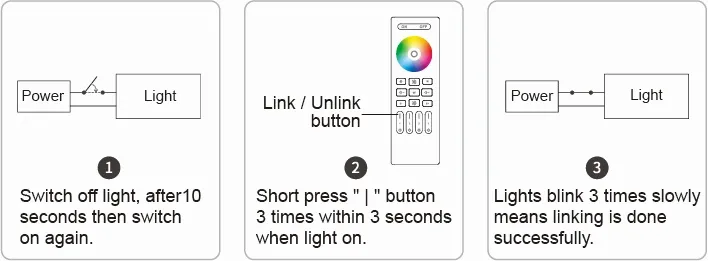

①Switch off the light. Wait 10 seconds. Switch on the light again.

②Short press the " | " button 3 times within 3 seconds when the light is on.

③If the lights blink three times slowly, this means that the linking has been done successfully.

▲If the light is not blinking slowly, the link has failed. Please follow the steps above again. Note: Light that have linked can't link again

You can add an endless numbers of lights to a zone on the 4 channel remote by linking the lights to different zones. This way you are completely flexible in creating different group combinations.
